Industrial Air Treatment Equipment Regenerative , Heatless Desiccant Compressed Air Dryer
  • Industrial Air Treatment Equipment Regenerative , Heatless Desiccant Compressed Air Dryer
  • Industrial Air Treatment Equipment Regenerative , Heatless Desiccant Compressed Air Dryer

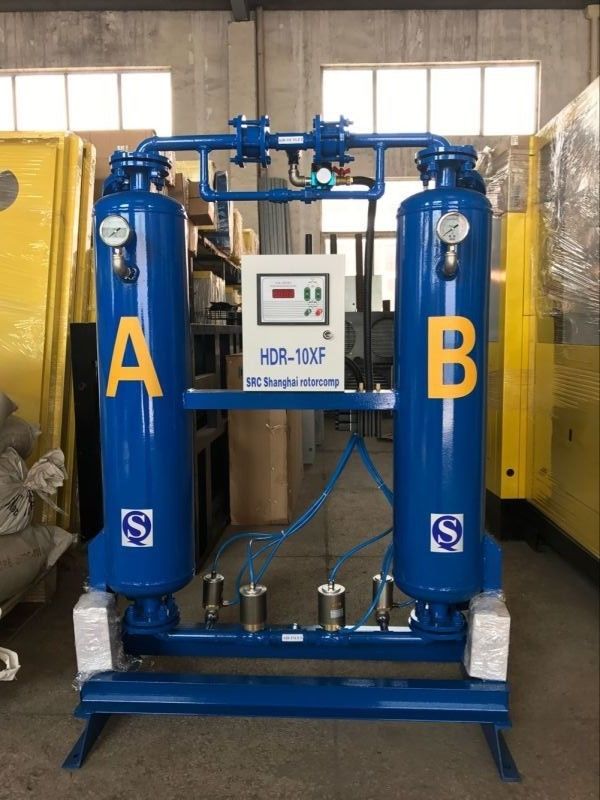

Industrial Air Treatment Equipment Regenerative , Heatless Desiccant Compressed Air Dryer

Place of Origin China
Brand Name Shanghai Rotorcomp
Certification ISO,CE.TUV.BV
Model Number HDR-XF
Product Details
Capacity:
30m3/min
Working Pressure:
6-10Bar
Max.inlet. Temp.:
45℃
Max.Ambient.Temp.:
45℃
Purge Air:
12-15%
Desiccant:
Activated Aluminum &Molecular Siere
Dew Point:
-20- -40℃
Inlet Oil Content:
0.01ppm
Working Period:
4-20Mins
Power:
220-450V/50-60HZ
High Light:

heated desiccant air dryer

,

air treatment plant

Payment & Shipping Terms
Minimum Order Quantity
Min:1set
Price
Negotiable
Packaging Details
exported wooden case
Delivery Time
5-10 working days
Payment Terms
Western Union, T/T, D/A, L/C, D/P
Supply Ability
10,000sets/month
Product Description

Heatless regenerative desiccant adsorption air dryer dew point -20--40℃ less air consumption

Dew point:-20 °C - -40°C

ISO, CE certificated With world-top activated Aluminum & Molecular contents.



1.2m3/min~600m3/min customized 6-10bar pressure with less air consumption.


Features of Heatless desiccant air dryer Air Dryer:


Capacity: 1.2m3/min~160m3/min Working Pressure: ≤10bar
Max.inlet temp: 45°C

Max Ambient Temp:50°C
Min.Ambient Temp: 5°C

Refrigerant:Activated Aluminum &Molecular Siere

Dew Point: -20°C - -40°C


Industrial Air Treatment Equipment Regenerative , Heatless Desiccant Compressed Air Dryer 0

Industrial Air Treatment Equipment Regenerative , Heatless Desiccant Compressed Air Dryer 1


Key benefits of Shanghai rotorcomp desiccant air dryer

  • Longer life span of your equipment and distribution network due to less wear
  • Greater productivity and lower maintenance costs thanks to less breakdowns
  • Multiport inlet and outlet which ensures fast and easy installation
  • Higher final product quality
  • Increased reliability and reduced risk for leaks
  • Energy savings with lower pressure drops
  • Pressure dew point sensor



Shanghai Rotorcomp Heatless Desiccant Air Dryers provide constant -40 °C pressure dewpoint.These dryers are designed to supply clean and very dry compressed air for critical applications.Pre-filters and after filters are supplied together with Özen Heatless Desiccant Air Dryers to keep the air stream clean and maintain the integrity of the desiccant medium. The so special valves and desiccant provide lowest pressure drop.


Thet win towers at HDR Desiccant dryers with high-strength structure and absorbent desiccant provides continuous cooling.


While compressed air drying by leaving moisture at first desiccant bed, the second desiccant bed simultaneously regenerated with service air to be ready for drying process.


Regeneration of desiccant at HDR Desiccant Dryers accomplished without use of heat. The wet desiccant bed dried by diverting a small amount of the dry air from the out which is close to atmospheric pressure. The purge flow rate is adjustable to match required dew-point as per outside conditions. The super dry air flows in a counter direction through the wet bed, sweeps all water vapour which absorbed by the desiccant.




ModelCpacity
m3/min
Power KwVoltage
V/50Hz
connectionDimension
L×W×H
Weight Kg
HDR-10XF1.20.85380ZG1″800×400×1360120
HDR-20XF2.41.0380ZG1″800×400×1460180
HDR-30XF3.81.25380ZG1.5″1000×450×1600270
HDR-60XF6.51.5380ZG1.5″1200×500×1950400
HDR-75XF8.51.8380ZG1.5″″1400×600×2000510
HDR-100XF10.72.5380ZG2″1400×600×2090700
HDR-150XF13.52.5380ZG2″1400×600×2140740
HDR-200XF183.0380DN651400×600×2200780
HDR-250XF254.0380DN801670×650×24351180
HDR-300XF356.5380DN1001670×650×25661760
HDR-350XF458.8380DN1001750×750×27002200
HDR-400XF5510.2380DN1251800×750×27552600
HDR-450XF6513380DN1251900×700×30703100
HDR-500XF8513380DN1502620×1120×30704100
HDR-550XF11013380DN1503100×1650×32005200
HDR-600XF16013380DN2003240×1770×31906000
1. The above parameters and color are designed according to customer needs, the parameters are for reference only, the final parameters of the drawings shall prevail;
2. According to user requirements and needs, to join way: air/water cooling, oil content, weight, appearance size according to the need to design, to the final order and the technical agreement shall prevail;
3. 1 year warranty



Industrial Air Treatment Equipment Regenerative , Heatless Desiccant Compressed Air Dryer 2
