Energy Conservation Rotary Screw Air Compressor With High Efficient Centrifugal Fan
  • Energy Conservation Rotary Screw Air Compressor With High Efficient Centrifugal Fan

Energy Conservation Rotary Screw Air Compressor With High Efficient Centrifugal Fan

Place of Origin GERMAN
Brand Name Shanghai Rotorcomp
Certification ISO.TUV,CE,GS
Model Number LGFD-11
Product Details
Product Name:
Rotary Screw Air Compressor
Capacity(m3/min):
8 Bar 1.79
Power(kw):
11
In/outlet:
G1
Noise:
70dB
Dimension:
950×800×1290 MM
Weight:
370KG
Feature:
Long Life Cycle
High Light:

industrial screw compressor

,

screw drive air compressor

Payment & Shipping Terms
Minimum Order Quantity
negotiate
Price
negotiate
Packaging Details
Plywood case for export package
Delivery Time
5-15 Working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100-2000sets/Month
Product Description

Energy Conservation Rotary Screw Air Compressor With High Efficient Centrifugal Fan



Advantages of our new EVO technology



1. New ROLLING PROFILE– ultimate efficiency with

reduced noise

2. Long life cycle due to increased bearing dimensions

and wear-free ROLLING PROFILE

3. Wide operating pressure range from 5 to 15 barg

Air end –

4. “Made in Germany”

5. Quality assurance – bench test of every air end

before leaving our factory

6. Easy application selection with our new

ROTORCOMP-SIZING AIR software

7. Highest flexibility for your package design

• Suitable for all types of drive driving motors

• Drive options: Belt drive, direct drive, internal

gear drive

• Base and face-flange mounting



About US



Shanghai Rotorcomp air compressor is an economic air compressor package, with the benefit of a heavy duty working design, low maintenance cost and internal components that are easy exchangeable. LGFD model is flexible for air cooled and water cooled industrial applications.
This series comes in a belt driven motor type (7.5 – 75kw) and a direct driven model (18.5 – 355kw), with working pressures from 7.5 to 13 bar(g), and with Free Air Delivery from 1.2 – 62 m3/min.



Features of

  1. Compact and Simple Design
  2. Microprocessor Control Panel
  3. 2 in 1 Intake Valve Design with Check Valve
  4. Superior Larger 5 : 6 Profile Airend Design
  5. 3 Stage Oil Separation and Low Oil Carryover (2-3 ppm)
  6. Larger Cooler for High Ambient Temperature Area Operation
  7. IP55 High Efficiency Main Motor
  8. 1 : 1 Motor Belt/Direct Couple Airend Design
  9. VSD Inverter Control Standard Configuration Option

Our compressors bring you outstanding performance, flexible operation and the highest productivity, while minimizing the total cost of ownership. Built to perform even in the harshest environments, our products keep your production running smoothly.
Offering best-in-class performance and total reliability, our products answer your advanced needs.
Industry-leading Free Air Delivery.
The lowest power consumption and noise emission in the industry.
Excellent-quality.
Easy monitoring and maintenance.



To achieve sustainable development



Extra low noise emission



Develop by Jersey North America Development Center--- low noise SKY air end

Heavy machinery design

Direct driven and no gear noise

Low-speed centrifugal fan and inverter oil cooling fan

Equipped with air intake Muffler

World class lowest noise emission



Energy conservation



Each set of air compressor meets national energy conservation standards

Rotorcomp high efficient air end made in Germany

High efficient motor engine

Direct drive and no gear energy saving loss

High efficient centrifugal fan

Inverter oil cooling fan and suction cooling down

Germany suction valve



High reliability



World class R&D team---provide the powerful safeguard to product quality

"Rotorcomp" rotor line, cylinder bearing or taper-roller bearing integrative design, bearing lifespan >>100,000 hours

Direct drive, large rotor and slow rotation speed

Large size fan motor

Five years warranty for main machine, two years warranty for motor and radiator

Patent air valve and patent cooler

Coolant and three filters imported from Germany

First class production process and inspection equipment, realize the designer’s philosophy perfectly



Parameter of



Model Capacity(m3/min)* Power(kw) In/outlet Noise Dimension Weight
8bar 10bar 13bar 15bar Motor Motor(Fan) dB(A)** L×W×H in mm kg
LGFD-5.5 0.87 0.75 0.61 0.53 5.5 0.09 G1 69 900×750×900 245
LGFD-7.5 1.2 1.04 0.9 0.8 7.5 0.09 G1 69 900×750×900 250
LGFD-15 2.4 2.15 1.84 1.66 15 0.18 G1 70 950×800×1290 480
LGFD-18.5 3 2.9 2.52 2.02 18.5 0.37 G1 71 1250×960×1300 730
LGFD-22 3.51 3.16 2.71 2.45 22 0.37 G1 71 1250×960×1300 750
LGFD-30 4.88 4.32 3.64 3.25 30 0.75 G1-1/4 71 1440×1006×1296 1200
LGFD-37 5.83 5.21 4.44 4.01 37 0.75 G1-1/4 73 1440×1006×1296 1350
LGFD-45 7.08 6.3 5.43 4.94 45 1.1 G1-1/4 75 1440×1006×1296 1400
LGFD-55 9.32 8.33 7.05 6.31 55 1.1 G2 75 1600×1200×1650 1600
LGFD-75 12.31 11.13 9.61 8.74 75 1.1 G2 75 1600×1200×1650 1750
LGFD-90 16.45 14.26 11.72 10.8 90 2.2 G2 75 2000×1580×1790 2600
LGFD-132 20.26 17.48 14.25 13.05 110 2.2 G2 78 2500×1700×1900 3000
LGFD-180 23.08 20.54 17.65 16.05 132 2.2 G2 78 2500×1700×1900 3150
Note:
1. The above parameters and color are designed according to customer needs, the parameters are for reference only, the final parameters of the drawings shall prevail;
2. According to user requirements and needs, to join way: air/water cooling, oil content, weight, appearance size according to the need to design, to the final order and the technical agreement shall prevail;
  1. Frequency converters (optional).
  2. 2 years warranty, 5 years warranty for air end

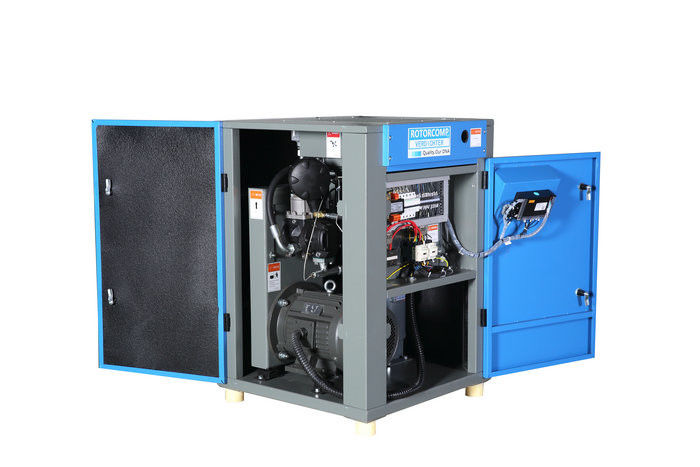

Energy Conservation Rotary Screw Air Compressor With High Efficient Centrifugal Fan 0
