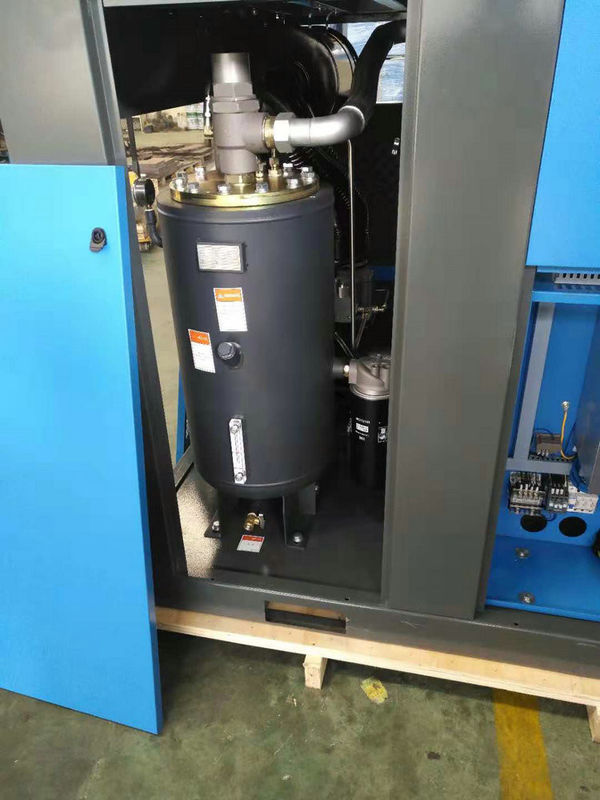

Powerful 15 Hp Rotary Screw Compressor , Blue Electric Screw Compressor
  • Powerful 15 Hp Rotary Screw Compressor , Blue Electric Screw Compressor

Powerful 15 Hp Rotary Screw Compressor , Blue Electric Screw Compressor

Place of Origin Germany
Brand Name Shanghai Rotorcomp
Certification ISO.TUV,CE,GS
Model Number 15 Hp Rotary Screw Compressor
Product Details
Name:
15 Hp Rotary Screw Compressor
Advantage:
Powerful
Advanced Design:
Design In Germany
Inverter:
Danfoss
Inverter Motor:
IP55, VSD IE3 Super High Efficient Motor
Color:
Customized
Air Filter:
German Mann
Oil Filter:
German Mann
Oil Separator:
German Mann
High Light:

rotary screw type air compressor

,

oil injected screw compressor

Payment & Shipping Terms
Minimum Order Quantity
Min.:1set
Price
Negotiable
Packaging Details
Exported Wooden Package
Delivery Time
12-15 working days
Payment Terms
Western Union, T/T, L/C, D/P, D/A
Supply Ability
3,000 sets/per month
Product Description

Powerful 15 Hp Rotary Screw Compressor , Blue Electric Screw Compressor



electrical control system



High quality and reliable Schneider electrical components to ensure long-term trouble-free operation of the machine, low energy consumption design, reduce operating costs

Advantages:

1. World-leading "Made in Germany" Rotorcomp screw air end
2,25-30% energy saving than normal VSD compressor
3. wider 15-60hz adjustable-speed drive system
4. Intelligent touchable PLC control system
5. Double higher efficient VSD energy-saving motors in IE3 CE&MEPS
6. Unique driving guard system
7. ISO, TUV, GA, CE,SGS certificates





Shanghai rotorcomp Variable speed drive Screw Air Compressor adapting the amount of free air delivered to compressed air demand is the most economical operating method where demand for compressed air fluctuates considerably or where the stored volume is very small or where operating below peak load.


The benefits of rotorcomp VSD air screw compressor

>Smooth starts and stops within seconds
>Continuous volume flow regulation from 25-100%
>Adjustable-speed drive from 15-60hz
>minimization of wear and maintenance costs
>No power-peaks during start-up
> nearly no idling



Reduce Energy Consumption

The costs of power consumption account for 70% or more of all costs during the operation. The electric charges of running air compressor account for more than 40% of all the electric charges in the factory.

The requirement of compressed air fluctuates violently in different time every day, different weeks, or different months every year. The range of fluctuation is 40% to 80%, Rotorcomp adjustable-speed drive screw compressor can meet the user’s requirement exactly. When the user needs less air delivery, Variable frequency inverter can reduce the capacity and reduce the power consumption at the same.









Model Air flow(m3/min)* Power(kw) In/Outlet Noise Dimension Weight
8bar 10bar 13bar 15bar Motor Motor(Fan) dB(A)** L×W×H in mm kg
LGFD-5.5 VP 0.22-0.87 0.19-0.75 0.16-0.61 0.14-0.53 5.5 0.09 G1 69 900×750×900 255
LGFD-7.5 VP 0.30-1.20 0.26-1.04 0.23-0.90 0.2-0.80 7.5 0.09 G1 69 900×750×900 260
LGFD-11 VP 0.45-1.79 0.40-1.58 0.35-1.32 0.3-01.17 11 0.18 G1 70 950×800×1290 390
LGFD-15 VP 0.60-2.40 0.55-2.15 0.46-1.84 0.42-1.66 15 0.18 G1 70 950×800×1290 400
LGFD-20 VP 0.75-3.00 0.73-2.90 0.65-2.52 0.55-2.02 18.5 0.37 G1 71 1250×960×1300 755
LGFD-22 VP 0.88-3.51 0.80-3.16 0.68-2.71 0.62-2.45 22 0.37 G1 71 1250×960×1300 780
LGFD-30 VP 1.25-4.88 1.10-4.32 0.95-3.64 0.82-3.25 30 0.75 G1-1/4 71 1440×1006×1296 1250
LGFD-37 VP 1.46-5.83 1.31-5.21 1.11-4.44 1.02-4.01 37 0.75 G1-1/4 73 1440×1006×1296 1400
LGFD-45 VP 1.77-7.08 1.58-6.30 1.36-5.43 1.25-4.94 45 1.1 G1-1/4 75 1440×1006×1296 1450
LGFD-55 VP 2.33-9.32 2.09-8.33 1.77-7.05 1.58-6.31 55 1.1 G2 75 1600×1200×1650 1650
LGFD-75 VP 3.1-12.31 2.8-11.13 2.44-9.61 2.19-8.74 75 1.1 G2 75 1600×1200×1650 1800
LGFD-90 VP 4.2-16.45 3.6-14.26 3.0-11.72 2.70-10.8 90 2.2 G2 75 2000×1580×1790 2700
LGFD-110 VP 5.1-20.26 4.4-17.48 3.6-14.25 3.3-13.05 110 2.2 G2 78 2500×1700×1900 3100
LGFD-132 VP 5.8-23.08 5.2-20.54 4.5-17.65 4.2-16.05 132 2.2 G2 78 2500×1700×1900 3250
Note:
1. The above parameters and color are designed according to customer needs, the parameters are for reference only, the final parameters of the drawings shall prevail;
2. According to user requirements and needs, to join way: air/water cooling, oil content, weight, appearance size according to the need to design, to the final order and the technical agreement shall prevail;

3. Frequency Inverters (ABB&SIEMENS customized).

4. 1 year warranty, 5 years warranty for air end
