Automatic Portable Rotary Screw Air Compressor , Small Screw Air Compressor
  • Automatic Portable Rotary Screw Air Compressor , Small Screw Air Compressor

Automatic Portable Rotary Screw Air Compressor , Small Screw Air Compressor

Place of Origin China
Brand Name Shanghai Rotorcomp
Certification ISO.TUV,CE,GS
Model Number LGCD-45
Product Details
Name:
Portable Rotary Screw Air Compressor
Power:
45KW
Operate:
Automatic
Cooling Type:
Air Cooling
Noise Level:
≤70dB(A)
Cooling Air Flow:
9800m3/hr
Type:
Small Screw Air Compressor
Lubricating Oil Volume:
10L
High Light:

screw style air compressor

,

compact screw compressor

Payment & Shipping Terms
Minimum Order Quantity
Negotiation
Price
Negotiation
Packaging Details
Exported Wooden Package
Delivery Time
15-20 working days
Payment Terms
Western Union, T/T, L/C, D/P, D/A
Supply Ability
3,000 sets/per month
Product Description

Automatic Portable Rotary Screw Air Compressor , Small Screw Air Compressor



Portable Rotary Screw Air Compressor Introduction



1 Tooth root shape innovation - tooth root is a key factor impact the efficiency of gas produce, problem-solving method is substantially active and passive parts of the rotor tooth root technological shape revolution, SEC achieve historic leap through select the computer software cutting equation software. This SEC core technology have been far ahead in the business field.

2, length, diameter innovation - optimized twin-screw rotor length: diameter ratio, improve overall work through shortening the distance between both ends of the rotor, make it at higher pressure have a higher volumetric efficiency and significantly reduced by to the oscillation, to reduce mechanical noise and prolong life.

3, Wisdom leading technology, rather than led by technology - the essence of technology is not the crowd seeking imitate, but rather follow itself., with several high-tech fusion of thinking (optimization) improved to achieve energy saving, environmental protection these two new breakthroughs results, and official leading the new generation of full sail air compressor since 5:6 gear asymmetric line rotor launch.



Portable Rotary Screw Air Compressor Feature



  1. Air end with high-efficiency
  2. High quality CE Certificate industrial electric motors. ISO,CE,UL Certificate

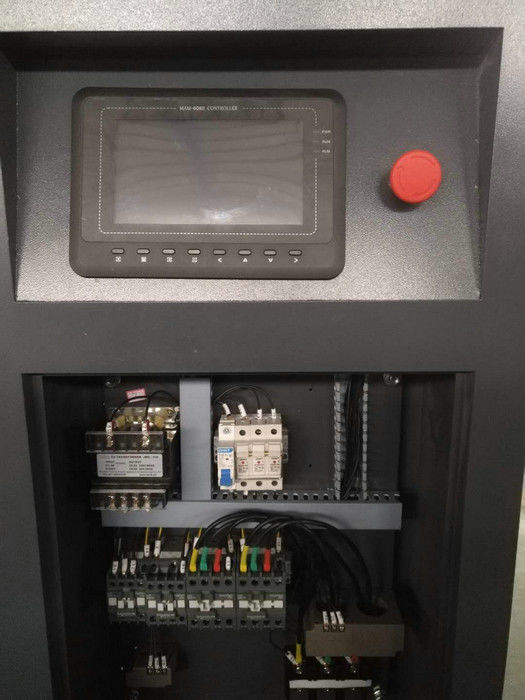

  3. Easy to use and read LCD control panel
  4. High temperature, high pressure and anti-rotation shutdown
  5. Energy efficient operation
  6. 5 micron, water-resistant air filtration material
  7. 1year full machine warranty,3years air end warranty.

45KW air cooling compressor parameters



ITEM UNIT MODEL
LGCD-45
Free air delivery m3/min 7.70 7.60 7.00 5.80
Max. working pressure MPa 0.7 0.8 1.0 1.3
Compressor type   Oil inject screw compressor
Cooling type   Air cooling
Driven type   Direct driven
Inlet status Temperature ≤45
Pressure MPa Atmospheric pressure
Relative humidity   ≤90%
Noise Level dB(A) ≤72
Residual oil content ppm ≤2
Drive rotor speed rpm 2970 2970 2970 2970
Compressed air outlet temperature Ambient temperature+10
Cooling air flow m3/hr 9800
Control mode   Intelligent controller
Safety valve set pressure MPa 0.77 0.88 1.10 1.43
Lubricating oil volume L 30
Lubricating oil brand   ROTORCOMP
Compressed air outlet connection   G1-1/2
Dimension L mm 1500
W mm 1000
H mm 1320
Net Weight kg 780
Motor Model   Y2200L1-2
Speed rpm 2950
Rated Power KW 45
Service factor   1.2
Protection type   IP23/IP54
Insulation class   F
Startup mode   ʏ-Δ starting
Voltage V 380(Special on request)
Frequency Hz 50(Special on request)
Rated current A 84
Weight of motor kg 312


45KW air compressor main spare parts



No. Item Model Brand
45KW
0 Max. working pressure 0.7 0.8 1.0 1.3
1 Air end 4030200017 4030200017 4030200016 4030200015 ROTORCOMP (China)
2 Motor 4020100072 HEBEI/HUADA
3 Pully 402010008 CPT
4 Coupling 4051000021 OPT (Germany)
5 Intake Valve 4070103001 HONGXING
6 Solenoid valve 4080101002 CKD
7 Minimum pressure valve 4070202002 HONGXING
8 Safety valve 4070304001 4070304002 4070304003 4070304004 YUANTIAN
9 Air filter 4080102002 ROTORCOMP
10 Air filter element 4080102015 ROTORCOMP
11 Oil filter 4080204001 ROTORCOMP
12 Oil separator element 4080306015 ROTORCOMP
13 Oil separator tank 4041201001 ROTORCOMP
14 Cooler 4060500034 ROTORCOMP
15 Cooling fan assembly 4060100031 ROTORCOMP
16 Oil level sight glass 4120400031 ROTORCOMP
17 Solenoid valve 4072000031 HONGXING
18 Controller 4101300131 PLOT
19 Contactor-1 4100900021 SCHNEIDER (France)
20 Contactor-2 4100900081 SCHNEIDER (France)
21 Contactor-3 4100900091 SCHNEIDER (France)
22 Pressure sensor 4100100011 ROTORCOMP
23 Temperature sensor 4100300031 ROTORCOMP
24 Pressure gauge 4100200011 ROTORCOMP


Portable Rotary Screw Air Compressor Spare Parts



Air end (German technology) Rotorcomp

• Higher efficiency and more dependable

• Higher efficiency and more dependable

Air filter (Germany MANN)

• 99.9% dedusting effect, ensuring
dustproof quality of air compressor

Double screw (Sweden SKF)

• High precision, long service life

Three grade air and oil separator
(Germany MANN)

• Built-in highly efficient air and
oil separator core, ensuring oil
content of compressed air below
3PPM

Oil filter (Germany MANN)

• With efficiency 20% higher than
the average

• Filter accuracy up to 9μm



After-sale Service



• Any questions or requests before, during or after sales, we would like to help you any time and will find you the best solution in 24 hours.

• Warranty: One year for the whole machine Genuine spare parts will be provided with best price.

• Over board engineer service is available.



Special Customized Service



1) Full OEM

• Quantity: at least 5 pcs

• In this plan, we will do all the changes (Color, name plate and logo) as your need, and will not charge extra fee.

2) Half OEM

• Quantity: no limit

• Under this program, we can make the necessary alteration (name plate and logo) but we will charge some extra fee for the name plate, as the name plate factory has the MOQ.

3) Logo OEM

• Quantity: no limit

• Only the logo will be changed to yours, and no extra fee will be charged.



Overseas Engineer Service



• We are available to send our engineer for aboard service. Only need you to arrange the accommodation, transportation and translator. Extra cost for each will be discussed based on local price level.
