Direct Driven VSD Screw Compressor Positive Displacement Mechanism
  • Direct Driven VSD Screw Compressor Positive Displacement Mechanism

Direct Driven VSD Screw Compressor Positive Displacement Mechanism

Place of Origin Germany
Brand Name Shanghai Rotorcomp
Certification ISO.TUV,CE,GS
Model Number LGCD-45
Product Details
Name:
VSD Screw Compressor
Advantage:
Powerful
Power:
45KW
Compressor Type:
Direct Driven
Cooling Type:
Air Cooling
Noise Level:
≤70dB(A)
Residual Oil Content:
≤2ppm
Cooling Air Flow:
10200m3/hr
High Light:

vsd air compressor

,

oil injected screw compressor

Payment & Shipping Terms
Minimum Order Quantity
Negotiation
Price
Negotiation
Packaging Details
Exported Wooden Package
Delivery Time
12-15 working days
Payment Terms
Western Union, T/T, L/C, D/P, D/A
Supply Ability
3,000 sets/per month
Product Description

Direct Driven VSD Screw Compressor Positive Displacement Mechanism



High-efficiency Components



Setting the Standard in System Design

The Total Air System incorporates only the highest quality components to ensure that both system efficiency and productivity are maximized-- a high-efficiency compressor room without the hassle, complexity and costs of the traditional compressor room. Total Air System packages come fully equipped with:

• A high-efficiency rotary screw air compressor
• An energy-saving cycling refrigerated air dryer
• A high-efficiency coalescing filter
• A high-efficiency particulate filter
• An integral air receiver storage tank
• Integrated compressor and dryer controls
• Low pressure drop piping



Life time benefits



(Benefits are virtually endless )

• Plug-and-play simplicity--eliminates the leading causes of failure in air systems: incorrect sizing and installation
• Virtually no install costs--eliminates 80% of install time, material and costs
• Integral packaging saves valuable floor space for other uses.
• Lifetime power savings through highly efficient components
• Increased productivity through better air quality-Eliminates water and corrosion resulting in extended tool and equipment life



State-of-the-art Screw Element

  • Original Germany Rotorcomp screw rotors
  •
  • Advanced SAP profile design
  • The material of the rotors is American specialty steel

Superior Sweden SKF element bearings



Premium Efficiency Drive Motor

  • Premium efficiency Totally Enclosed Fan Cooled (TEFC)IP55 motor (Class F insulation) SF1.2 protects against dust and chemicals etc.
  • Long-term stable operation even in harsh environments up to 45℃ (113℉)



45KW VSD air cooling compressor parameters



ITEM UNIT MODEL
LGCD-45
Free air delivery m3/min 1.90-7.60 1.75-7.00 1.45-5.80 1.25-5.00
Max. working pressure MPa 0.8 1.0 1.3 1.5
Compressor type   Oil inject screw compressor
Cooling type   Air cooling
Driven type   Direct driven
Inlet status Temperature ≤45
Pressure MPa Atmospheric pressure
Relative humidity   ≤90%
Noise Level dB(A) ≤72
Residual oil content ppm ≤2
Drive rotor speed rpm 1425-2940
Compressed air outlet temperature Ambient temperature+10
Cooling air flow m3/hr 10200
Control mode   Intelligent controller
Safety valve set pressure MPa 0.88 1.10 1.43 1.60
Lubricating oil volume L 30
Lubricating oil brand   ROTORCOMP
Compressed air outlet connection   G1-1/4
Dimension L mm 1500
W mm 1000
H mm 1320
Net Weight kg 880
Motor Model   Y2200L1-2 YVP
Speed rpm 1425-2940
Rated Power KW 45
Service factor   1.2
Protection type   IP23/IP55
Insulation class   F
Startup mode   Frequency conversion starting
Voltage V 380(Special on request)
Frequency Hz 30-120
Rated current A 84
Weight of motor kg 312

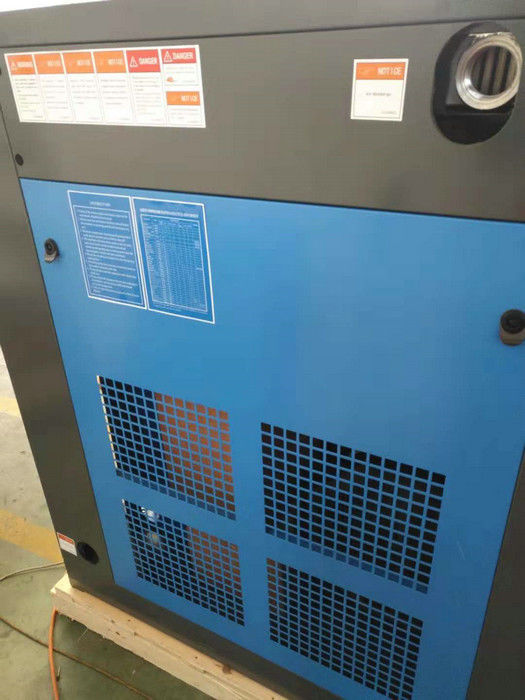

Direct Driven VSD Screw Compressor Positive Displacement Mechanism 0

Direct Driven VSD Screw Compressor Positive Displacement Mechanism 1

Direct Driven VSD Screw Compressor Positive Displacement Mechanism 2



Our Advantage:



Every permanent magnet variable-frequency air compressor produced by Wan Beardsley through sophisticated air compressor vector frequency control technology reaches national grade-2 energy-saving effect, some products have grade-one energy efficiency.

Shanghai rotorcomp screw air compressor is featured by high efficiency, low noise, small vibration, small volume, low expense, convenient maintenance, beautiful appearance and so on,



tThe product uses intelligent module control system and favorable human-machine interface to realize fault self diagnosis, servo-type gas flow automatic adjustment and 24-hour unattended operation, and it belongs to one of the most advanced machine type both home and abroad.

At present, Our PM VSD screw air compressors include: integrated permanent magnet variable-frequency series, non-inductive permanent magnet variable-frequency series, s

ervo permanent magnet variable-frequency series

, low-pressure permanent magnet variable-frequency series,

two-stage compression permanent magnet variable-frequency series,

oil cooling permanent magnet variable-frequency series of screw air compressors,

refrigerated dryer series, adsorption dryer series, combined dryer series, high-efficiency precision dryer, gasholder, etc.

Products are extensively applied to industries like machinery, furniture, textile, chemical fiber, medicine, food, metallurgy, electronics, war industry, environmental protection, etc



Shanghai rotorcomp points of each installation with a variety of sensors can be. the measurement of the running state and the all Chinese display on the screen, simple operation, high reliability. It has the function of self checking root, according to the user demand volume, automatic adjustment of running state. the interests of customers: monitoring and advanced



communication systems make the operation of the compressor is more reliable, higher efficiency and lower maintenance costs, the computer control system to make the machine unload loss minimum, prolong the service life of the compressor.

Shanghai rotorcomp Air System can be installed where you need compressed air. Its low noise operation and integrated air treatment equipment eliminates the need for a separate compressor room. All our compressors are tested and delivered ready for use. The integrated options will reduce installation costs and pressure drops significantly, thus saving additional energy cost.



Shanghai rotorcomp compressors have integrated dryer, filters and oil-water separator available to protect your compressed air network. This quality air expands the life of equipment, increasing efficiency and ensuring quality in your final product.
