High End 132kw Screw Air Compressor , Industrial Rotorcomp Screw Air End

China High End 132kw Screw Air Compressor , Industrial Rotorcomp Screw Air End supplier
High End 132kw Screw Air Compressor , Industrial Rotorcomp Screw Air End supplier High End 132kw Screw Air Compressor , Industrial Rotorcomp Screw Air End supplier High End 132kw Screw Air Compressor , Industrial Rotorcomp Screw Air End supplier

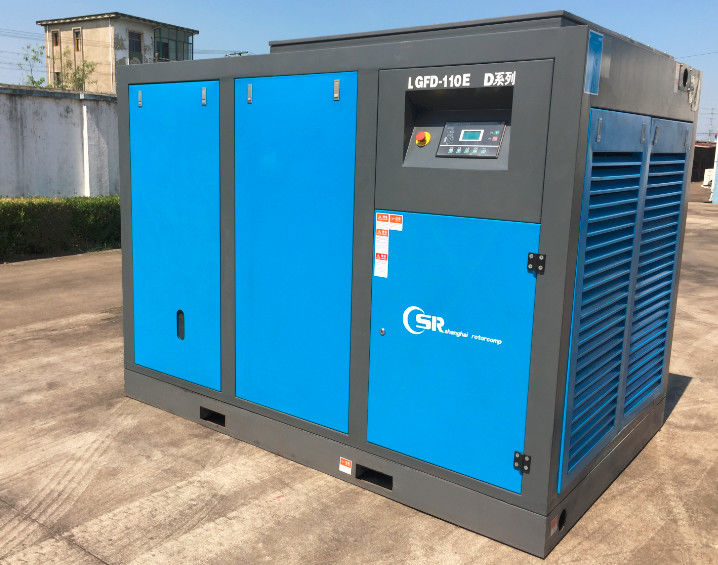

Large Image :  High End 132kw Screw Air Compressor , Industrial Rotorcomp Screw Air End

Product Details:

Place of Origin: Germany
Brand Name: Shanghai Rotorcomp
Certification: ISO.TUV,CE,GS
Model Number: LGFD screw compressor

Payment & Shipping Terms:

Minimum Order Quantity: Min.:1set
Price: Negotiable
Packaging Details: Exported Wooden Package
Delivery Time: 15-20 working days
Payment Terms: Western Union, T/T, L/C, D/P, D/A
Supply Ability: 3,000 sets/per month
Contact Now
Detailed Product Description
Warranty: 5 Years Air End: Germany Rotorcomp
Advanced Design: Design In Germany Motor: IP55 93.8% IE3 Super High Efficient Motor
Cooling System: Enlarged Increased 30% Performance Intake Valve: Red Star
Safety Valve: Yuantian Temp. Sensor: Danfoss
Controller: Colorful Touchable Smart Controller Pressure Sensor: Danfoss
High Light:

industrial screw compressor

,

rotary screw type compressor

132kw air compressor german rotorcomp air end in TUV certificates, 5 years warranty



Advantages of LGFD High-end Series Screw Compressor:

1. World-leading Made in Germany Rotorcomp screw air end
2. 5 years warranty
3. Extraordinary cooling system design
4. Intelligent control system
5. higher efficient energy-saving motor in IP55 IE3 CE&MEPS, SF1.2
6. Unique driving guard system
7. ISO,TUV,GA,SGS certificates

Advantages of our new  air screw compressor technology

Advantages of our new EVO-technology
New ROLLING PROFILE- ultimate efficiency with
reduced noise
Long life cycle due to increased bearing dimensions
and wear-free ROLLING PROFILE
Wide operating pressure range from 5 to 15 barg
High quality manufacturing and assembling
Made in Germany
Quality assurance ?bench test of every air end
before leaving our factory
Easy application selection with our new
ROTORCOMP SIZING AIR software
Highest flexibility for your package design
Suitable for all types of drive driving motors
Drive options: Belt drive, direct drive, internal gear drive
Base and face-flange mounting



Ultimate efficiency and reduced noise through
High volumetric output due to
• Reduced internal leakage
• Thermally optimized oil injection system
• Improved suction port efficiency giving reduced
internal losses
Low power consumption due to
• Optimized torque characteristics and reduced
internal friction
• Improved outlet port with lower pressure losses
Reduced noise and low vibration due to
• Smooth rolling of the rotors with new
ROLLING PROFILE®
• Optimized outlet port





Our new EVO® oil-injected screw air ends are among the most efficient air ends in the world
market today.

All of our 30+ years experience in the supply of our well-known B air ends and
NK compact units is built into our new EVO® generation ensuring a highly reliable product.
Using EVO® as the heart, our OEM partners can build compressor systems with ultimate

efficiency, low noise, at the highest quality standards.



Performance data



High End 132kw Screw Air Compressor , Industrial Rotorcomp Screw Air End

High End 132kw Screw Air Compressor , Industrial Rotorcomp Screw Air End



High End 132kw Screw Air Compressor , Industrial Rotorcomp Screw Air End

High End 132kw Screw Air Compressor , Industrial Rotorcomp Screw Air End





All of our LGFD air screw compressors have special Drives and electrics system that is almost loss-free power transmission guarantees reliable, high-performance compressor operation. The regular maintenance requirement is reduced to lubrication of the motor.



All the electronic components are brand products of leading manufacturers. rives and electrics. The Air end of our LGFD rotary screw compressor-made in Germany. The centrepiece of the compressor is the air end, which is constructed and manufactured with the most modern production methods in Germany. The optimal air end for your compressor can be used on a modulating basis. In frequency-controlled units, where the operating pressure changes, adjustments can also be made on the frequency controller to optimally adjust the speed of the compressor to the compressor performance.

We design the new Oil separation system for our LGFD air screw compressor that Compressors up to 132 kW are equipped with external separators that can be changed in a simple spin-off/spin-on process. Larger units have an internal separator cartridge. Due to the excellent separation efficiency of the system as a whole, the compressors can be used in the pressure range of 5.0 to 15.0 bar. Special pressures on request.

And the Oil circuit of our LGFD rotary screw compressor is the amount of oil in the units is determined in such a way as to extend the oil change intervals (depending on ambient conditions).An oil level sensor is integrated as standard and is read by the controller. All the units in this series have a horizontal oil separation vessel in which the oil is separated from the compressed air highly efficiently at low speeds.







Model Capacity(m3/min)* Power(kw) In/outlet Noise Dimension Weight
8bar 10bar 13bar 15bar Motor Motor(Fan) dB(A)** L×W×H in mm kg
LGFD-5.5 0.87 0.75 0.61 0.53 5.5 0.09 G1 69 900×750×900 245
LGFD-7.5 1.2 1.04 0.9 0.8 7.5 0.09 G1 69 900×750×900 250
LGFD-11 1.79 1.58 1.32 1.17 11 0.18 G1 70 950×800×1290 370
LGFD-15 2.4 2.15 1.84 1.66 15 0.18 G1 70 950×800×1290 480
LGFD-18.5 3 2.9 2.52 2.02 18.5 0.37 G1 71 1250×960×1300 730
LGFD-22 3.51 3.16 2.71 2.45 22 0.37 G1 71 1250×960×1300 750
LGFD-30 4.88 4.32 3.64 3.25 30 0.75 G1-1/4 71 1440×1006×1296 1200
LGFD-37 5.83 5.21 4.44 4.01 37 0.75 G1-1/4 73 1440×1006×1296 1350
LGFD-45 7.08 6.3 5.43 4.94 45 1.1 G1-1/4 75 1440×1006×1296 1400
LGFD-55 9.32 8.33 7.05 6.31 55 1.1 G2 75 1600×1200×1650 1600
LGFD-75 12.31 11.13 9.61 8.74 75 1.1 G2 75 1600×1200×1650 1750
LGFD-90 16.45 14.26 11.72 10.8 90 2.2 G2 75 2000×1580×1790 2600
LGFD-132 20.26 17.48 14.25 13.05 110 2.2 G2 78 2500×1700×1900 3000
LGFD-180 23.08 20.54 17.65 16.05 132 2.2 G2 78 2500×1700×1900 3150
Note:
1. The above parameters and color are designed according to customer needs, the parameters are for reference only, the final parameters of the drawings shall prevail;
2. According to user requirements and needs, to join way: air/water cooling, oil content, weight, appearance size according to the need to design, to the final order and the technical agreement shall prevail;

3. Frequency converters (optional).

4. 1 years warranty, 5 years warranty for air end







High End 132kw Screw Air Compressor , Industrial Rotorcomp Screw Air End

High End 132kw Screw Air Compressor , Industrial Rotorcomp Screw Air End

High End 132kw Screw Air Compressor , Industrial Rotorcomp Screw Air End
