Frequency VSD Screw Compressor / Rotorcomp Ingersoll Rand Screw Compressor

China Frequency VSD Screw Compressor / Rotorcomp Ingersoll Rand Screw Compressor supplier
Frequency VSD Screw Compressor / Rotorcomp Ingersoll Rand Screw Compressor supplier Frequency VSD Screw Compressor / Rotorcomp Ingersoll Rand Screw Compressor supplier Frequency VSD Screw Compressor / Rotorcomp Ingersoll Rand Screw Compressor supplier

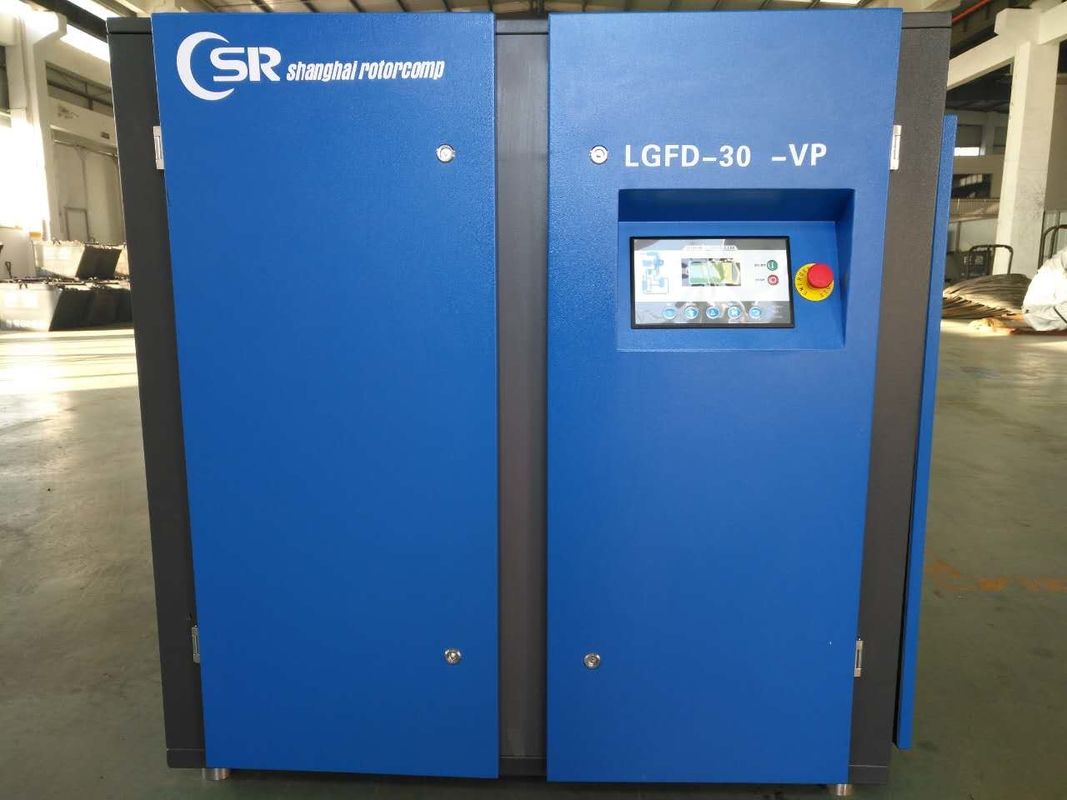

Large Image :  Frequency VSD Screw Compressor / Rotorcomp Ingersoll Rand Screw Compressor

Product Details:

Place of Origin: Germany
Brand Name: Shanghai Rotorcomp
Certification: ISO.TUV,CE,GS
Model Number: LGFD VSD screw compressor

Payment & Shipping Terms:

Minimum Order Quantity: Min.:1set
Price: Negotiable
Packaging Details: Exported Wooden Package
Delivery Time: 12-15 working days
Payment Terms: Western Union, T/T, L/C, D/P, D/A
Supply Ability: 3,000 sets/per month
Contact Now
Detailed Product Description
Warranty: 5 Years Air End: Made In Germany
Advanced Design: Design In Germany Inverter: Danmark Made
Motor: IP55, 93.8% Super High Efficient Motor Rated Power: 30Kw/40Hp
Temp,Sensor: Swiss Huba Pressure Sensor: Swiss Huba
Intake Valve: Red Star Contractor: Schneider

30KW industrial variable frequency drive air screw compresor in TUV certificates 5 years warranty



New generation VSD Screw Air Compressor, 35%-50% than traditional VSD compressor.





Advantages:

1. World-leading "Made in Germany" Rotorcomp screw air end
2,25-30% energy saving than normal VSD compressor
3. wider 15-60hz adjustable-speed drive system
4. Intelligent touchable PLC control system
5. Double higher efficient VSD energy-saving motors in IE3 CE&MEPS
6. Unique driving guard system
7. ISO, TUV, GA, CE,SGS certificates



Frequency VSD Screw Compressor / Rotorcomp Ingersoll Rand Screw Compressor



Shanghai rotorcomp Variable speed drive Screw Air Compressor adapting the amount of free air delivered to compressed air demand is the most economical operating method where demand for compressed air fluctuates considerably or where the stored volume is very small or where operating below peak load.


The benefits of rotorcomp VSD air screw compressor

>Smooth starts and stops within seconds
>Continuous volume flow regulation from 25-100%
>Adjustable-speed drive from 15-60hz
>minimization of wear and maintenance costs
>No power-peaks during start-up
> nearly no idling


Reduce Energy Consumption

The costs of power consumption account for 70% or more of all costs during the operation. The electric charges of running air compressor account for more than 40% of all the electric charges in the factory.

The requirement of compressed air fluctuates violently in different time every day, different weeks, or different months every year. The range of fluctuation is 40% to 80%, Rotorcomp adjustable-speed drive screw compressor can meet the user’s requirement exactly. When the user needs less air delivery, Variable frequency inverter can reduce the capacity and reduce the power consumption at the same.



Frequency VSD Screw Compressor / Rotorcomp Ingersoll Rand Screw Compressor



30KW VSD air cooling compressor parameters



ITEM UNIT MODEL
LGFD-30 VP
Free air delivery m3/min 1.25-5.00 1.15-4.50 0.93-3.70 0.85-3.25
Max. working pressure MPa 0.8 1.0 1.3 1.5
Compressor type   Oil inject screw compressor
Cooling type   Air cooling
Driven type   Belt driven
Inlet status Temperature ≤45
Pressure MPa Atmospheric pressure
Relative humidity   ≤90%
Noise Level dB(A) ≤72
Residual oil content ppm ≤2
Drive rotor speed rpm 1010-4030 915-3650 800-3100 740-2950
Compressed air outlet temperature Ambient temperature+10
Cooling air flow m3/hr 9200
Control mode   Intelligent controller
Safety valve set pressure MPa 0.88 1.10 1.43 1.60
Lubricating oil volume L 30
Lubricating oil brand   ROTORCOMP
Compressed air outlet connection   G1-1/4
Dimension L mm 1500
W mm 1000
H mm 1320
Net Weight kg 880
Motor Model   Y2200L1-2 VP
Speed rpm 740-2950
Rated Power KW 30
Service factor   1.2
Protection type   IP55
Insulation class   F
Startup mode   Frequency conversion starting
Voltage V 380(Special on request)
Frequency Hz 15-60
Rated current A 56.9
Weight of motor kg 232
Note:
1. The above parameters and color are designed according to customer needs, the parameters are for reference only, the final parameters of the drawings shall prevail;
2. According to user requirements and needs, to join way: air/water cooling, oil content, weight, appearance size according to the need to design, to the final order and the technical agreement shall prevail;

3. Frequency Inverters (ABB&SIEMENS customized).

4. 1 year warranty, 5 years warranty for air end



Frequency VSD Screw Compressor / Rotorcomp Ingersoll Rand Screw Compressor

Frequency VSD Screw Compressor / Rotorcomp Ingersoll Rand Screw Compressor

Frequency VSD Screw Compressor / Rotorcomp Ingersoll Rand Screw Compressor





INDUSTRIAL APPLICATION



Frequency VSD Screw Compressor / Rotorcomp Ingersoll Rand Screw Compressor
