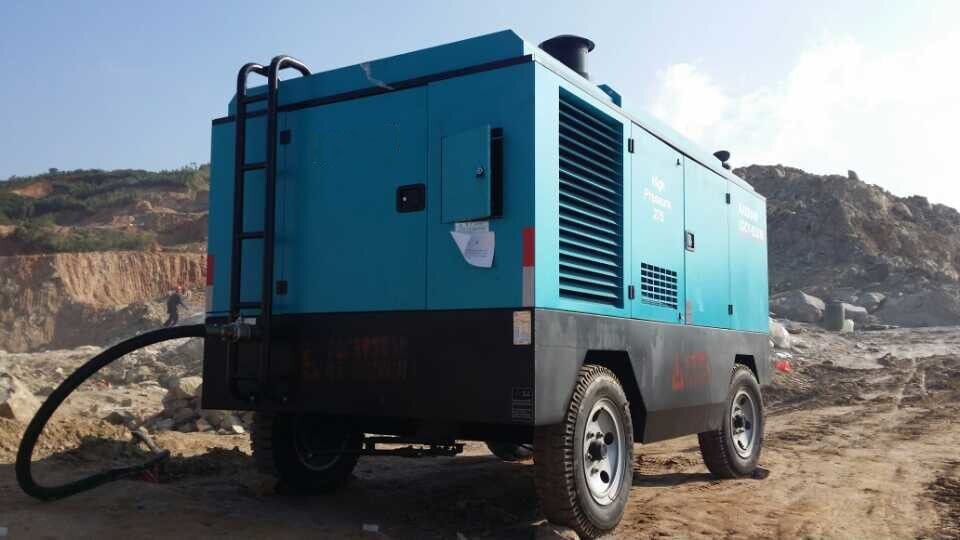

Double Stage Diesel Rotary Screw Air Compressor Efficient For Lubricated Oil

Double Stage Diesel Rotary Screw Air Compressor Efficient For Lubricated Oil
Double Stage Diesel Rotary Screw Air Compressor Efficient For Lubricated Oil Double Stage Diesel Rotary Screw Air Compressor Efficient For Lubricated Oil Double Stage Diesel Rotary Screw Air Compressor Efficient For Lubricated Oil

Large Image :  Double Stage Diesel Rotary Screw Air Compressor Efficient For Lubricated Oil

Product Details:

Place of Origin: China
Brand Name: SHANGHAI ROTORCOMP
Certification: ISO,CE,TUV
Model Number: LY26/20

Payment & Shipping Terms:

Minimum Order Quantity: 1sets
Price: negotiable
Packaging Details: Plywood case
Delivery Time: 5-15 working days
Detailed Product Description
Type: Screw Configuration: Mobile
Power: 360HP/1600rpm Engine: CUMMINS
Cooling Method: Air Cooled Capacity: 26m3/min(930cfm)
Working Pressure: 20bar/290psi Dimension: 4600×1950×2850mm
Weight: 2500Kg Ambient Temp.: 50°C
Lubricated Oil: Mineral Oil Noise: 83dB
High Light:

diesel rotary screw air compressor

,

diesel engine driven air compressor

Double Stage Pressure 930Cfm 290Psi Diesel Portable Rotary Screw compressor

Shanghai Rotorcomp's fully implemented Quality Management and Environmental Management systems in the design and manufacturing of these units fulfill the requirements of ISO 9001 and ISO 14001.

The range has also been tested / given the certificate tested according to ISO 1217.



The most efficient wheeled Diesel compressor, Deutz, Ctapillar, Cummins diesel engine, less10-15% diesel consumption than the traditional model. More flexible in various working conditions for mining, road construction. Sand blasting.



Advantages of Diesel Portable Screw Compressor:

1. Two-stage screw block is patented;
2. Designed for a maximum pressure of 40 bar;
3. Two-stage compression; Deutz, Cummins, and Yuchai World well-known engines
4. SKF bearings, direct drive, no noise gears;


Application of Diesel Portable Screw Compressor:

Shanghai rotorcomp diesel Portable/Mobile screw air compressor is widely used in mines, water conservancy, transportation, shipbuilding, urban construction, energy, industry and other industries.


Diesel Portable Compressor Features:

Diesel portable screw air compressor is widely applied in the industries, such as, road, railway, mine, water conservancy, shipbuilding, urban construction, energy and war industry, etc.

Shanghai Rotorcomp diesel portable screw air compressor is efficient and reliable, with complete varieties. Discharge quantity covers 33m3/min and the discharge pressure is up to 3.5MPa at maximum.

1. The operation parameters, such as, discharge pressure, discharge temperature of microcomputer intelligent monitoring air compressor and rotate speed, oil pressure, water temperature of the diesel engine as well as liquid level of oil tank, have automatic alarm and stop protection function.

2. Multi-stage air filter is suitable for working environment with much dust;Multi-stage fuel filter is suitable for current situation of domestic oil quality;Super-large oil and water cooler is suitable for high-temperature and altitude environment.

3. The parts of spacious maintenance door required to be maintained are within accessible range. It is easy and convenient to maintain air filter, oil filter, fuel tank, battery and oil cooler, reducing the shutdown time.

4. It is convenient to move and it can be moveable flexibly under abominable topographic condition.Each compressor is equipped with rings, which are used for safely and conveniently lifting and transporting.

Efficient AIR The CUMMINS Tier 4 Final engine is mounted with Shanghai Rotorcomp C260 air element. The single stage C260 element is one of the most efficient screw compressor designs on the market today. This translates to less energy loss in the system and equates to lower fuel consumption per CFM.









Double Stage Diesel Rotary Screw Air Compressor Efficient For Lubricated Oil 0



Model Capacity
(m3/min)
Working Pressure
(Mpa)
Diesel Engine
(kw)
Dimension
(mm)
LY26/20 26 2.0  CUMMINS      6LTAA8.9-C360

3980×1800×2650


Screw air compressor main spare parts configuration:


Item Parts Brand
1 Air end rotorcomp
2 Intake Valve rotorcomp
3 Solenoid Valve DANFOSS
4

Temperature

sensor

rotorcomp
5 Pressure sensor

Huba original (from

Switzerland)

6 Engine Yuchai
7 Coupling Germany KTR
8

Thermostat

Valve

Hongxing
9 PLC PLOT
10

Minimal

Pressure Valve

rotorcomp
11 Air filter element rotorcomp
12 Oil filter element rotorcomp
13

Oil and gas

separator

element

rotorcomp
14 Bearing

Sweden SKF (Life 60000

hours)




Double Stage Diesel Rotary Screw Air Compressor Efficient For Lubricated Oil 1

Double Stage Diesel Rotary Screw Air Compressor Efficient For Lubricated Oil 2
