Environmental Protection Oil Free Compressor With Super Silent Body Housing

Environmental Protection Oil Free Compressor With Super Silent Body Housing
Environmental Protection Oil Free Compressor With Super Silent Body Housing

Large Image :  Environmental Protection Oil Free Compressor With Super Silent Body Housing

Product Details:
Place of Origin: China
Brand Name: Shanghai Rotorcomp
Certification: ISO.TUV,CE,GS
Model Number: RC-D48/08-S1
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Exported Wooden Package
Delivery Time: 15-20 working days
Payment Terms: Western Union, T/T, L/C, D/P, D/A
Supply Ability: 3,000 sets/per month
Detailed Product Description
Type: Oil Free Compressor Feature: Environmental Protection
Capacity(m3/min) 8bar: 4.8 Power(kw) Motor: 44
In/outlet: 2 Noise: 78dB(A)
Dimension: 1350×1460×1660mm Weight: 1360Kg
Body: Super Silent Body Housing
High Light:

oil free scroll compressor

,

oil free rotary screw air compressor

Environmental Protection Oil Free Compressor With Super Silent Body Housing



Oil Free Compressor Features



  • High efficiency cooling
  • Longer usage life
  • Big volume air tank
  • Easy operation
  • High performance
  • Oil-free, belt driven, piston type
  • Conpetitive Price with First Class Quality



Oil Free Compressor Advantages



1. Easy to move out the elements



Good substitute of small oil free screw compressor with lower cost of maintenance, and more simple structure with energy-saving performance in food&beverage,pharmaceutical,automobile,medical&chemical,prescion and electronic industry.

Advanced design for air cooling system better performance than other compressor 15-20%



Oil Free Compressor Parameters



Model Capacity(m3/min) Power(kw) In/outlet Noise Dimension Weight
8bar Motor dB(A) L×W×H in mm kg
RC-D04/08-S1 0.4 3.7 3/8 55 720×760×1150 220
RC-D06/08-S1 0.6 5.5 3/8 60 720×760×1150 240
RC-D12/08-S1 1.2 11 1/2 65 1250×760×1090 440
RC-D18/08-S1 1.8 16.5 3/4 68 1250×760×1560 630
RC-D24/08-S1 2.4 22 1 70 1250×1360×1090 820
RC-D30/08-S1 3.0 27.5 1-1/2 72 1250×1360×1560 1010
RC-D36/08-S1 3.6 33 1-1/2 75 1300×1380×1660 1200
RC-D42/08-S1 4.2 38.5 2 78 1350×1460×1660 1280
RC-D48/08-S1 4.8 44 2 78 1350×1460×1660 1360
RC-D54/08-S1 5.4 49.5 2-1/2 81 1400×1520×1780 1480
RC-D60/08-S1 6.0 55 2-1/2 81 1400×1520×1780 1600



Note:
1. The above parameters and color are designed according to customer needs, the parameters are for reference only, the final parameters of the drawings shall prevail;
2. According to user requirements and needs, to join way: air/water cooling, oil content, weight, appearance size according to the need to design, to the final order and the technical agreement shall prevail;

3. Frequency converters (optional).

4. 1 year warranty, 2 years warranty for air end



Oil Free Compressor Details

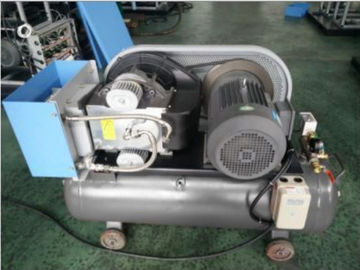

Environmental Protection Oil Free Compressor With Super Silent Body Housing 0
