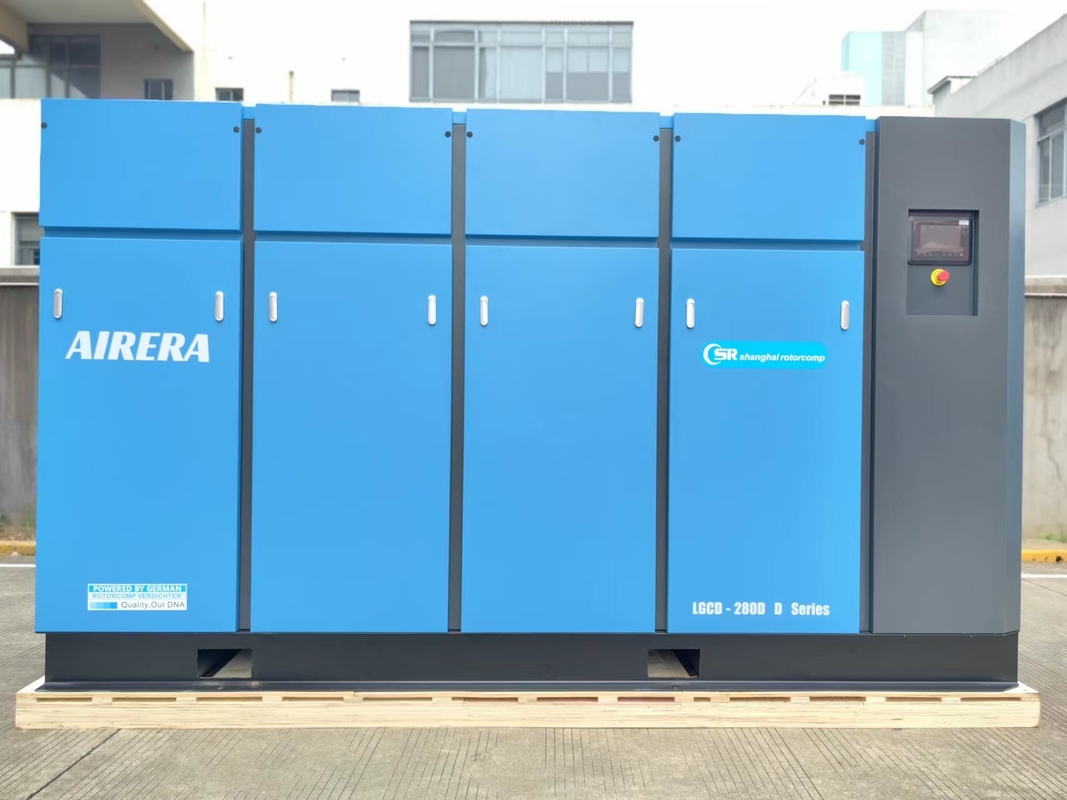

Low Noise Rotary Screw Air Compressor , OEM Industrial Air Compressor
Rotary Screw Air Compressor features:
State-of-the-art Screw Element
Superior Sweden SKF element bearings
Premium Efficiency Drive Motor
Superior Air Filter
Efficient Separation System
Hydraulic Oil Pipe and Air Pipe
Intelligent Control and Protection
Advanced Computer Controller and Monitoring System
Integration possible in many process control systems.
Sample calculation of energy saving:
For example a standard 55kW screw compressor delivers air at 70% loading and operates 5800 hours per years. Taking electricity cost of USD 0.15/kWH, the additional energy consumed as comparing with VSD compressor will be:
A. Energy consumed during unload operation assuming unload shaft power absorbed is 45% of full load amount: 30% unload times x loss during unload time = (45% x 55kW) x 5800 hour/year x USD 0.15 = USD 6,460/year.
B. Energy consumed due to cut-in/cut-out pressure band of 2 bar.g assuming this counts for 14% of full load amount: 70% loading time x additional 2 bar.g of differential pressure loss = (14% x 55kW) x 5800 hour/year x USD 0.15 = USD 4,689/year.
Total energy saved by using VSD compressor will be = USD 6,460/year + USD 4,689/year = USD 11,149/year.
In a conclusion, a VSD compressor can save annually the electricity cost of USD 11,149, 3 years can then save USD 11,149 x 3 = USD 33,447 which could be more than capital investment for purchasing another VSD compressor.
132KW VSD air cooling compressor parameters
|Free air delivery||m3/min||5.90-23.50||5.30-21.00||4.75-18.50||4.00-16.00|
|Max. working pressure||MPa||0.8||1.0||1.3||1.5|
|Compressor type||Oil inject screw compressor|
|Cooling type||Air cooling|
|Driven type||Direct driven|
|Residual oil content||ppm||≤2|
|Drive rotor speed||rpm||1425-2970|
|Compressed air outlet temperature||℃||Ambient temperature＋10|
|Cooling air flow||m3/hr||14200|
|Control mode||Intelligent controller|
|Safety valve set pressure||MPa||0.88||1.10||1.43||1.60|
|Lubricating oil volume||L||70|
|Lubricating oil brand||ROTORCOMP|
|Compressed air outlet connection||G2|
|Startup mode||ʏ-Δ starting|
|Voltage||V||380(Special on request)|
|Weight of motor||kg||1010|
Every permanent magnet variable-frequency air compressor produced by Wan Beardsley through sophisticated air compressor vector frequency control technology reaches national grade-2 energy-saving effect, some products have grade-one energy efficiency.
Shanghai rotorcomp screw air compressor is featured by high efficiency, low noise, small vibration, small volume, low expense, convenient maintenance, beautiful appearance and so on,
Shanghai rotorcomp points of each installation with a variety of sensors can be. the measurement of the running state and the all Chinese display on the screen, simple operation, high reliability. It has the function of self checking root, according to the user demand volume, automatic adjustment of running state. the interests of customers: monitoring and advanced
communication systems make the operation of the compressor is more reliable, higher efficiency and lower maintenance costs, the computer control system to make the machine unload loss minimum, prolong the service life of the compressor.
Shanghai rotorcomp Air System can be installed where you need compressed air. Its low noise operation and integrated air treatment equipment eliminates the need for a separate compressor room. All our compressors are tested and delivered ready for use. The integrated options will reduce installation costs and pressure drops significantly, thus saving additional energy cost.
Shanghai rotorcomp compressors have integrated dryer, filters and oil-water separator available to protect your compressed air network. This quality air expands the life of equipment, increasing efficiency and ensuring quality in your final product.
