1.More simple structure,less wearing part
2.lower maintenance cost and cheaper price
3.lower noise and less vibration
4.Application Filed
5.Auto Car 4S Shop
6.Medical equipment(medical,dentists gas source as oxygen
7.Electrical &Pharmaceutical industry
8.Food& Textile industry
9Gas separation system equipment(adsorption&membrance separation of oxygen and nitrogen)
Advanced design for air cooling system better performance than other compressor 15-20%
Colorful Touchable Controller operated simple&easy
Model | Capacity(m3/min) | Power(kw) | In/outlet | Noise | Dimension | Weight |
8bar | Motor | dB(A) | L×W×H in mm | kg | ||

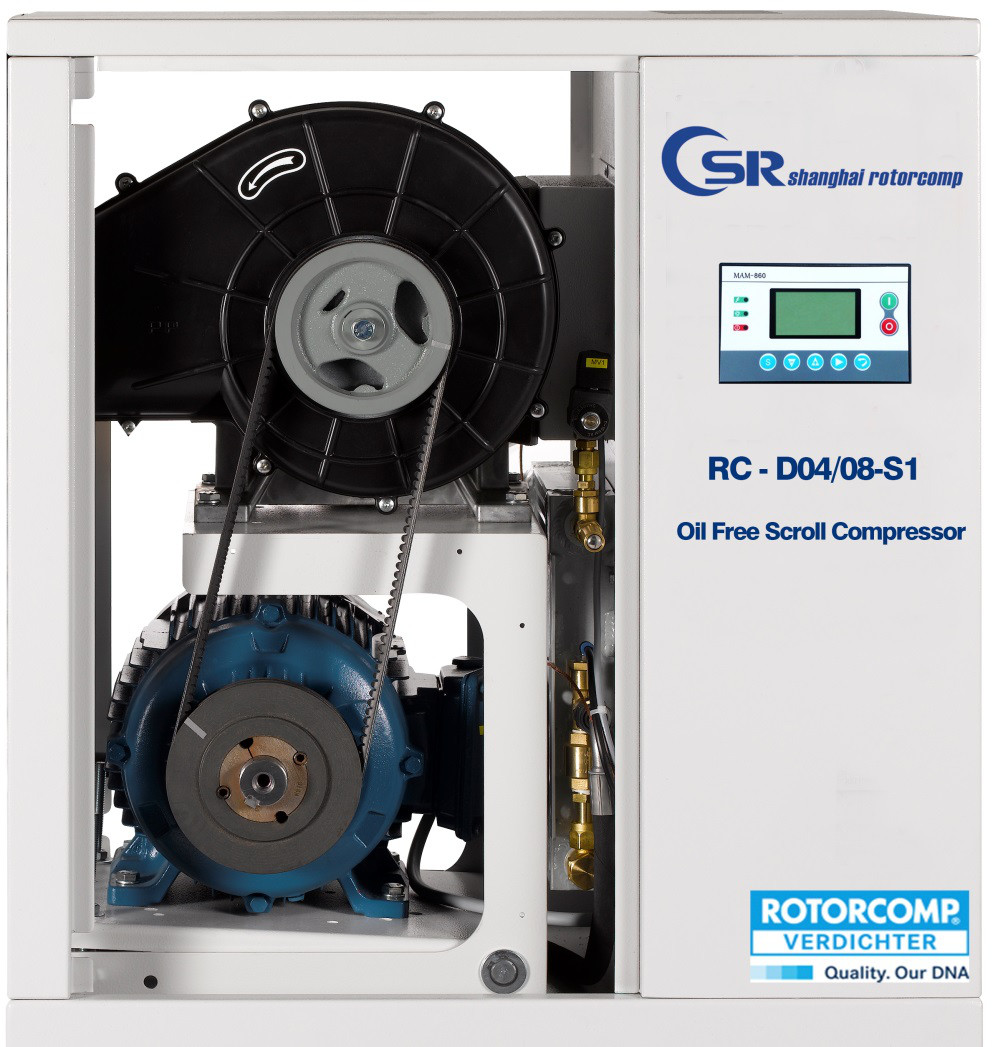

RC-D04/08-S1 | 0.4 | 3.7 | 3/8 | 55 | 720×760×1150 | 220 |
RC-D06/08-S1 | 0.6 | 5.5 | 3/8 | 60 | 720×760×1150 | 240 |
RC-D08/08-S1 | 0.8 | 7.5 | 1/2 | 62 | 780×790×1250 | 290 |
RC-D12/08-S1 | 1.2 | 11 | 1/2 | 65 | 1250×760×1090 | 440 |
RC-D18/08-S1 | 1.8 | 16.5 | 3/4 | 68 | 1250×760×1560 | 630 |
RC-D24/08-S1 | 2.4 | 22 | 1 | 70 | 1250×1360×1090 | 820 |
RC-D30/08-S1 | 3.0 | 27.5 | 1-1/2 | 72 | 1250×1360×1560 | 1010 |
RC-D30/08-S1 | 3.6 | 33 | 1-1/2 | 75 | 1250×1360×1560 | 1200 |
Note: |
1. The above parameters and color are designed according to customer needs, the parameters are for reference only, the final parameters of the drawings shall prevail; |
2. According to user requirements and needs, to join way: air/water cooling, oil content, weight, appearance size according to the need to design, to the final order and the technical agreement shall prevail; |
3. Frequency converters (optional). 4. 1 year warranty, 2 years warranty for air end |
