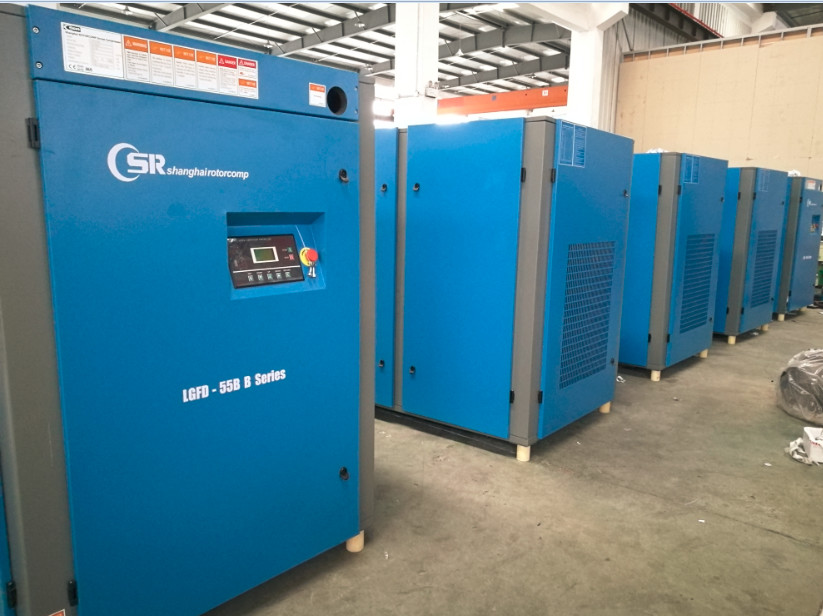

Air Screw Compressor german made 20cfm-1,800cfm
| Place of Origin | Germany |
|---|---|
| Brand Name | Shanghai Rotorcomp |
| Certification | ISO.TUV,CE,GS |
| Model Number | EVO screw compressor |
| Minimum Order Quantity | Min.:1set |
| Price | Negotiable |
| Packaging Details | Exported Wooden Package |
| Delivery Time | 15-20 working days |
| Payment Terms | Western Union, T/T, L/C, D/P, D/A |
| Supply Ability | 3,000 sets/per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 5 Years | Air End | Made In Germany |
|---|---|---|---|
| Advanced Design | Design In Germany | Cooling System | Enlarged Air Cooling System Than 20-25% With Better Performance |
| Motor | IP55 In IEC3 Super High Efficient Motor | Driving System | Protection System |
| Contractor | Schneider Brand | Controller | Touchable Colorful Controller As Option |
| Maintenance | Simple&advanced Design For Low Maintenance Cost | ||
| High Light | rotary screw type compressor,screw drive air compressor |
||
Product Description
5.5kw-200kw screw air compressor in unique design TUV certificates 5 year warranty
Advantages of LGFD High-end Series Screw Compressor:
1. World-leading Made in Germany Rotorcomp screw air end
2. 5 years warranty
3. Extraordinary cooling system design
4. Intelligent control system
5. higher efficient energy-saving motor in IE3 CE&MEPS
6. Unique driving guard system
7. ISO,TUV,GA,SGS certificates
Advantages of our new EVO air screw compressor technology
All of our EVO air screw compressors have special Drives and electrics system that is almost loss-free power transmission guarantees reliable, high-performance compressor operation. The regular maintenance requirement is reduced to lubrication of the motor.
All the electronic components are brand products of leading manufacturers. rives and electrics. The Air end of our EVO rotary screw compressor-made in Germany. The centrepiece of the compressor is the air end, which is constructed and manufactured with the most modern production methods in Germany. The optimal air end for your compressor can be used on a modulating basis. In frequency-controlled units, where the operating pressure changes, adjustments can also be made on the frequency controller to optimally adjust the speed of the compressor to the compressor performance.
We design the new Oil separation system for our EVO air screw compressor that Compressors up to 132 kW are equipped with external separators that can be changed in a simple spin-off/spin-on process. Larger units have an internal separator cartridge. Due to the excellent separation efficiency of the system as a whole, the compressors can be used in the pressure range of 5.0 to 15.0 bar. Special pressures on request.
And the Oil circuit of our EVO rotary screw compressor is the amount of oil in the units is determined in such a way as to extend the oil change intervals (depending on ambient conditions).An oil level sensor is integrated as standard and is read by the controller. All the units in this series have a horizontal oil separation vessel in which the oil is separated from the compressed air highly efficiently at low speeds.
| Model | Capacity(m3/min)* | Power(kw) | In/outlet | Noise | Dimension | Weight | ||||
| 8bar | 10bar | 13bar | 15bar | Motor | Motor(Fan) | dB(A)** | L×W×H in mm | kg | ||
| LGFD-5.5 | 0.87 | 0.75 | 0.61 | 0.53 | 5.5 | 0.09 | G1 | 69 | 900×750×900 | 245 |
| LGFD-7.5 | 1.2 | 1.04 | 0.9 | 0.8 | 7.5 | 0.09 | G1 | 69 | 900×750×900 | 250 |
| LGFD-11 | 1.79 | 1.58 | 1.32 | 1.17 | 11 | 0.18 | G1 | 70 | 950×800×1290 | 370 |
| LGFD-15 | 2.4 | 2.15 | 1.84 | 1.66 | 15 | 0.18 | G1 | 70 | 950×800×1290 | 480 |
| LGFD-18.5 | 3 | 2.9 | 2.52 | 2.02 | 18.5 | 0.37 | G1 | 71 | 1250×960×1300 | 730 |
| LGFD-22 | 3.51 | 3.16 | 2.71 | 2.45 | 22 | 0.37 | G1 | 71 | 1250×960×1300 | 750 |
| LGFD-30 | 4.88 | 4.32 | 3.64 | 3.25 | 30 | 0.75 | G1-1/4 | 71 | 1440×1006×1296 | 1200 |
| LGFD-37 | 5.83 | 5.21 | 4.44 | 4.01 | 37 | 0.75 | G1-1/4 | 73 | 1440×1006×1296 | 1350 |
| LGFD-45 | 7.08 | 6.3 | 5.43 | 4.94 | 45 | 1.1 | G1-1/4 | 75 | 1440×1006×1296 | 1400 |
| LGFD-55 | 9.32 | 8.33 | 7.05 | 6.31 | 55 | 1.1 | G2 | 75 | 1600×1200×1650 | 1600 |
| LGFD-75 | 12.31 | 11.13 | 9.61 | 8.74 | 75 | 1.1 | G2 | 75 | 1600×1200×1650 | 1750 |
| LGFD-90 | 16.45 | 14.26 | 11.72 | 10.8 | 90 | 2.2 | G2 | 75 | 2000×1580×1790 | 2600 |
| LGFD-132 | 20.26 | 17.48 | 14.25 | 13.05 | 110 | 2.2 | G2 | 78 | 2500×1700×1900 | 3000 |
| LGFD-180 | 23.08 | 20.54 | 17.65 | 16.05 | 132 | 2.2 | G2 | 78 | 2500×1700×1900 | 3150 |
| Note: |
| 1. The above parameters and color are designed according to customer needs, the parameters are for reference only, the final parameters of the drawings shall prevail; |
| 2. According to user requirements and needs, to join way: air/water cooling, oil content, weight, appearance size according to the need to design, to the final order and the technical agreement shall prevail; |
|
3. Frequency converters (optional). 4. 1 years warranty, 5 years warranty for air end |
