VSD Screw Compressor
>
|
| Place of Origin | Germany |
| Brand Name | Shanghai Rotorcomp |
| Certification | ISO.TUV,CE,GS |
| Model Number | LGFD VSD screw compressor |

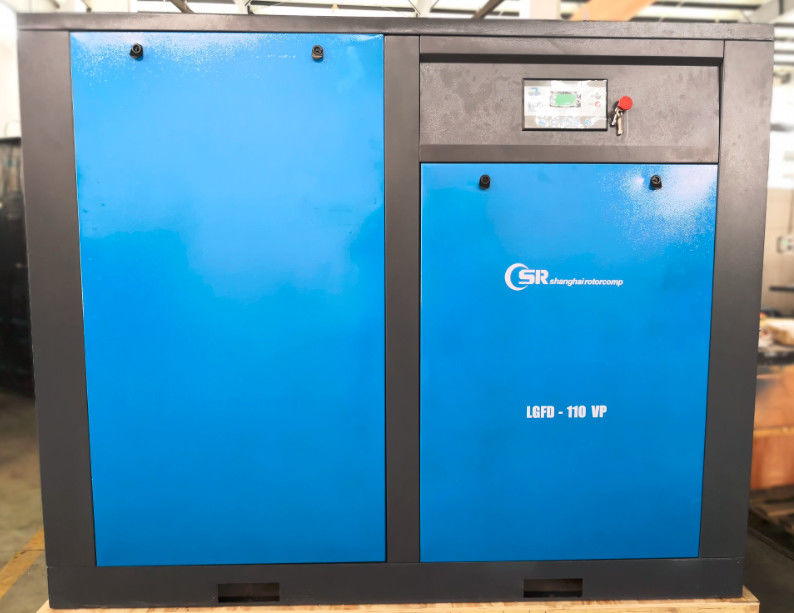

132KW VSD rotary screw air compressor energy saving 35-50% in TUV certificates 5 years warranty
1. High efficiency motor:Using the latest standard motor with new national energy efficiency motors ,using imported SKF bearings.
1. Large starting torque
2. Insulation class F,IE3 protection class IP55
3. SKF bearing,low noise,long service life
4. With the installation of gas,non-stop refueling
2. Efficient air intake valve:The high quality air inlet valves can reduce energy consumption.
1. Large diameter and low pressure drop.
2.Improve system stability.
3.Ensure effective adjustment control during start-up,operation and stop traffic.
Shanghai rotorcomp Variable speed drive Screw Air Compressor adapting the amount of free air delivered to compressed air demand is the most economical operating method where demand for compressed air fluctuates considerably or where the stored volume is very small or where operating below peak load.
The costs of power consumption account for 70% or more of all costs during the operation. The electric charges of running air compressor account for more than 40% of all the electric charges in the factory.
The requirement of compressed air fluctuates violently in different time every day, different weeks, or different months every year. The range of fluctuation is 40% to 80%, Rotorcomp adjustable-speed drive screw compressor can meet the user’s requirement exactly. When the user needs less air delivery, Variable frequency inverter can reduce the capacity and reduce the power consumption at the same.
132KW air cooling compressor parameters
| ITEM | UNIT | MODEL | ||||
| LGFD-22/8 | LGFD-20/10 | LGFD-16/13 | ||||
| Discharge capacity | m3/min | 22 | 20 | 16 | ||
| Working pressure | MPa | 0.8 | 1.0 | 1.3 | ||
| Cooling style | Air cooling | |||||
| Working style | one stage, continuous working | |||||
| Driven method | Direct driven | |||||
| Inlet status | Temperature | ℃ | ≤40 | |||
| Pressure | MPa | Atmospheric pressure | ||||
| Relative humidity | ≤100% | |||||
| Noise | dB(A) | ≤83 | ||||
| Oil content | ppm | ≤2 | ||||
| Drive rotor speed | rpm | 1432-2972 | ||||
| Dust particle size | μm | 1μm | ||||
| Cooler outlet temperature | ℃ | Ambient temperature＋10 | ||||
| Cooling air flow | m3/min | 500 | ||||
| Displacement control mode | Load/empty + stop for too long empty status | |||||
| Safety valve set pressure | MPa | 0.88 | 1.1 | 1.43 | ||
| Lubricating oil volume | L | 100 | ||||
| Lubricating oil brand | ROTORCOMP | |||||
| Air outlet connection size | DN80 | |||||
| Drain connection size | G1 | |||||
| Dimension | L | mm | 2350 | |||
| W | mm | 1500 | ||||
| H | mm | 1760 | ||||
| Net Weight | kg | 2260 | ||||
| Motor | Type | Y2315M-2 | ||||
| Rating | rpm | 895-2974 | ||||
| Power | KW | 132 | ||||
| Service coefficient | 1.20 | |||||
| Degree of protection | IP55 | |||||
| Insulation class | F(B) | |||||
| Startup mode | Reduced voltage | |||||
| Voltage | V | 380 | ||||
| Frequency | Hz | 50 | ||||
| Rated current | A | 232 | ||||
| Weight of motor | kg | 970 | ||||
| Note: |
| 1. The above parameters and color are designed according to customer needs, the parameters are for reference only, the final parameters of the drawings shall prevail; |
| 2. According to user requirements and needs, to join way: air/water cooling, oil content, weight, appearance size according to the need to design, to the final order and the technical agreement shall prevail; |
|
3. Frequency Inverters (ABB&SIEMENS customized). 4. 1 year warranty, 5 years warranty for air end |
