| Place of Origin | China |
| Brand Name | Shanghai Rotorcomp |
| Certification | ISO,CE.TUV.BV |
| Model Number | HDR |

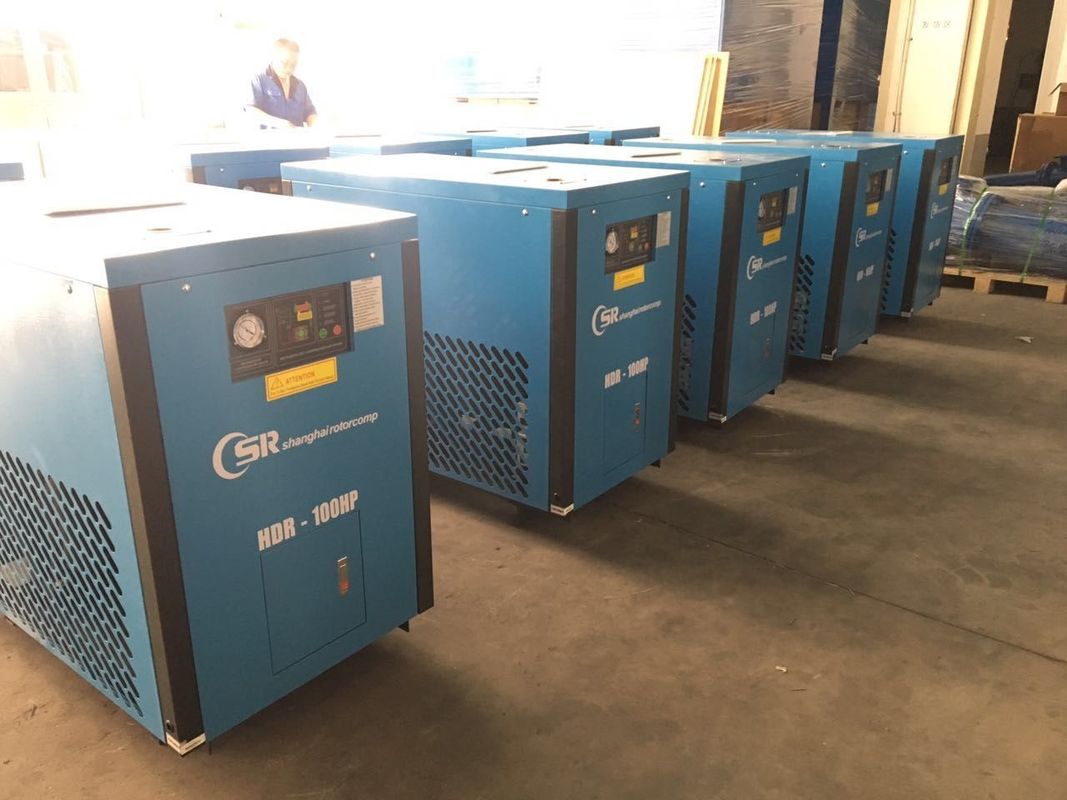

Super Cooling 100HP 13.5m3/min Cheaper Economical Refrigerated Air Dryer for Air compressor
Capacity: 13.5m3/min
Working Pressure: ≤13bar
Max.inlet temp: 82°C Max Ambient Temp:50°C
Min.Ambient Temp: 5°C Refrigerant: R22, R407C,R134A,R410A
Cooling type: Air-cooled&Water-cooled Dew Point: 2°C ~8°C
Why compressed air purification?
Compressor alone is not enough.In most cases,untreated compressed air is naturally dirty,oily and wet.This condition is certainly notdesirable for industrial applications and could directly or indirectlylead to the following situations.
• Reduction in efficiency of expensive pneumatic tools & machineries
• Frequent costly maintenance of pneumatic tools & machineries
• Lost of production hours with increased machines down time
• High rejection rate of products
• Inability to meet delivery deadlines
• Unsatisfied customers
1. Shanghai rotorcomp compressor dryer Using filtered liquid separator American HANKISON filter, Japanese Panasonic & Korean LG Refrigeration compressor to keep durability and stability. Gas-liquid separation effect completely to avoid secondary evaporation of moisture, cold and dry to ensure that the important role of the drying effect, it is more efficient than the cyclone separation, separation efficiency 99.99%.
2. Galvanized copper piping systems using internal working pressure 0.3-4.5MPa arbitrary choice.
3. Made of stainless steel tubing for pharmaceutical, food industry, acid and alkali corrosion.
| Model | Cpacity m3/min |
Power Kw | Voltage V/50Hz |
connection | Dimension L×W×H |
Weight Kg |
| HDR-100HP | 13.5 | 2.5 | 380 | Rc2″ | 1180×670×1080 | 260 |
| Note: |
| 1. The above parameters and color are designed according to customer needs, the parameters are for reference only, the final parameters of the drawings shall prevail; |
| 2. According to user requirements and needs, to join way: air/water cooling, oil content, weight, appearance size according to the need to design, to the final order and the technical agreement shall prevail; |
| 3. 1 year warranty, 2 years warranty for refrigerated compressor |
