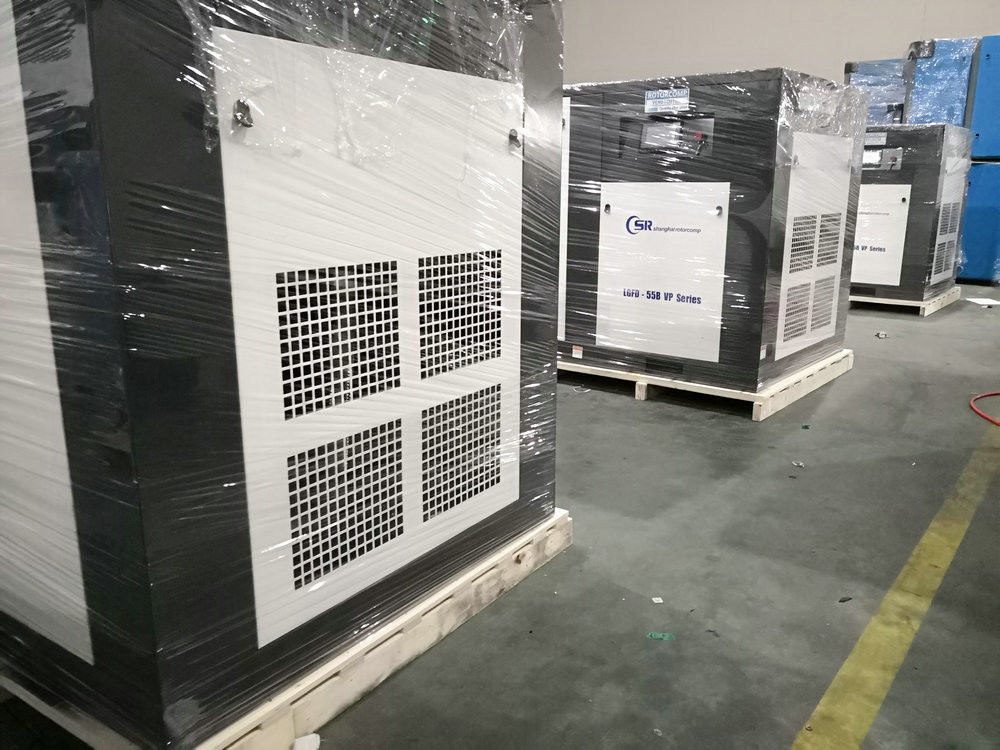

Electronic VSD Screw Compressor With Belt Driven Schneider PLC Control
| Place of Origin | Germany |
|---|---|
| Brand Name | Shanghai Rotorcomp |
| Certification | ISO.TUV,CE,GS |
| Model Number | LGFD VSD screw compressor |
| Minimum Order Quantity | Min.:1set |
| Price | Negotiable |
| Packaging Details | Exported Wooden Package |
| Delivery Time | 12-15 working days |
| Payment Terms | Western Union, T/T, L/C, D/P, D/A |
| Supply Ability | 3,000 sets/per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Driven | Belt Driven | Control | Schneider PLC Control |
|---|---|---|---|
| VSD Inverter | Danfoss Danmark | Motor | IE3 VSD 93.8% High Efficient Motor |
| Rated Power | 90Kw/120Hp | Starting Mode | VSD/VFC |
| Cooling Air Flow | 450m3/min | Service Factor | 1.2 |
| Frequency Adjustment | 15%-100% | ||
| High Light | rotary screw type air compressor,vsd air compressor |
||
Product Description
Electronic VSD Screw Compressor With Belt Driven Schneider PLC Control
Energy conservation
Each set of air compressor meets national energy conservation standards
Rotorcomp high efficient air end made in Germany
High efficient motor engine
Direct drive and no gear energy saving loss
High efficient centrifugal fan
Inverter oil cooling fan and suction cooling down
Germany suction valve
Why Electronic Variable Speed Drives Air Compressor?
The variable frequency compressor is a competitive product among the high-grade machines, the quality of air end of servo variable frequency compressor is excellent. The advanced molded lines ensure the minimum specific power.
It is designed in the FEM strength analysis, to ensure the stability and reliability of each part, and to realize long term operation with no faults, low noise and long life.
Advantages:
1. World-leading "Made in Germany" Rotorcomp screw air end
2,25-30% energy saving than normal VSD compressor
3. wider 15-60hz adjustable-speed drive system
4. Intelligent touchable PLC control system
5. Double higher efficient VSD energy-saving motors in IE3 CE&MEPS
6. Unique driving guard system
7. ISO, TUV, GA, CE,SGS certificates
Shanghai rotorcomp Variable speed drive Screw Air Compressor adapting the amount of free air delivered to compressed air demand is the most economical operating method where demand for compressed air fluctuates considerably or where the stored volume is very small or where operating below peak load.
The benefits of rotorcomp VSD air screw compressor
Reduce Energy Consumption
The costs of power consumption account for 70% or more of all costs during the operation. The electric charges of running air compressor account for more than 40% of all the electric charges in the factory.
The requirement of compressed air fluctuates violently in different time every day, different weeks, or different months every year. The range of fluctuation is 40% to 80%, Rotorcomp adjustable-speed drive screw compressor can meet the user’s requirement exactly. When the user needs less air delivery, Variable frequency inverter can reduce the capacity and reduce the power consumption at the same.
90KW air cooling compressor parameters
| ITEM | UNIT | MODEL | ||||
| LGFD-16/8 | LGFD-13.5/10 | LGFD-11.6/13 | ||||
| Discharge capacity | m3/min | 16 | 13.5 | 11.6 | ||
| Working pressure | MPa | 0.8 | 1.0 | 1.3 | ||
| Cooling style | Air cooling | |||||
| Working style | one stage, continuous working | |||||
| Driven method | Direct driven | |||||
| Inlet status | Temperature | ℃ | ≤40 | |||
| Pressure | MPa | Atmospheric pressure | ||||
| Relative humidity | ≤100% | |||||
| Noise | dB(A) | ≤80 | ||||
| Oil content | ppm | ≤2 | ||||
| Drive rotor speed | rpm | 1345-2961 | ||||
| Dust particle size | μm | 1μm | ||||
| Cooler outlet temperature | ℃ | Ambient temperature＋10 | ||||
| Cooling air flow | m3/min | 450 | ||||
| Displacement control mode | Load/empty + stop for too long empty status | |||||
| Safety valve set pressure | MPa | 0.88 | 1.1 | 1.43 | ||
| Lubricating oil volume | L | 80 | ||||
| Lubricating oil brand | ROTORCOMP | |||||
| Air outlet connection size | G2 | |||||
| Drain connection size | G1/2 | |||||
| Dimension | L | mm | 1750 | |||
| W | mm | 1200 | ||||
| H | mm | 1500 | ||||
| Net Weight | kg | 1850 | ||||
| Motor | Type | Y2280M-2 | ||||
| Rating | rpm | 892-2961 | ||||
| Power | KW | 90 | ||||
| Service coefficient | 1.2 | |||||
| Degree of protection | IP55 | |||||
| Insulation class | F(B) | |||||
| Startup mode | Reduced voltage | |||||
| Voltage | V | 380 | ||||
| Frequency | Hz | 50 | ||||
| Rated current | A | 160 | ||||
| Weight of motor | kg | 540 | ||||
| Note: |
| 1. The above parameters and color are designed according to customer needs, the parameters are for reference only, the final parameters of the drawings shall prevail; |
| 2. According to user requirements and needs, to join way: air/water cooling, oil content, weight, appearance size according to the need to design, to the final order and the technical agreement shall prevail; |
|
3. Frequency Inverters (ABB&SIEMENS customized). 4. 1 year warranty, 5 years warranty for air end |
