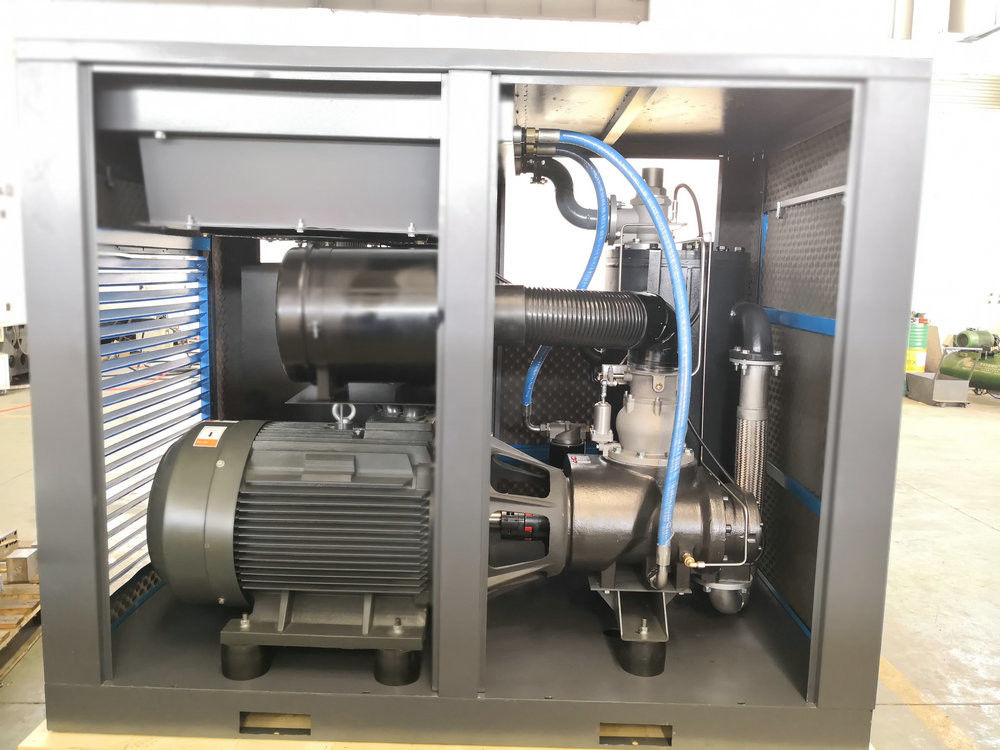

55KW VFC Screw VSD Screw Compressor Stability Running TUV Certification
  • 55KW VFC Screw VSD Screw Compressor Stability Running TUV Certification

55KW VFC Screw VSD Screw Compressor Stability Running TUV Certification

Place of Origin Germany
Brand Name Shanghai Rotorcomp
Certification ISO.TUV,CE,GS
Model Number LGFD VSD screw compressor
Product Details
Name:
VSD Screw Compressor
Power:
55KW
Inverter:
Danmark Made
Motor:
IE3 VSD Super High Efficient Motor
Cooling Air Flow:
11200m3/h
Control Mode:
Intelligent Controller
Startup Mode:
Frequency Conversion Starting
Contractor:
PLC
Controller:
Colorful Touchable Smart Control
High Light:

rotary screw type air compressor

,

oil injected screw compressor

Payment & Shipping Terms
Minimum Order Quantity
Min.:1set
Price
Negotiable
Packaging Details
Exported Wooden Package
Delivery Time
12-15 working days
Payment Terms
Western Union, T/T, L/C, D/P, D/A
Supply Ability
3,000 sets/per month
Product Description

55KW VFC Screw VSD Screw Compressor Stability Running TUV Certification

Why Variable Speed Drive screw air compressor?

1) High efficiency,cost-effective

2) Better stability with frequency starting

3) Constant pressure air supply

4) Energy-saving and long running

5) Pretty good after-sale service

Advantages:

1. World-leading "Made in Germany" Rotorcomp screw air end
2,25-30% energy saving than normal VSD compressor
3. wider 15-60hz adjustable-speed drive system
4. Intelligent touchable PLC control system
5. Double higher efficient VSD energy-saving motors in IE3 CE&MEPS
6. Unique driving guard system
7. ISO, TUV, GA, CE,SGS certificates


Shanghai rotorcomp Variable speed drive Screw Air Compressor adapting the amount of free air delivered to compressed air demand is the most economical operating method where demand for compressed air fluctuates considerably or where the stored volume is very small or where operating below peak load.



The benefits of rotorcomp VSD air screw compressor

>Smooth starts and stops within seconds
>Continuous volume flow regulation from 25-100%
>Adjustable-speed drive from 15-60hz
>minimization of wear and maintenance costs
>No power-peaks during start-up
> nearly no idling


55KW VSD air cooling compressor parameters



ITEM UNIT MODEL
LGFD-55 VP
Free air delivery m3/min 2.50-10.00 2.25-9.00 2.00-7.80 1.65-6.50
Max. working pressure MPa 0.8 1.0 1.3 1.5
Compressor type   Oil inject screw compressor
Cooling type   Air cooling
Driven type   Belt driven
Inlet status Temperature ≤45
Pressure MPa Atmospheric pressure
Relative humidity   ≤90%
Noise Level dB(A) ≤76
Residual oil content ppm ≤2
Drive rotor speed rpm 1000-3950 800-3170 750-2900 700-2600
Compressed air outlet temperature Ambient temperature+10
Cooling air flow m3/hr 11200
Control mode   Intelligent controller
Safety valve set pressure MPa 0.88 1.10 1.43 1.60
Lubricating oil volume L 50
Lubricating oil brand   ROTORCOMP
Compressed air outlet connection   G2
Dimension L mm 1750
W mm 1200
H mm 1500
Net Weight kg 1280
Motor Model   Y2225M-2
Speed rpm 890-3560
Rated Power KW 55
Service factor   1.2
Protection type   IP55
Insulation class   F
Startup mode   Frequency conversion starting
Voltage V 380(Special on request)
Frequency Hz 15-60
Rated current A 103
Weight of motor kg 387
Note:
1. The above parameters and color are designed according to customer needs, the parameters are for reference only, the final parameters of the drawings shall prevail;
2. According to user requirements and needs, to join way: air/water cooling, oil content, weight, appearance size according to the need to design, to the final order and the technical agreement shall prevail;

3. Frequency Inverters (ABB&SIEMENS customized).
4. 1 year warranty, 5 years warranty for air end
