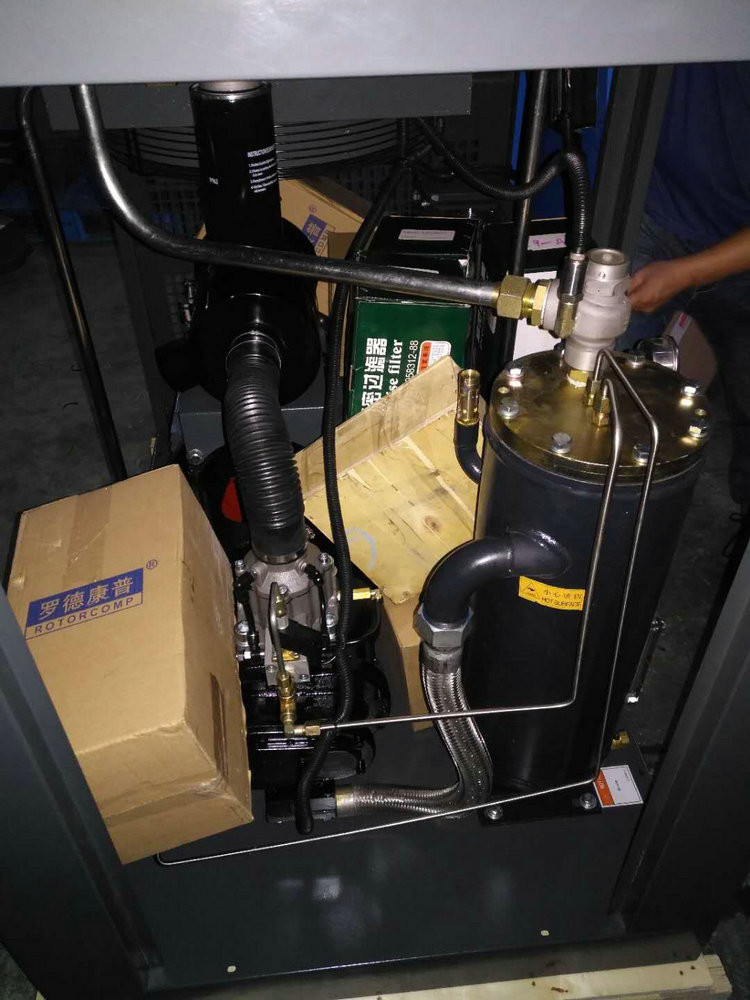

Direct Driven VSD Screw Compressor Extra Low Noise Emission 5400m3/H
  • Direct Driven VSD Screw Compressor Extra Low Noise Emission 5400m3/H

Direct Driven VSD Screw Compressor Extra Low Noise Emission 5400m3/H

Place of Origin Germany
Brand Name Shanghai Rotorcomp
Certification ISO.TUV,CE,GS
Model Number LGFD VSD screw compressor
Product Details
Driven:
Direct Driven
Advantage:
Low Noise Emission
Advanced Design:
Design In Germany
Inverter:
Danmark Made
Motor:
VSD IE3 Super High Efficient Motor
Rated Power:
11Kw/15Hp
Cooling Air Flow:
5400m3/h
Control Mode:
Intelligent Controller
Service Factor:
1.2
Contractor:
PLC
High Light:

rotary screw type air compressor

,

oil injected screw compressor

Payment & Shipping Terms
Minimum Order Quantity
Min.:1set
Price
Negotiable
Packaging Details
Exported Wooden Package
Delivery Time
12-15 working days
Payment Terms
Western Union, T/T, L/C, D/P, D/A
Supply Ability
3,000 sets/per month
Product Description

Direct Driven VSD Screw Compressor Extra Low Noise Emission 5400m3/H



Extra low noise emission



Develop by Jersey North America Development Center--- low noise SKY air end

Heavy machinery design

Direct driven and no gear noise

Low-speed centrifugal fan and inverter oil cooling fan

Equipped with air intake Muffler

World class lowest noise emission



Advantages:



1. World-leading "Made in Germany" Rotorcomp screw air end
2,25-30% energy saving than normal VSD compressor
3. wider 15-60hz adjustable-speed drive system
4. Intelligent touchable PLC control system
5. Double higher efficient VSD energy-saving motors in IE3 CE&MEPS
6. Unique driving guard system
7. ISO, TUV, GA, CE,SGS certificates



Shanghai rotorcomp Variable speed drive Screw Air Compressor adapting the amount of free air delivered to compressed air demand is the most economical operating method where demand for compressed air fluctuates considerably or where the stored volume is very small or where operating below peak load.


The benefits of rotorcomp VSD air screw compressor

>Smooth starts and stops within seconds
>Continuous volume flow regulation from 25-100%
>Adjustable-speed drive from 15-60hz
>minimization of wear and maintenance costs
>No power-peaks during start-up
> nearly no idling


VSD: DRIVING DOWN YOUR ENERGY COSTS



Over 70% of a compressor’s lifecycle cost is taken up by the energy it consumes. Moreover, the generation of compressed air can account for more than 40% of a plant’s total electricity bill. To cut your energy costs, Atlas Copco has pioneered Variable Speed Drive (VSD) technology for several decades.



VSD leads to major energy savings, reducing the consumption of energy producing fuels and protecting the environment for future generations. Thanks to continual investments in this technology, we offer the widest range of integrated VSD compressors on the market.



What is VSD technology?



In almost every production environment, air demand fluctuates depending on different factors (time of the day, week or even month). Extensive measurements and studies of compressed air demand profiles show that many compressors have substantial variations in air demand.

Only 8% of all installations have a more stable air demand. Tests prove that, even in this case, VSD compressors save energy.



INCREASE YOUR SAVINGS WITH ENERGY RECOVERY



The Kyoto directives and the continuing depletion of traditional energy sources mean that businesses throughout the world are making commitments to significantly reduce overall energy consumption. Through innovative products and solutions.

Rotorcomp helps you achieve your goals in this area. When it comes to compressed air production – where energy costs can constitute 70% of total lifecycle costs – saving energy can also lead to substantial cost savings.





11KW VSD air cooling compressor parameters



ITEM UNIT MODEL
LGFD-11 VP
Free air delivery m3/min 0.45-1.79 0.40-1.58 0.33-1.32 0.30-1.17
Max. working pressure MPa 0.8 1.0 1.3 1.5
Compressor type   Oil inject screw compressor
Cooling type   Air cooling
Driven type   Belt driven
Inlet status Temperature ≤45
Pressure MPa Atmospheric pressure
Relative humidity   ≤90%
Noise Level dB(A) ≤70
Residual oil content ppm ≤2
Drive rotor speed rpm 1625-6500 1350-5400 1200-4800 1090-4350
Compressed air outlet temperature Ambient temperature+10
Cooling air flow m3/hr 5400
Control mode   Intelligent controller
Safety valve set pressure MPa 0.88 1.10 1.43 1.60
Lubricating oil volume L 10
Lubricating oil brand   ROTORCOMP
Compressed air outlet connection   G1
Dimension L mm 800
W mm 750
H mm 900
Net Weight kg 440
Motor Model   Y2160M1-2 VP
Speed rpm 875-3510
Rated Power KW 11
Service factor   1.2
Protection type   IP55
Insulation class   F
Startup mode   Frequency conversion starting
Voltage V 380(Special on request)
Frequency Hz 15-60
Rated current A 21.8
Weight of motor kg 115



Elastic coupling



Screw main engine and the main motor between the use of flexible coupling connection, the maximum degree of operation to ensure reliable connection, high transmission efficiency, the host and the main motor of the neutral excellent, easy to carry on the oil to the maintenance, single light weight, on-site Easy to maintain.
