VSD Screw Compressor
>
|
| Place of Origin | Germany |
| Brand Name | Shanghai Rotorcomp |
| Certification | ISO.TUV,CE,GS |
| Model Number | VSD Screw Compressor |

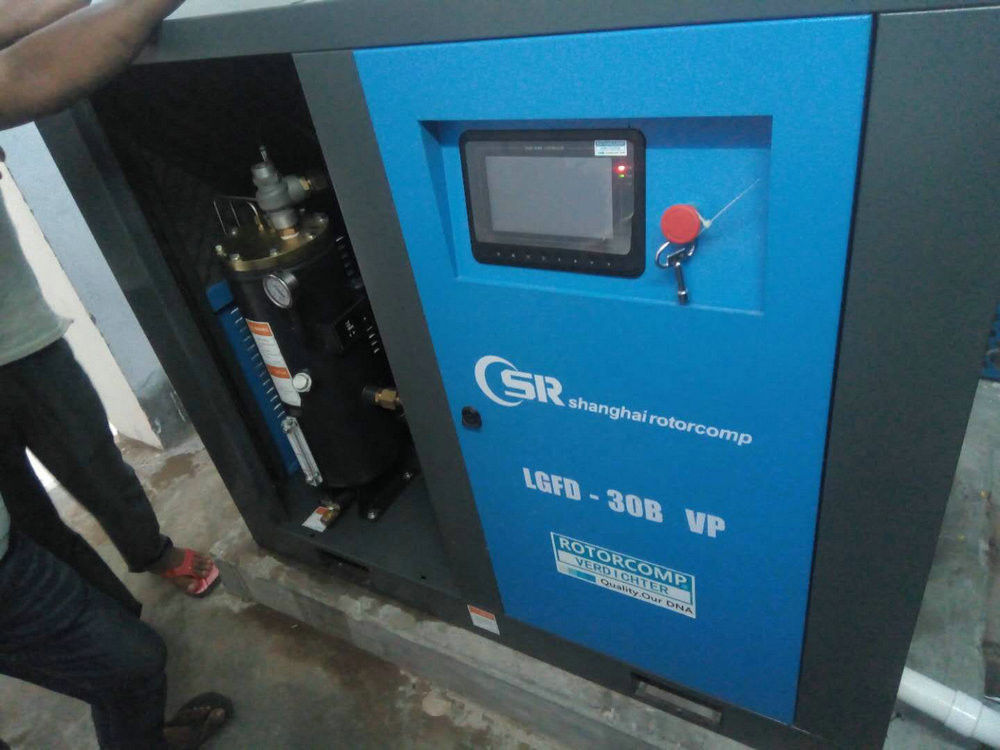

High Efficiency VSD Screw Compressor 25-30% Energy Saving ISO Certifacate
Offering best-in-class performance and total reliability, our products answer your advanced needs.
Industry-leading Free Air Delivery.
The lowest power consumption and noise emission in the industry.
Excellent-quality.
Easy monitoring and maintenance.
1. World-leading "Made in Germany" Rotorcomp screw air end
2, 25-30% energy saving than normal VSD compressor
3. wider 15-60hz adjustable-speed drive system
4. Intelligent touchable PLC control system
5. Double higher efficient VSD energy-saving motors in IE3 CE&MEPS
6. Unique driving guard system
7. ISO, TUV, GA, CE,SGS certificates
Shanghai rotorcomp Variable speed drive Screw Air Compressor adapting the amount of free air delivered to compressed air demand is the most economical operating method where demand for compressed air fluctuates considerably or where the stored volume is very small or where operating below peak load.
>Smooth starts and stops within seconds
>Continuous volume flow regulation from 25-100%
>Adjustable-speed drive from 15-60hz
>minimization of wear and maintenance costs
>No power-peaks during start-up
> nearly no idling
The costs of power consumption account for 70% or more of all costs during the operation. The electric charges of running air compressor account for more than 40% of all the electric charges in the factory.
The requirement of compressed air fluctuates violently in different time every day, different weeks, or different months every year. The range of fluctuation is 40% to 80%, Rotorcomp adjustable-speed drive screw compressor can meet the user’s requirement exactly. When the user needs less air delivery, Variable frequency inverter can reduce the capacity and reduce the power consumption at the sam
| Model | Air flow(m3/min)* | Power(kw) | In/Outlet | Noise | Dimension | Weight | ||||
| 8bar | 10bar | 13bar | 15bar | Motor | Motor(Fan) | dB(A)** | L×W×H in mm | kg | ||
| LGFD-5.5 VP | 0.22-0.87 | 0.19-0.75 | 0.16-0.61 | 0.14-0.53 | 5.5 | 0.09 | G1 | 69 | 900×750×900 | 255 |
| LGFD-7.5 VP | 0.30-1.20 | 0.26-1.04 | 0.23-0.90 | 0.2-0.80 | 7.5 | 0.09 | G1 | 69 | 900×750×900 | 260 |
| LGFD-11 VP | 0.45-1.79 | 0.40-1.58 | 0.35-1.32 | 0.3-01.17 | 11 | 0.18 | G1 | 70 | 950×800×1290 | 390 |
| LGFD-15 VP | 0.60-2.40 | 0.55-2.15 | 0.46-1.84 | 0.42-1.66 | 15 | 0.18 | G1 | 70 | 950×800×1290 | 400 |
| LGFD-20 VP | 0.75-3.00 | 0.73-2.90 | 0.65-2.52 | 0.55-2.02 | 18.5 | 0.37 | G1 | 71 | 1250×960×1300 | 755 |
| LGFD-22 VP | 0.88-3.51 | 0.80-3.16 | 0.68-2.71 | 0.62-2.45 | 22 | 0.37 | G1 | 71 | 1250×960×1300 | 780 |
| LGFD-30 VP | 1.25-4.88 | 1.10-4.32 | 0.95-3.64 | 0.82-3.25 | 30 | 0.75 | G1-1/4 | 71 | 1440×1006×1296 | 1250 |
| LGFD-37 VP | 1.46-5.83 | 1.31-5.21 | 1.11-4.44 | 1.02-4.01 | 37 | 0.75 | G1-1/4 | 73 | 1440×1006×1296 | 1400 |
| LGFD-45 VP | 1.77-7.08 | 1.58-6.30 | 1.36-5.43 | 1.25-4.94 | 45 | 1.1 | G1-1/4 | 75 | 1440×1006×1296 | 1450 |
| LGFD-55 VP | 2.33-9.32 | 2.09-8.33 | 1.77-7.05 | 1.58-6.31 | 55 | 1.1 | G2 | 75 | 1600×1200×1650 | 1650 |
| LGFD-75 VP | 3.1-12.31 | 2.8-11.13 | 2.44-9.61 | 2.19-8.74 | 75 | 1.1 | G2 | 75 | 1600×1200×1650 | 1800 |
| LGFD-90 VP | 4.2-16.45 | 3.6-14.26 | 3.0-11.72 | 2.70-10.8 | 90 | 2.2 | G2 | 75 | 2000×1580×1790 | 2700 |
| LGFD-110 VP | 5.1-20.26 | 4.4-17.48 | 3.6-14.25 | 3.3-13.05 | 110 | 2.2 | G2 | 78 | 2500×1700×1900 | 3100 |
| LGFD-132 VP | 5.8-23.08 | 5.2-20.54 | 4.5-17.65 | 4.2-16.05 | 132 | 2.2 | G2 | 78 | 2500×1700×1900 | 3250 |
| Note: |
| 1. The above parameters and color are designed according to customer needs, the parameters are for reference only, the final parameters of the drawings shall prevail; |
| 2. According to user requirements and needs, to join way: air/water cooling, oil content, weight, appearance size according to the need to design, to the final order and the technical agreement shall prevail; |
|
3. Frequency Inverters (ABB&SIEMENS customized). 4. 1 year warranty, 5 years warranty for air end |
