Durable Small Screw Compressor / High Pressure Screw Compressor 22KW
  • Durable Small Screw Compressor / High Pressure Screw Compressor 22KW

Durable Small Screw Compressor / High Pressure Screw Compressor 22KW

Place of Origin Germany
Brand Name Shanghai Rotorcomp
Certification ISO.TUV,CE,GS
Model Number LGCD-22 YVP
Product Details
Name:
Small Screw Compressor
Advantage:
Durable
Power:
22KW
Compressor Type:
High Pressure Screw Compressor
Cooling Type:
Air Cooling
Noise Level:
≤70dB(A)
Residual Oil Content:
≤2ppm
Cooling Air Flow:
7800m3/hr
Highlight:

vsd air compressor

,

oil injected screw compressor

Payment & Shipping Terms
Minimum Order Quantity
Negotiation
Price
Negotiation
Packaging Details
Exported Wooden Package
Delivery Time
12-15 working days
Payment Terms
Western Union, T/T, L/C, D/P, D/A
Supply Ability
3,000 sets/per month
Product Description

Durable Small Screw Compressor / High Pressure Screw Compressor 22KW



Smart Integration



1. A Revolutionary Advancement

Going far beyond combining the compressor, dryer and filters in one package, smart integration also:

• Eliminates vulnerable interconnecting piping
• Minimizes pressure losses and drops
• Integrates the compressor, dryer and filter into an energy-reducing, optimized system
• Incorporates the entire supply-side system into one whisper-quiet package, enabling installation virtually anywhere
• Provides generous space to promote cooling and to allow unobstructed service



2. Dry and Clean Compressed Air



The Right Air Quality to Do the Job

• All Total Air System packages come fully equipped with an integral, energy-saving air treatment center including a high-performance air dryer and filtration pack to remove water, oil and particles from the air stream.
• All components are perfectly matched to deliver the right air quality to increase air-powered tool and system equipment life.



3. Life time benefits



(Benefits are virtually endless )

• Plug-and-play simplicity--eliminates the leading causes of failure in air systems: incorrect sizing and installation
• Virtually no install costs--eliminates 80% of install time, material and costs
• Integral packaging saves valuable floor space for other uses.
• Lifetime power savings through highly efficient components
• Increased productivity through better air quality-Eliminates water and corrosion resulting in extended tool and equipment life



Small Screw Compressor features:



State-of-the-art Screw Element

  • Original Germany Rotorcomp srew rotors
  •
  • Advanced SAP profile design
  • The material of the rotors is American specialty steel

Efficient Separation System

  • Reduction of pressure drops and energy costs
  • Low oil consumption ensures minimal maintenance costs and long compressor
  •
  • lifetime

Quality air with low oil content:

  • three step air-oil separation (centrifuge, gravity, filter)
  • oil content: less than 3 ppm by weight

-hinged cover for easy separator element change



Hydraulic Oil Pipe and Air Pipe

  • High temperature resistant (400℃=752℉) and low temperature resistant(-270℃=518℉), high pressure resistant
  • Ultra-long life(80 years), completely leak free and maintenance free

Intelligent Control and Protection

  • Schneider electrical elements with original package from German, safe and reliable
  • Reasonable, simple and clear wiring, easy for maintenance
  • Good protection function ensure the stable running of the compressor unit

Advanced Computer Controller and Monitoring System

  • Overall system performance status with pro-active service indications, alarms for malfunctions and safety shutdowns
  • All monitoring and control functions via one interface, English display
  • Wide communication possibilities

Integration possible in many process control systems.



Sample calculation of energy saving:



For example a standard 55kW screw compressor delivers air at 70% loading and operates 5800 hours per years. Taking electricity cost of USD 0.15/kWH, the additional energy consumed as comparing with VSD compressor will be:

A. Energy consumed during unload operation assuming unload shaft power absorbed is 45% of full load amount: 30% unload times x loss during unload time = (45% x 55kW) x 5800 hour/year x USD 0.15 = USD 6,460/year.

B. Energy consumed due to cut-in/cut-out pressure band of 2 bar.g assuming this counts for 14% of full load amount: 70% loading time x additional 2 bar.g of differential pressure loss = (14% x 55kW) x 5800 hour/year x USD 0.15 = USD 4,689/year.

Total energy saved by using VSD compressor will be = USD 6,460/year + USD 4,689/year = USD 11,149/year.



In a conclusion, a VSD compressor can save annually the electricity cost of USD 11,149, 3 years can then save USD 11,149 x 3 = USD 33,447 which could be more than capital investment for purchasing another VSD compressor.



22KW VSD air cooling compressor parameters



ITEM UNIT MODEL
LGCD-22 YVP
Free air delivery m3/min 0.90-3.60 0.80-3.20 0.70-2.75 0.65-2.45
Max. working pressure MPa 0.8 1.0 1.3 1.5
Compressor type   Oil inject screw compressor
Cooling type   Air cooling
Driven type   Direct driven
Inlet status Temperature ≤45
Pressure MPa Atmospheric pressure
Relative humidity   ≤90%
Noise Level dB(A) ≤72
Residual oil content ppm ≤2
Drive rotor speed rpm 1425-2930
Compressed air outlet temperature Ambient temperature+10
Cooling air flow m3/hr 7800
Control mode   Intelligent controller
Safety valve set pressure MPa 0.88 1.10 1.43 1.60
Lubricating oil volume L 15
Lubricating oil brand   ROTORCOMP
Compressed air outlet connection   G1
Dimension L mm 1310
W mm 850
H mm 1160
Net Weight kg 570
Motor Model   Y2180M2-2 YVP
Speed rpm 1425-2930
Rated Power KW 22
Service factor   1.2
Protection type   IP23/IP55
Insulation class   F
Startup mode   Frequency conversion starting
Voltage V 380(Special on request)
Frequency Hz 30-120
Rated current A 42.2
Weight of motor kg 173

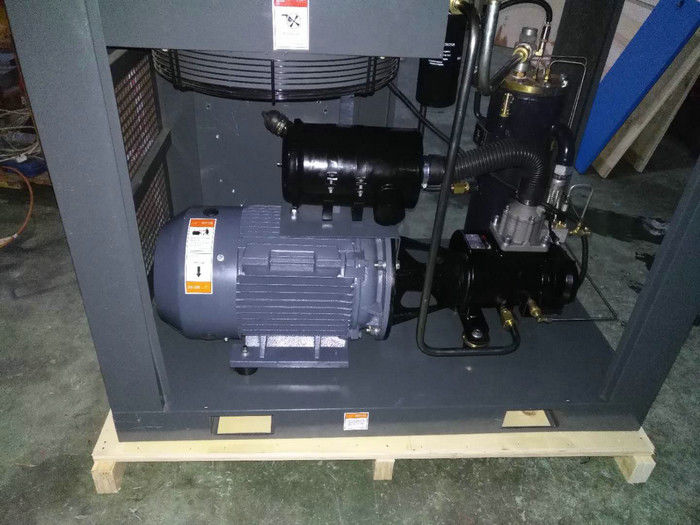

Durable Small Screw Compressor / High Pressure Screw Compressor 22KW 0

Durable Small Screw Compressor / High Pressure Screw Compressor 22KW 1



Our Advantage:



Every permanent magnet variable-frequency air compressor produced by Wan Beardsley through sophisticated air compressor vector frequency control technology reaches national grade-2 energy-saving effect, some products have grade-one energy efficiency.

Shanghai rotorcomp screw air compressor is featured by high efficiency, low noise, small vibration, small volume, low expense, convenient maintenance, beautiful appearance and so on,



tThe product uses intelligent module control system and favorable human-machine interface to realize fault self diagnosis, servo-type gas flow automatic adjustment and 24-hour unattended operation, and it belongs to one of the most advanced machine type both home and abroad.

At present, Our PM VSD screw air compressors include: integrated permanent magnet variable-frequency series, non-inductive permanent magnet variable-frequency series, s

ervo permanent magnet variable-frequency series

, low-pressure permanent magnet variable-frequency series,

two-stage compression permanent magnet variable-frequency series,

oil cooling permanent magnet variable-frequency series of screw air compressors,

refrigerated dryer series, adsorption dryer series, combined dryer series, high-efficiency precision dryer, gasholder, etc.

Products are extensively applied to industries like machinery, furniture, textile, chemical fiber, medicine, food, metallurgy, electronics, war industry, environmental protection, etc



Shanghai rotorcomp points of each installation with a variety of sensors can be. the measurement of the running state and the all Chinese display on the screen, simple operation, high reliability. It has the function of self checking root, according to the user demand volume, automatic adjustment of running state. the interests of customers: monitoring and advanced



communication systems make the operation of the compressor is more reliable, higher efficiency and lower maintenance costs, the computer control system to make the machine unload loss minimum, prolong the service life of the compressor.

Shanghai rotorcomp Air System can be installed where you need compressed air. Its low noise operation and integrated air treatment equipment eliminates the need for a separate compressor room. All our compressors are tested and delivered ready for use. The integrated options will reduce installation costs and pressure drops significantly, thus saving additional energy cost.



Shanghai rotorcomp compressors have integrated dryer, filters and oil-water separator available to protect your compressed air network. This quality air expands the life of equipment, increasing efficiency and ensuring quality in your final product.
