Oil Free Commercial Air Compressor / Vertical Screw Air Compressor
|Place of Origin||Germany|
|Brand Name||Shanghai Rotorcomp|
|Minimum Order Quantity||Negotiation|
|Packaging Details||Exported Wooden Package|
|Delivery Time||12-15 working days|
|Payment Terms||Western Union, T/T, L/C, D/P, D/A|
|Supply Ability||3,000 sets/per month|
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Name||Commercial Air Compressor||Advantage||Oil Free|
|Power||75KW||Compressor Type||Screw Air Compressor|
|Cooling Type||Air Cooling||Noise Level||≤70dB(A)|
|Residual Oil Content||≤2ppm||Cooling Air Flow||12200m3/hr|
vsd air compressor,
oil injected screw compressor
Oil Free Commercial Air Compressor / Vertical Screw Air Compressor
1. A Revolutionary Advancement
Going far beyond combining the compressor, dryer and filters in one package, smart integration also:
• Eliminates vulnerable interconnecting piping
• Minimizes pressure losses and drops
• Integrates the compressor, dryer and filter into an energy-reducing, optimized system
• Incorporates the entire supply-side system into one whisper-quiet package, enabling installation virtually anywhere
• Provides generous space to promote cooling and to allow unobstructed service
2. Dry and Clean Compressed Air
The Right Air Quality to Do the Job
• All Total Air System packages come fully equipped with an integral, energy-saving air treatment center including a high-performance air dryer and filtration pack to remove water, oil and particles from the air stream.
• All components are perfectly matched to deliver the right air quality to increase air-powered tool and system equipment life.
3. Life time benefits
(Benefits are virtually endless )
• Plug-and-play simplicity--eliminates the leading causes of failure in air systems: incorrect sizing and installation
• Virtually no install costs--eliminates 80% of install time, material and costs
• Integral packaging saves valuable floor space for other uses.
• Lifetime power savings through highly efficient components
• Increased productivity through better air quality-Eliminates water and corrosion resulting in extended tool and equipment life
Air compressor features:
Premium Efficiency Drive Motor
- Premium efficiency Totally Enclosed Fan Cooled (TEFC)IP55 motor (Class F insulation) SF1.2 protects against dust and chemicals etc.
- Long-term stable operation even in harsh environments up to 45℃ (113℉)
Superior Air Filter
- Two-stage dust removal and filtering system with efficiency of up to 99.9% even in heavy-duty environments
- Extends the service life of the compressor parts and components, ensures air quality.
Efficient Separation System
- Reduction of pressure drops and energy costs
- Low oil consumption ensures minimal maintenance costs and long compressor
Quality air with low oil content:
- three step air-oil separation (centrifuge, gravity, filter)
- oil content: less than 3 ppm by weight
-hinged cover for easy separator element change
Hydraulic Oil Pipe and Air Pipe
- High temperature resistant (400℃=752℉) and low temperature resistant(-270℃=518℉), high pressure resistant
- Ultra-long life(80 years), completely leak free and maintenance free

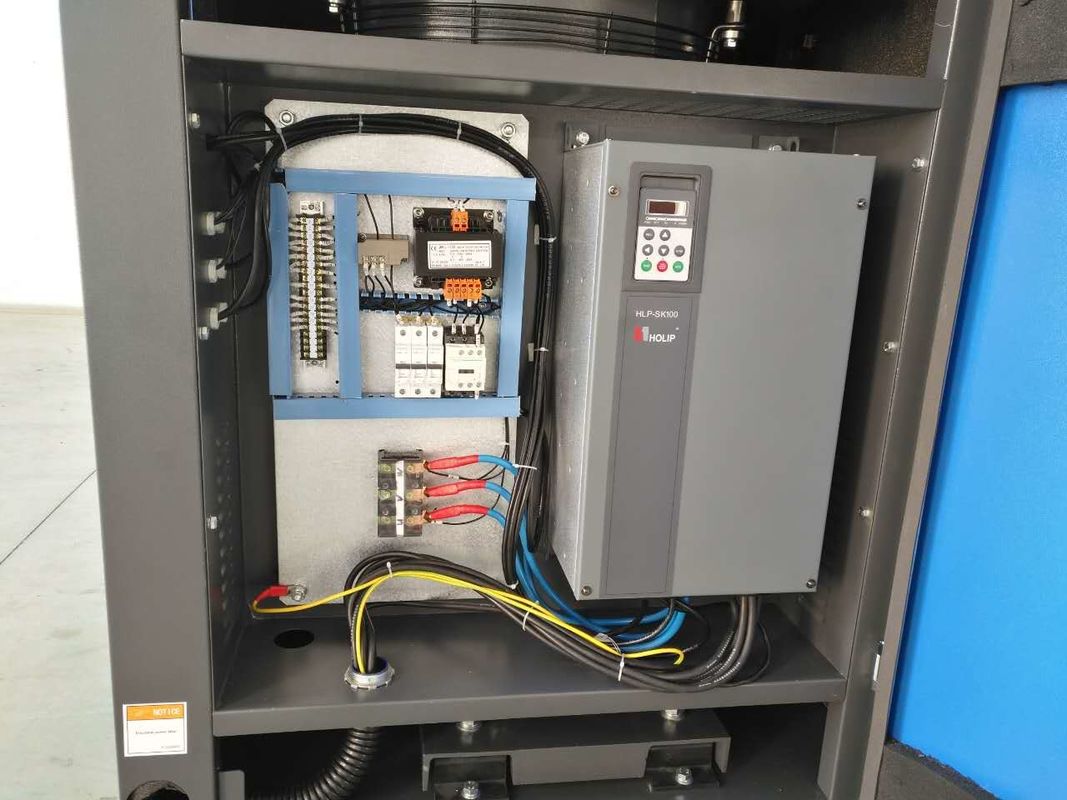

Intelligent Control and Protection
- Schneider electrical elements with original package from German, safe and reliable
- Reasonable, simple and clear wiring, easy for maintenance
- Good protection function ensure the stable running of the compressor unit
Advanced Computer Controller and Monitoring System
- Overall system performance status with pro-active service indications, alarms for malfunctions and safety shutdowns
- All monitoring and control functions via one interface, English display
- Wide communication possibilities
Integration possible in many process control systems.
90KW VSD air cooling compressor parameters
|Free air delivery||m3/min||4.20-16.50||4.80-14.30||3.00-12.00||2.75-11.00|
|Max. working pressure||MPa||0.8||1.0||1.3||1.5|
|Compressor type||Oil inject screw compressor|
|Cooling type||Air cooling|
|Driven type||Direct driven|
|Residual oil content||ppm||≤2|
|Drive rotor speed||rpm||1425-2960|
|Compressed air outlet temperature||℃||Ambient temperature＋10|
|Cooling air flow||m3/hr||12200|
|Control mode||Intelligent controller|
|Safety valve set pressure||MPa||0.88||1.10||1.43||1.60|
|Lubricating oil volume||L||70|
|Lubricating oil brand||ROTORCOMP|
|Compressed air outlet connection||G2|
|Startup mode||Frequency conversion starting|
|Voltage||V||380(Special on request)|
|Weight of motor||kg||566|
Every permanent magnet variable-frequency air compressor produced by Wan Beardsley through sophisticated air compressor vector frequency control technology reaches national grade-2 energy-saving effect, some products have grade-one energy efficiency.
Shanghai rotorcomp screw air compressor is featured by high efficiency, low noise, small vibration, small volume, low expense, convenient maintenance, beautiful appearance and so on,
tThe product uses intelligent module control system and favorable human-machine interface to realize fault self diagnosis, servo-type gas flow automatic adjustment and 24-hour unattended operation, and it belongs to one of the most advanced machine type both home and abroad.
At present, Our PM VSD screw air compressors include: integrated permanent magnet variable-frequency series, non-inductive permanent magnet variable-frequency series, s
ervo permanent magnet variable-frequency series
, low-pressure permanent magnet variable-frequency series,
two-stage compression permanent magnet variable-frequency series,
oil cooling permanent magnet variable-frequency series of screw air compressors,
refrigerated dryer series, adsorption dryer series, combined dryer series, high-efficiency precision dryer, gasholder, etc.
Products are extensively applied to industries like machinery, furniture, textile, chemical fiber, medicine, food, metallurgy, electronics, war industry, environmental protection, etc
Shanghai rotorcomp points of each installation with a variety of sensors can be. the measurement of the running state and the all Chinese display on the screen, simple operation, high reliability. It has the function of self checking root, according to the user demand volume, automatic adjustment of running state. the interests of customers: monitoring and advanced
communication systems make the operation of the compressor is more reliable, higher efficiency and lower maintenance costs, the computer control system to make the machine unload loss minimum, prolong the service life of the compressor.
Shanghai rotorcomp Air System can be installed where you need compressed air. Its low noise operation and integrated air treatment equipment eliminates the need for a separate compressor room. All our compressors are tested and delivered ready for use. The integrated options will reduce installation costs and pressure drops significantly, thus saving additional energy cost.
Shanghai rotorcomp compressors have integrated dryer, filters and oil-water separator available to protect your compressed air network. This quality air expands the life of equipment, increasing efficiency and ensuring quality in your final product.
