Ultimate Efficiency VSD Screw Compressor Dry And Clean Compressed Air
| Place of Origin | Germany |
|---|---|
| Brand Name | Shanghai Rotorcomp |
| Certification | ISO.TUV,CE,GS |
| Model Number | LGCD-110 |
| Minimum Order Quantity | Negotiation |
| Price | Negotiation |
| Packaging Details | Exported Wooden Package |
| Delivery Time | 12-15 working days |
| Payment Terms | Western Union, T/T, L/C, D/P, D/A |
| Supply Ability | 3,000 sets/per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | VSD Screw Compressor | Advantage | Energy Saving |
|---|---|---|---|
| Power | 110KW | Air | Dry And Clean Compressed Air |
| Cooling Type | Air Cooling | Noise Level | ≤70dB(A) |
| Residual Oil Content | ≤2ppm | Cooling Air Flow | 11200m3/hr |
| High Light | vsd air compressor,oil injected screw compressor |
||
Product Description

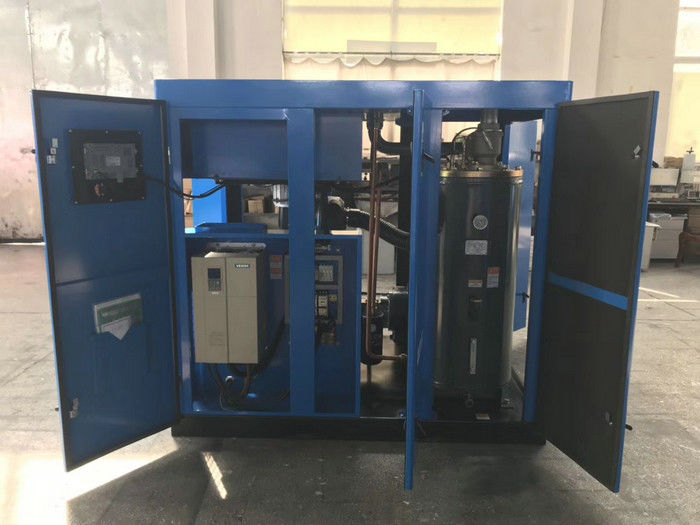

Ultimate Efficiency VSD Screw Compressor Dry And Clean Compressed Air
VSD Screw Compressor Exceptional Value
1. Ultimate Reliability
• AirHorse is so confident in the performance of these compressors, that we offer a choice of extended warranty packages designed to provide you with maximum operating security.
• Smart integration eliminates leaks and pressure drops, ensuring maximum reliability.
2. Ultimate Efficiency
• Delivers more air for less horsepower, saving thousands of dollars per year on energy
• Eliminates wasteful unloaded running by cycling the compressor on/off .
3. Ultimate Flexibility
• With a simplified, easy to maintain structure and with long life components, a trouble-free operation is provided
Compact machine design provides minimum working space
VSD Screw Compressor features:
State-of-the-art Screw Element
- Original Germany Rotorcomp screw rotors
- Advanced SAP profile design
- The material of the rotors is American specialty steel
Superior Sweden SKF element bearings
Premium Efficiency Drive Motor
- Premium efficiency Totally Enclosed Fan Cooled (TEFC)IP55 motor (Class F insulation) SF1.2 protects against dust and chemicals etc.
- Long-term stable operation even in harsh environments up to 45℃ (113℉)
Superior Air Filter
- Two-stage dust removal and filtering system with efficiency of up to 99.9% even in heavy-duty environments
- Extends the service life of the compressor parts and components, ensures air quality.
Efficient Separation System
- Reduction of pressure drops and energy costs
- Low oil consumption ensures minimal maintenance costs and long compressor
- lifetime
Integration possible in many process control systems.
Sample calculation of energy saving:
For example a standard 55kW screw compressor delivers air at 70% loading and operates 5800 hours per years. Taking electricity cost of USD 0.15/kWH, the additional energy consumed as comparing with VSD compressor will be:
A. Energy consumed during unload operation assuming unload shaft power absorbed is 45% of full load amount: 30% unload times x loss during unload time = (45% x 55kW) x 5800 hour/year x USD 0.15 = USD 6,460/year.
B. Energy consumed due to cut-in/cut-out pressure band of 2 bar.g assuming this counts for 14% of full load amount: 70% loading time x additional 2 bar.g of differential pressure loss = (14% x 55kW) x 5800 hour/year x USD 0.15 = USD 4,689/year.
Total energy saved by using VSD compressor will be = USD 6,460/year + USD 4,689/year = USD 11,149/year.
In a conclusion, a VSD compressor can save annually the electricity cost of USD 11,149, 3 years can then save USD 11,149 x 3 = USD 33,447 which could be more than capital investment for purchasing another VSD compressor.
110KW VSD air cooling compressor parameters
| ITEM | UNIT | MODEL | ||||
| LGCD-110 | ||||||
| Free air delivery | m3/min | 5.20-20.50 | 4.50-17.50 | 3.70-14.50 | 3.50-13.50 | |
| Max. working pressure | MPa | 0.8 | 1.0 | 1.3 | 1.5 | |
| Compressor type | Oil inject screw compressor | |||||
| Cooling type | Air cooling | |||||
| Driven type | Direct driven | |||||
| Inlet status | Temperature | ℃ | ≤45 | |||
| Pressure | MPa | Atmospheric pressure | ||||
| Relative humidity | ≤90% | |||||
| Noise Level | dB(A) | ≤79 | ||||
| Residual oil content | ppm | ≤2 | ||||
| Drive rotor speed | rpm | 1425-2965 | ||||
| Compressed air outlet temperature | ℃ | Ambient temperature＋10 | ||||
| Cooling air flow | m3/hr | 11200 | ||||
| Control mode | Intelligent controller | |||||
| Safety valve set pressure | MPa | 0.88 | 1.10 | 1.43 | 1.60 | |
| Lubricating oil volume | L | 70 | ||||
| Lubricating oil brand | ROTORCOMP | |||||
| Compressed air outlet connection | G2 | |||||
| Dimension | L | mm | 2350 | |||
| W | mm | 1500 | ||||
| H | mm | 1760 | ||||
| Net Weight | kg | 2400 | ||||
| Motor | Model | Y2280M2-2 YVP | ||||
| Speed | rpm | 1425-2965 | ||||
| Rated Power | KW | 110 | ||||
| Service factor | 1.2 | |||||
| Protection type | IP23/IP55 | |||||
| Insulation class | F | |||||
| Startup mode | Frequency conversion starting | |||||
| Voltage | V | 380(Special on request) | ||||
| Frequency | Hz | 30-120 | ||||
| Rated current | A | 203 | ||||
| Weight of motor | kg | 922 | ||||
Our Advantage:
Every permanent magnet variable-frequency air compressor produced by Wan Beardsley through sophisticated air compressor vector frequency control technology reaches national grade-2 energy-saving effect, some products have grade-one energy efficiency.
Shanghai rotorcomp screw air compressor is featured by high efficiency, low noise, small vibration, small volume, low expense, convenient maintenance, beautiful appearance and so on,
communication systems make the operation of the compressor is more reliable, higher efficiency and lower maintenance costs, the computer control system to make the machine unload loss minimum, prolong the service life of the compressor.
Shanghai rotorcomp Air System can be installed where you need compressed air. Its low noise operation and integrated air treatment equipment eliminates the need for a separate compressor room. All our compressors are tested and delivered ready for use. The integrated options will reduce installation costs and pressure drops significantly, thus saving additional energy cost.
Shanghai rotorcomp compressors have integrated dryer, filters and oil-water separator available to protect your compressed air network. This quality air expands the life of equipment, increasing efficiency and ensuring quality in your final product.
