Oil Injected VSD Screw Compressor Intelligent Touchable PLC Control System
|Place of Origin||Germany|
|Brand Name||Shanghai Rotorcomp|
|Model Number||LGFD VSD screw compressor|
|Minimum Order Quantity||Min.:1set|
|Packaging Details||Exported Wooden Package|
|Delivery Time||12-15 working days|
|Payment Terms||Western Union, T/T, L/C, D/P, D/A|
|Supply Ability||3,000 sets/per month|
|Warranty||5 Years||Air End||Made In Germany|
|Advanced Design||Design In Germany||Inverter||Danfoss|
|Inverter Motor||Super High Efficient||Color||Customized|
PLC Control VSD Screw Compressor,
Intelligent VSD Screw Compressor,
Oil Injected Industrial Screw Compressor
Super High Efficient Energy-saving Variable Speed Rotary Screw Compressor 5 years warranty
New generation VSD Screw Air Compressor, 15%-60% than traditional VSD compressor.
1. World-leading "Made in Germany" Rotorcomp screw air end
2,25-30% energy saving than normal VSD compressor
3. wider 15-60hz adjustable-speed drive system

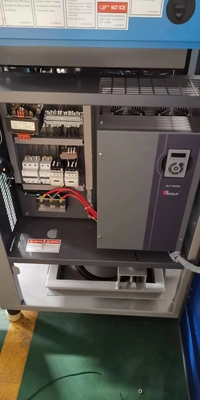

4. Intelligent touchable PLC control system
5. Double higher efficient VSD energy-saving motors in IE3 CE&MEPS
6. Unique driving guard system
7. ISO, TUV, GA, CE,SGS certificates
Shanghai rotorcomp Variable speed drive Screw Air Compressor adapting the amount of free air delivered to compressed air demand is the most economical operating method where demand for compressed air fluctuates considerably or where the stored volume is very small or where operating below peak load.
The benefits of rotorcomp VSD air screw compressor
>Smooth starts and stops within seconds
>Continuous volume flow regulation from 25-100%
>Adjustable-speed drive from 15-60hz
>minimization of wear and maintenance costs
>No power-peaks during start-up
> nearly no idling
Reduce Energy Consumption
The costs of power consumption account for 70% or more of all costs during the operation. The electric charges of running air compressor account for more than 40% of all the electric charges in the factory.
The requirement of compressed air fluctuates violently in different time every day, different weeks, or different months every year. The range of fluctuation is 40% to 80%, Rotorcomp adjustable-speed drive screw compressor can meet the user’s requirement exactly. When the user needs less air delivery, Variable frequency inverter can reduce the capacity and reduce the power consumption at the same.
|8bar||10bar||13bar||15bar||Motor||Motor(Fan)||dB(A)**||L×W×H in mm||kg|
|1. The above parameters and color are designed according to customer needs, the parameters are for reference only, the final parameters of the drawings shall prevail;|
|2. According to user requirements and needs, to join way: air/water cooling, oil content, weight, appearance size according to the need to design, to the final order and the technical agreement shall prevail;|
3. Frequency Inverters (ABB&SIEMENS customized).
4. 1 year warranty, 5 years warranty for air end
