6 - 13Bar 10.7m3/min Refrigerated Air Dryer For Air Compressors
  • 6 - 13Bar 10.7m3/min Refrigerated Air Dryer For Air Compressors
  • 6 - 13Bar 10.7m3/min Refrigerated Air Dryer For Air Compressors
  • 6 - 13Bar 10.7m3/min Refrigerated Air Dryer For Air Compressors

6 - 13Bar 10.7m3/min Refrigerated Air Dryer For Air Compressors

Place of Origin China
Brand Name Shanghai Rotorcomp
Certification ISO,CE.TUV.BV
Model Number HDR
Product Details
Capacity:
10.7m3/min
Working Pressure:
6-13Bar
Max.inlet. Temp.:
82℃
Max.Ambient.Temp.:
45℃
Cooling Mode:
Air&Water Cooling
Refrigerant:
R410a,R402c,R22
Dew Point:
2-8℃
Cooling Sytem:
Enlarged Heat Exchange, 10-15% Better Performance
DimensionAuto-Drain Valve:
1180*670*1080mm
Weight:
240Kg
Min.Ambient Temp.:
5 °C
High Light:

Compressors Refrigerated Air Dryer

,

Cooled Refrigerated Compressed Air Dryer

,

10.7m3/Min Refrigerated Air Dryer

Payment & Shipping Terms
Minimum Order Quantity
Min:1set
Price
Negotiable
Packaging Details
exported wooden case
Delivery Time
5-10 working days
Payment Terms
Western Union, T/T, D/A, L/C, D/P
Supply Ability
10,000sets/month
Product Description

Super Cooling 75HP Air screw compressor used 10.7m3/min economical refrigerated air dryer




Features of High-temp Refrigerated Air Dryer:



Capacity: 10.7m3/min

 Working Pressure: ≤13bar
Max.inlet temp: 82°C Max Ambient Temp:50°C
Min.Ambient Temp: 5°C Refrigerant: R22, R407C,R134A,R410A
Cooling type: Air-cooled&Water-cooled Dew Point: 2°C ~8°C





Why compressed air purification?



Compressor alone is not enough.In most cases,untreated compressed air is naturally dirty,oily and wet.This condition is certainly notdesirable for industrial applications and could directly or indirectlylead to the following situations.

• Reduction in efficiency of expensive pneumatic tools & machineries

• Frequent costly maintenance of pneumatic tools & machineries

• Lost of production hours with increased machines down time

• High rejection rate of products

• Inability to meet delivery deadlines

• Unsatisfied customers



1.As reliable compressor dryer manufacturer, Air heat exchanger using corrugated copper tube inner and outer walls, increasing the cooling capacity utilization, countercurrent structure, return temperature is good, no condensation.
2. Evaporator processing thin-walled copper tube with a hydrophilic aluminum fin, spoilers structure heat transfer efficiency in our refrigerated Air Dryer.
3. The Sewerage system of refrigerated compressoed air dryer optimization. Cold and dry structure using three or more drainage, timely and effective emit large amounts of condensate and oil, and thus ensure that the system clean and dry air also reduces the system load.

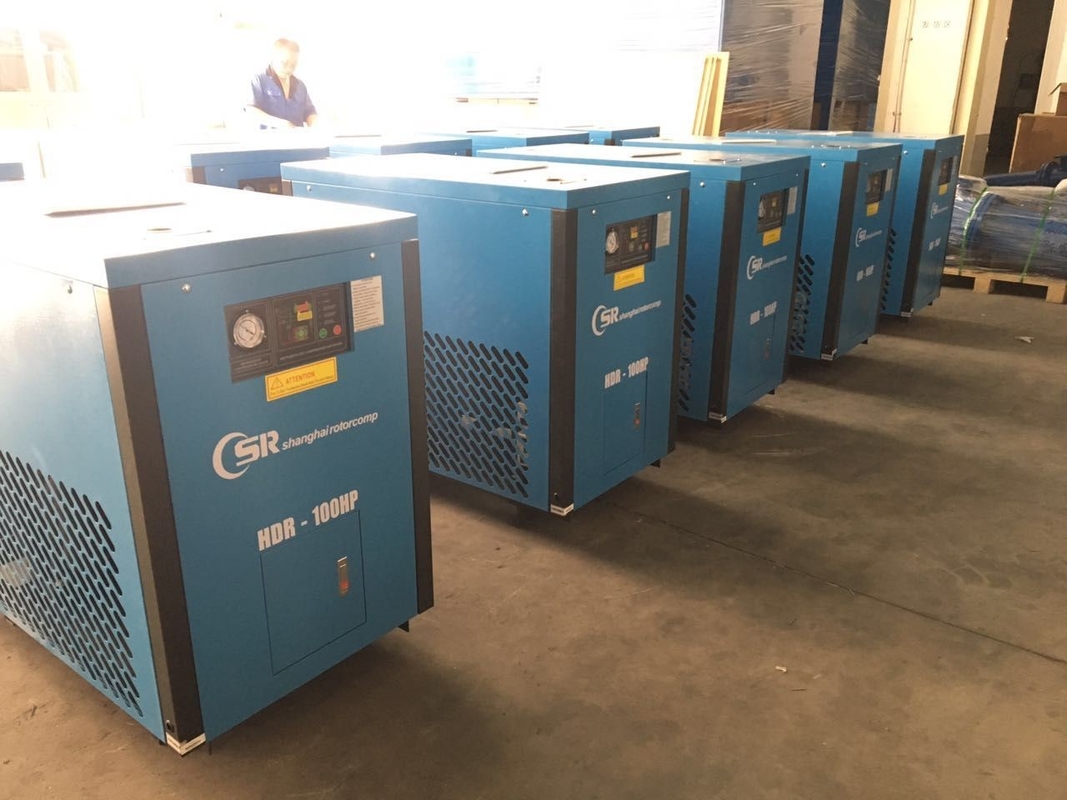

6 - 13Bar 10.7m3/min Refrigerated Air Dryer For Air Compressors 0





Model Cpacity
m3/min
Power Kw Voltage
V/50Hz
connection Dimension
L×W×H
Weight Kg

HDR-75HP 10.7 2.5 380 Rc2″ 1180×670×1080 240

Note:
1. The above parameters and color are designed according to customer needs, the parameters are for reference only, the final parameters of the drawings shall prevail;
2. According to user requirements and needs, to join way: air/water cooling, oil content, weight, appearance size according to the need to design, to the final order and the technical agreement shall prevail;
3. 1 year warranty, 2 years warranty for refrigerated compressor









6 - 13Bar 10.7m3/min Refrigerated Air Dryer For Air Compressors 1

6 - 13Bar 10.7m3/min Refrigerated Air Dryer For Air Compressors 2

6 - 13Bar 10.7m3/min Refrigerated Air Dryer For Air Compressors 3
