Mr.Kerry Robinson from Australiatoday I ran the compressor and I am very happy with the workmanship and the quality , it is connected to a nitrogen generator that requires around 0.8 MPA feed air from the 30 kw compressor we are commissioning it I have found that it loads and unloads from 25.5 kw - 30 kw this will be a huge saving on power consumption.
Pedro Antonio from USAWe've been used Shanghai Rotorcomp compressors over 18 sets from 10hp to 160HP installed with Oxygen generator since 2008. Most of compressors still in good working conditions without much maintenance.

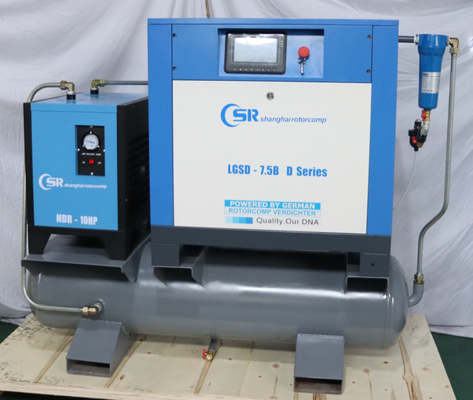

10hp/7.5kw tank-mounted Screw compressor
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Power Source||AC Power||Lubrication Style||Lubricated|
|Warranty||1 Year||Rated Power||4KW/5.5HP|
rotary screw type compressor,
screw drive air compressor
Tank mounted 5.5Hp-30hp tank-mounted screw air compressor with air dryer,filters in smaller dimension for small workshop
Compact, heavy duty, quiet and highly reliable belt &direct driven rotary screw compressors series, to satisfy all the requirements.
Advanced compressor research and development and management system
Shangai Rotorcomp management system;
- Before production of new product, all should go through five stages and more one thousand process research and developments
European standard production management
Reasonable process arrangement;
Quality tracing and responsibility system;
Every process progress and quality controlled;
Rigorous factory testing program
The LGSD series comprises a comprehensive range of premium quality rotary screw air compressors from 4 kW to 15 kW. Each model is constructed to the highest standard using the best quality components in order to ensure a long life and total reliability.
The design of the LGSD series benefits from years of experience in the production of innovative high quality air compressors where attention to detail and quality are at the highest level.
Every compressor strictly tested before leaving factory;
Equipped with independent inspection department to supervise quality
OUR OWN INTAKE REGULATOR
Normally open electro- pneumatic system: adjusts the compressor operation to guarantee minimum pressure when idle running and maximum saving upon start-up.All this translates into an optimal energy cost/air delivery ratio.
SEPARATED COOLING SYSTEM
The centrifugal fan is activated automatically by the thermostatic control through the controller. This allows the machine to quickly reach and precisely maintain the ideal operating temperature.
EVO® – Screw air ends
Reliable and versatile
Our oil-injected screw air ends create the heart of your compressor system. Used with our wide range of components, you can build the perfect compressor package with ultimate efficiency, low noise, at the highest quality standards.
Advantages of our new EVO® technology Ultimate efficiency and reduced noise through
New ROLLING PROFILE® – ultimate efficiency with
Long life cycle due to increased bearing dimensions
and wear-free ROLLING PROFILE®
Wide operating pressure range from 5 to 15 barg
High quality manufacturing and assembling –
“Made in Germany”
Quality assurance – bench test of every air end
before leaving our factory
Easy application selection with our new
ROTORCOMP® SIZING AIR software
Highest flexibility for your package design
• Suitable for all types of drive driving motors
• Drive options: Belt drive, direct drive, internal
|Max. Pressure||Sound level||
|Net Dimensions L x W x H|
|LGSD 4.0-08-300||300||4||5.5||0.58||34.8||20.5||8||116||60||1/2"||240||120 x 65 x 154|
|1. The above parameters and color are designed according to customer needs, the parameters are for reference only, the final parameters of the drawings shall prevail;|
|2. According to user requirements and needs, to join way: air/water cooling, oil content, weight, appearance size according to the need to design, to the final order and the technical agreement shall prevail;|
3. Frequency converters (optional).
4. 1 years warranty, 5 years warranty for air end
Screw air compressor main spare parts configuration:
Huba original (from
|11||Air filter element||Mann(Germany)|
|12||Oil filter element||Mann(Germany)|
Sweden SKF (Life 60000
