450V 60HZ Heated Air Dryer Air Treatment Plant 10bar Working Pressure
  • 450V 60HZ Heated Air Dryer Air Treatment Plant 10bar Working Pressure
  • 450V 60HZ Heated Air Dryer Air Treatment Plant 10bar Working Pressure
  • 450V 60HZ Heated Air Dryer Air Treatment Plant 10bar Working Pressure

450V 60HZ Heated Air Dryer Air Treatment Plant 10bar Working Pressure

Place of Origin China
Brand Name Shanghai Rotorcomp
Certification ISO,CE.TUV.BV
Model Number HDR-XF
Product Details
Capacity:
1.2m3/min-160m3/min
Working Pressure:
6-10Bar
Max.inlet. Temp.:
45℃
Max.Ambient.Temp.:
45℃
Purge Air:
4-6%
Desiccant:
Activated Aluminum &Molecular Siere
Dew Point:
-40- -70℃
Inlet Oil Content:
0.01ppm
Working Period:
40-180Mins
Power:
220-450V/50-60HZ
High Light:

heated desiccant air dryer

,

air treatment plant

Payment & Shipping Terms
Minimum Order Quantity
Min:1set
Price
Negotiable
Packaging Details
exported wooden case
Delivery Time
5-10 working days
Payment Terms
Western Union, T/T, D/A, L/C, D/P
Supply Ability
10,000sets/month
Product Description

High efficient reliable Heated desiccant air dryer

Dew point: -40 °C - -70°C

ISO, CE certificated With world-top activated Aluminum & Molecular contents.



1.2m3/min~180m3/min customized 6-10bar pressure with less air consumption.


Features of Heated desiccant air dryer Air Dryer:


Capacity: 1.2m3/min~160m3/min Working Pressure: ≤10bar
Max.inlet temp: 45°C

Max Ambient Temp:50°C
Min.Ambient Temp: 5°C

Refrigerant:Activated Aluminum &Molecular Siere

Dew Point: -40°C - -70°C

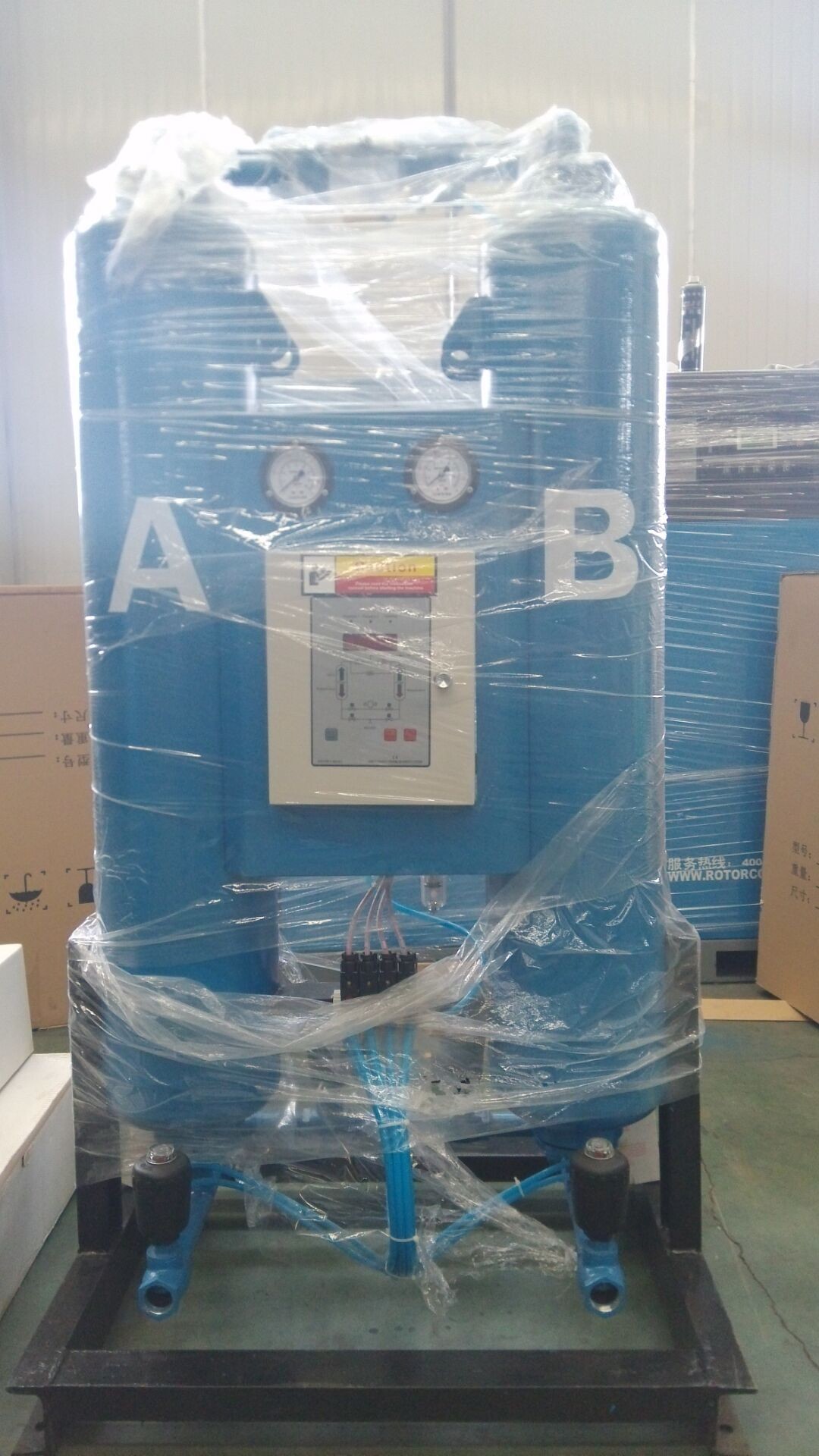

450V 60HZ Heated Air Dryer Air Treatment Plant 10bar Working Pressure 0

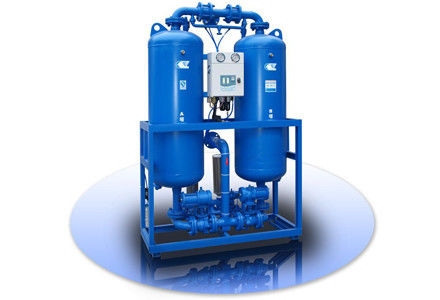

450V 60HZ Heated Air Dryer Air Treatment Plant 10bar Working Pressure 1


Key benefits of Shanghai rotorcomp desiccant air dryer

  • Longer life span of your equipment and distribution network due to less wear
  • Greater productivity and lower maintenance costs thanks to less breakdowns
  • Multiport inlet and outlet which ensures fast and easy installation
  • Higher final product quality
  • Increased reliability and reduced risk for leaks
  • Energy savings with lower pressure drops
  • Pressure dew point sensor



Description:

Micro heat regenerative adsorption pressure desiccant dryer with no heat regeneration principle is basically the same, the difference is that it used to regenerate the low-pressure dry air before re-entering the regeneration tower after receipt of the desiccant dehumidification in the structure increased heating device, on the increase in the regeneration process receipt and cold blowing processes.
slightly hot regenerated adsorption dryer advantage of less energy waste, only 6%. Switching cycle is long and less engine wear, improved equipment reliability. It is the final product gas dryness ratio heatless with even better.



ModelCpacity
m3/min
Power KwVoltage
V/50Hz
connectionDimension
L×W×H
Weight Kg
HDR-10XF1.20.85380ZG1″800×400×1360120
HDR-20XF2.41.0380ZG1″800×400×1460180
HDR-30XF3.81.25380ZG1.5″1000×450×1600270
HDR-60XF6.51.5380ZG1.5″1200×500×1950400
HDR-75XF8.51.8380ZG1.5″″1400×600×2000510
HDR-100XF10.72.5380ZG2″1400×600×2090700
HDR-150XF13.52.5380ZG2″1400×600×2140740
HDR-200XF183.0380DN651400×600×2200780
HDR-250XF254.0380DN801670×650×24351180
HDR-300XF356.5380DN1001670×650×25661760
HDR-350XF458.8380DN1001750×750×27002200
HDR-400XF5510.2380DN1251800×750×27552600
HDR-450XF6513380DN1251900×700×30703100
HDR-500XF8513380DN1502620×1120×30704100
HDR-550XF11013380DN1503100×1650×32005200
HDR-600XF16013380DN2003240×1770×31906000
1. The above parameters and color are designed according to customer needs, the parameters are for reference only, the final parameters of the drawings shall prevail;
2. According to user requirements and needs, to join way: air/water cooling, oil content, weight, appearance size according to the need to design, to the final order and the technical agreement shall prevail;
3. 1 year warranty


450V 60HZ Heated Air Dryer Air Treatment Plant 10bar Working Pressure 2
