7.5kw Power Central Pneumatic Air Compressor Unique Enlarged Cooling System
  • 7.5kw Power Central Pneumatic Air Compressor Unique Enlarged Cooling System
  • 7.5kw Power Central Pneumatic Air Compressor Unique Enlarged Cooling System
  • 7.5kw Power Central Pneumatic Air Compressor Unique Enlarged Cooling System

7.5kw Power Central Pneumatic Air Compressor Unique Enlarged Cooling System

Place of Origin Germany
Brand Name Shanghai Rotorcomp
Certification ISO.TUV,CE,GS
Model Number Nk-integrated screw compressor
Product Details
Warranty:
5 Years
Air End:
Made In Germany
Design:
Unique Design In Germany
Cooling System:
Enlarged Cooling System
Highlight:

rotary screw type compressor

,

screw drive air compressor

Payment & Shipping Terms
Minimum Order Quantity
Min.:1set
Price
Negotiable
Packaging Details
Exported Wooden Package
Delivery Time
5-15 working days
Payment Terms
Western Union, T/T, L/C, D/P, D/A
Supply Ability
3,000 sets/per month
Product Description

7.5kw Rotorcomp integrated air screw compressor in TUV certificates 5 years warranty



Advantages of NK High-end Series Screw Compressor:


Hot sale! Oil Lubricated Rotary Air Screw Compressor
1. World-leading ROTORCOMP integrated air end Made in Germany
2. 5 years warranty
3. Unique Extraordinary cooling system design
4. Economic running costs
5. ISO, TUV, CE, SGS certificates

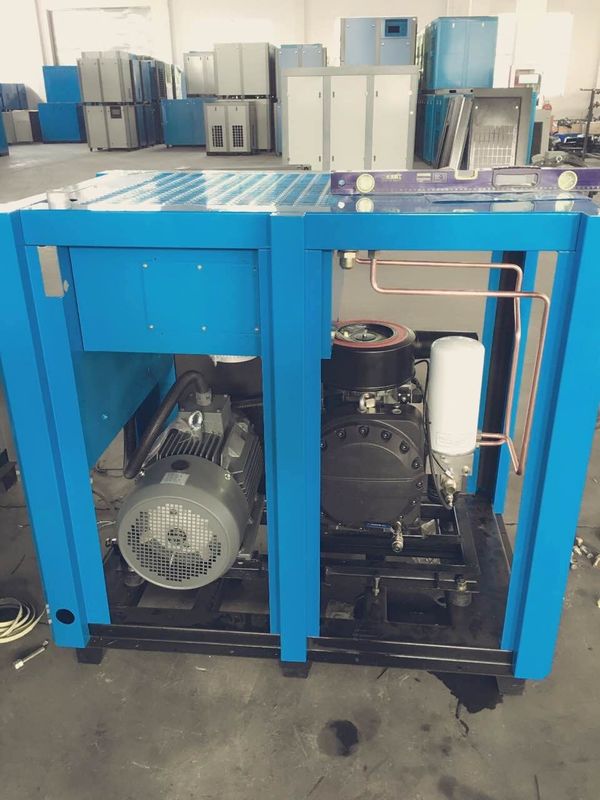

7.5kw Power Central Pneumatic Air Compressor Unique Enlarged Cooling System 0
7.5kw Power Central Pneumatic Air Compressor Unique Enlarged Cooling System 1


All Shanghai Rotorcomp NK high-end air screw compressors assembled with unique series of EVO®-NK compact units that are oil-injected screw compressor modules integrated the main parts of a compressor system.
This solution is the best possible way to build a reliable, compact and cost-efficient complete compressor package with ultimate efficiency, low noise and the highest quality standards.





Why use NK high-end integrated screw compressor?

Economic running costs


Capacity,0-100% adjustment When the gas consumption is reduced, the capacity decreases, following motor current is also reduced, our NK high-end air screw compressor is running without capacity, if this status keeps for a long time, compressor automatically shut down. While air consumption increases, compressors recovers. The energy-saving effect is optimal.

Good environmental adaptability


Extraordinary cooling system design, especially for the high-temperature, high humidity environment. Excellent vibration isolation and noise reduction measures, so that the installation of our NK high-end air screw compressor no need for a dedicated basis, only to leave a minimum ventilation and maintenance space, you can settle your compressor.







7.5kw Power Central Pneumatic Air Compressor Unique Enlarged Cooling System 2





Mode Capacity m3/min

Power/
(KW)

Weight/
Kg

Noise/
dB(A)

Dimension/
L×W×H(mm)

7 bar 8 bar 10 bar 13 bar 15 bar
LGFD7.5 * 1.30 1.20 1.00 0.75 0.60 7.5 290 65±3 900×650×1290
LGFD11 * 1.70 1.60 1.50 1.15 0.90 11 350 65±3 900×650×1290
LGFD15 * 2.25 2.05 1.85 1.50 1.20 15 360 67±3 900×650×1290
LGFD18.5* 3.10 2.90 2.55 2.10 1.80 18.5 565 70±3 790×1360×1220
LGFD22* 3.60 3.40 3.00 2.50 2.30 22 600 70±3 790×1360×1220
LGFD30* 5.20 4.90 4.40 3.70 3.00 30 810 72±3 930×1660×1530
LGFD37* 6.30 6.00 5.40 4.70 4.10 37 830 72±3 930×1660×1530



Note:
1. The above parameters and color are designed according to customer needs, the parameters are for reference only, the final parameters of the drawings shall prevail;
2. According to user requirements and needs, to join way: air/water cooling, oil content, weight, appearance size according to the need to design, to the final order and the technical agreement shall prevail;

3. Frequency converters (optional).
4. 1 years warranty, 5 years warranty for air end



7.5kw Power Central Pneumatic Air Compressor Unique Enlarged Cooling System 3

7.5kw Power Central Pneumatic Air Compressor Unique Enlarged Cooling System 4
