NK Integrated Rotary Screw Drive Air Compressor

Place of Origin Germany
Brand Name Shanghai Rotorcomp
Certification ISO.TUV,CE,GS
Model Number Nk-integrated screw compressor
Minimum Order Quantity Min.:1set
Price Negotiable
Packaging Details Exported Wooden Package
Delivery Time 5-15 working days
Payment Terms Western Union, T/T, L/C, D/P, D/A
Supply Ability 3,000 sets/per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Warranty 5 Years Air End Made In Germany
Advanced Design Design In Germany Oil Filter German MANN
Oil Separator German MANN Air Filter German MANN
Contractor Schneider
High Light

rotary screw type compressor


screw drive air compressor

Leave a Message
Product Description

30kw Rotorcomp NK integrated screw compressor in TUV certificates, 5 years warranty


Advantages of NK High-end Series Screw Compressor:

Hot sale! Oil Lubricated Rotary Air Screw Compressor
1. World-leading ROTORCOMP integrated air end Made in Germany
2. 5 years warranty
3. Unique Extraordinary cooling system design
4. Economic running costs
5. ISO, TUV, CE, SGS certificates

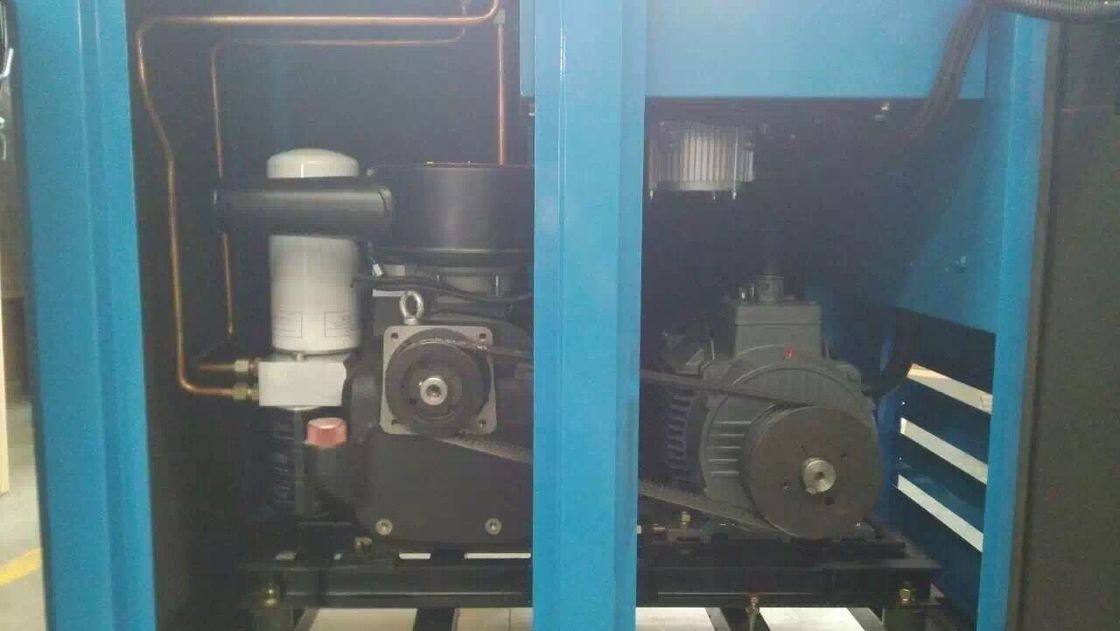

NK Integrated Rotary Screw Drive Air Compressor 0
NK Integrated Rotary Screw Drive Air Compressor 1
All Shanghai Rotorcomp NK high-end air screw compressors assembled with unique series of EVO®-NK compact units that are oil-injected screw compressor modules integrated the main parts of a compressor system.
This solution is the best possible way to build a reliable, compact and cost-efficient complete compressor package with ultimate efficiency, low noise and the highest quality standards.

Why use NK high-end integrated screw air compressor?

Economic running costs

Capacity,0-100% adjustment When the gas consumption is reduced, the capacity decreases, following motor current is also reduced, our NK high-end air screw compressor is running without capacity, if this status keeps for a long time, compressor automatically shut down. While air consumption increases, compressors recovers. The energy-saving effect is optimal.

Good environmental adaptability

Extraordinary cooling system design, especially for the high-temperature, high humidity environment. Excellent vibration isolation and noise reduction measures, so that the installation of our NK high-end air screw compressor no need for a dedicated basis, only to leave a minimum ventilation and maintenance space, you can settle your compressor.


Standard compressor

NK Integrated Rotary Screw Drive Air Compressor 2
NK Integrated Rotary Screw Drive Air Compressor 3

Mode Capacity m3/min





7 bar 8 bar 10 bar 13 bar 15 bar
LGFD7.5 * 1.30 1.20 1.00 0.75 0.60 7.5 290 65±3 900×650×1290
LGFD11 * 1.70 1.60 1.50 1.15 0.90 11 350 65±3 900×650×1290
LGFD15 * 2.25 2.05 1.85 1.50 1.20 15 360 67±3 900×650×1290
LGFD18.5* 3.10 2.90 2.55 2.10 1.80 18.5 565 70±3 790×1360×1220
LGFD22* 3.60 3.40 3.00 2.50 2.30 22 600 70±3 790×1360×1220
LGFD30* 5.20 4.90 4.40 3.70 3.00 30 810 72±3 930×1660×1530
LGFD37* 6.30 6.00 5.40 4.70 4.10 37 830 72±3 930×1660×1530


1. The above parameters and color are designed according to customer needs, the parameters are for reference only, the final parameters of the drawings shall prevail;
2. According to user requirements and needs, to join way: air/water cooling, oil content, weight, appearance size according to the need to design, to the final order and the technical agreement shall prevail;

3. Frequency converters (optional).
4. 1 years warranty, 5 years warranty for air end

NK Integrated Rotary Screw Drive Air Compressor 4
NK Integrated Rotary Screw Drive Air Compressor 5
