| Place of Origin | Germany |
| Brand Name | Shanghai Rotorcomp |
| Certification | ISO.TUV,CE,GS |
| Model Number | LGFD screw compressor |
1. World-leading Made in Germany Rotorcomp screw air end
2. 5 years warranty
3. Extraordinary cooling system design
4. Intelligent control system
5. higher efficient energy-saving motor in IP55 IE3 CE&MEPS, SF1.2
6. Unique driving guard system
7. ISO,TUV,GA,SGS certificates
Ultimate efficiency and reduced noise through
High volumetric output due to
• Reduced internal leakage
• Thermally optimized oil injection system
• Improved suction port efficiency giving reduced
internal losses
Low power consumption due to
• Optimized torque characteristics and reduced
internal friction
• Improved outlet port with lower pressure losses
Reduced noise and low vibration due to
• Smooth rolling of the rotors with new
ROLLING PROFILE®
• Optimized outlet port
Our new EVO® oil-injected screw air ends are among the most efficient air ends in the world
market today.
All of our 30+ years experience in the supply of our well-known B air ends and
NK compact units is built into our new EVO® generation ensuring a highly reliable product.
Using EVO® as the heart, our OEM partners can build compressor systems with ultimate
efficiency, low noise, at the highest quality standards.
We design the new Oil separation system for our LGFD air screw compressor that Compressors up to 132 kW are equipped with external separators that can be changed in a simple spin-off/spin-on process. Larger units have an internal separator cartridge. Due to the excellent separation efficiency of the system as a whole, the compressors can be used in the pressure range of 5.0 to 15.0 bar. Special pressures on request.
And the Oil circuit of our LGFD rotary screw compressor is the amount of oil in the units is determined in such a way as to extend the oil change intervals (depending on ambient conditions).An oil level sensor is integrated as standard and is read by the controller. All the units in this series have a horizontal oil separation vessel in which the oil is separated from the compressed air highly efficiently at low speeds.
55KW air cooling compressor parameters
| ITEM | UNIT | MODEL | ||||
| LGFD-55 | ||||||
| Free air delivery | m3/min | 10.0 | 9.0 | 7.80 | 6.50 | |
| Max. working pressure | MPa | 0.8 | 1.0 | 1.3 | 1.5 | |
| Compressor type | Oil inject screw compressor | |||||
| Cooling type | Air cooling | |||||
| Driven type | Belt driven | |||||
| Inlet status | Temperature | ℃ | ≤55 | |||
| Pressure | MPa | Atmospheric pressure | ||||
| Relative humidity | ≤90% | |||||
| Noise Level | dB(A) | ≤76 | ||||
| Residual oil content | ppm | ≤1 | ||||
| Drive rotor speed | rpm | 3950 | 3170 | 2900 | 2600 | |
| Compressed air outlet temperature | ℃ | Ambient temperature＋10 | ||||
| Cooling air flow | m3/hr | 11200 | ||||
| Control mode | Intelligent controller | |||||
| Safety valve set pressure | MPa | 0.88 | 1.10 | 1.43 | 1.60 | |
| Lubricating oil volume | L | 50 | ||||
| Lubricating oil brand | ROTORCOMP | |||||
| Compressed air outlet connection | G2 | |||||
| Dimension | L | mm | 1750 | |||
| W | mm | 1200 | ||||
| H | mm | 1500 | ||||
| Net Weight | kg | 1380 | ||||
| Motor | Model | Y2225M-2 | ||||
| Speed | rpm | 2970 | ||||
| Rated Power | KW | 55 | ||||
| Service factor | 1.2 | |||||
| Protection type | IP55 | |||||
| Insulation class | F | |||||

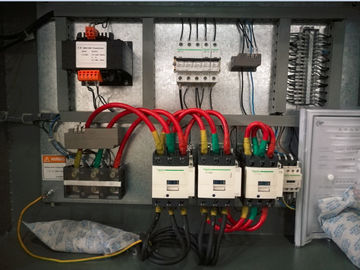

| Startup mode | ʏ-Δ starting | |||||
| Voltage | V | 380(Special on request) | ||||
| Frequency | Hz | 50(Special on request) | ||||
| Rated current | A | 103 | ||||
| Weight of motor | kg | 387 | ||||
| Note: |
| 1. The above parameters and color are designed according to customer needs, the parameters are for reference only, the final parameters of the drawings shall prevail; |
| 2. According to user requirements and needs, to join way: air/water cooling, oil content, weight, appearance size according to the need to design, to the final order and the technical agreement shall prevail; |
|
3. Frequency converters (optional). 4. 1 years warranty, 5 years warranty for air end |
