| Place of Origin | Germany |
| Brand Name | Shanghai Rotorcomp |
| Certification | ISO.TUV,CE,GS |
| Model Number | LGCD screw compressor |
1. Coupling driving system
2. Highly competitive price
3. Economic running costs
4. ISO, GA, SGS certificates
The almost loss-free power transmission guarantees reliable, high-performance compressor operation. The regular maintenance requirement is reduced to lubrication of the motor. All the electronic components are brand products of leading
manufacturers. rives and electrics.

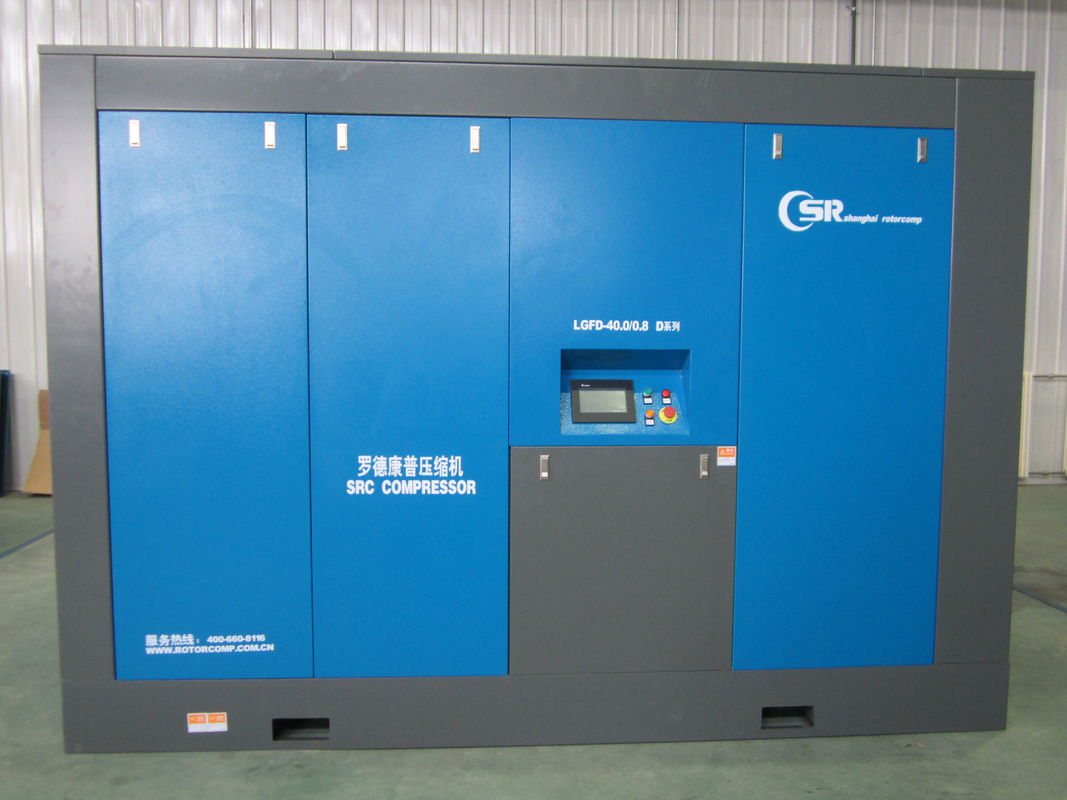

The centrepiece of Direct-driven Screw compressor is the air end, which is constructed and manufactured with the most modern production methods in China. The optimal air end for your compressor can be used on a modulating basis. In frequency-controlled units, where the operating pressure changes, adjustments can also be made on the frequency controller to optimally adjust the speed of the compressor to the compressor performance.
Only electric motors from well-known manufacturers of protection class IP54/IP23 are used in our Direct-driven Screw compressor. As a standard, the drive motors are monitored both thermally (via the thermistor of the motor) as well as electronically(overload protection via the frequency inverter).
LGCD Direct-driven Screw compressor up to 132 kW are equipped with external separators that can be changed in a simple spin-off/spin-on process. Larger units have an internal separator cartridge. Due to the excellent separation efficiency of the system as a whole, the compressors can be used in the pressure range of 5.0 to 15.0 bar. Special pressures on request.
The frequency converter minimises idle times and optimises supply with fluctuating compressed air requirements. Start-up peaks are avoided and the compressor’s delivery rate is controlled continuously – that saves electricity costs! The total costs for your compressed air supply are significantly reduced and investment costs are amortised in the shortest possible time.
200KW air cooling compressor parameters
| ITEM | UNIT | MODEL | ||||
| LGCD-35/8 | LGCD-30/10 | LGCD-27/13 | ||||
| Discharge capacity | m3/min | 35 | 30 | 27 | ||
| Working pressure | MPa | 0.8 | 1.0 | 1.3 | ||
| Cooling style | Air cooling | |||||
| Working style | one stage, continuous working | |||||
| Driven method | Direct driven | |||||
| Inlet status | Temperature | ℃ | ≤40 | |||
| Pressure | MPa | Atmospheric pressure | ||||
| Relative humidity | ≤100% | |||||
| Noise | dB(A) | ≤85 | ||||
| Oil content | ppm | ≤2 | ||||
| Drive rotor speed | rpm | 2972 | ||||
| Dust particle size | μm | 1μm | ||||
| Cooler outlet temperature | ℃ | Ambient temperature＋10 | ||||
| Cooling air flow | m3/min | 880 | ||||
| Displacement control mode | Load/empty + stop for too long empty status | |||||
| Safety valve set pressure | MPa | 0.88 | 1.1 | 1.43 | ||
| Lubricating oil volume | L | 140 | ||||
| Lubricating oil brand | ROTORCOMP | |||||
| Air outlet connection size | DN80 | |||||
| Drain connection size | G1 | |||||
| Dimension | L | mm | 2650 | |||
| W | mm | 1650 | ||||
| H | mm | 1850 | ||||
| Net Weight | kg | 3600 | ||||
| Motor | Type | Y2315L2-2 | ||||
| Rating | rpm | 2972 | ||||
| Power | KW | 200 | ||||
| Service coefficient | 1.2 | |||||
| Degree of protection | IP55 | |||||
| Insulation class | F(B) | |||||
| Startup mode | Reduced voltage | |||||
| Voltage | V | 380 | ||||
| Frequency | Hz | 50 | ||||
| Rated current | A | 348 | ||||
| Weight of motor | kg | 1170 | ||||
