| Place of Origin | China |
| Brand Name | Shanghai Rotorcomp |
| Certification | ISO,CE.TUV.BV |
| Model Number | HDR-XF |

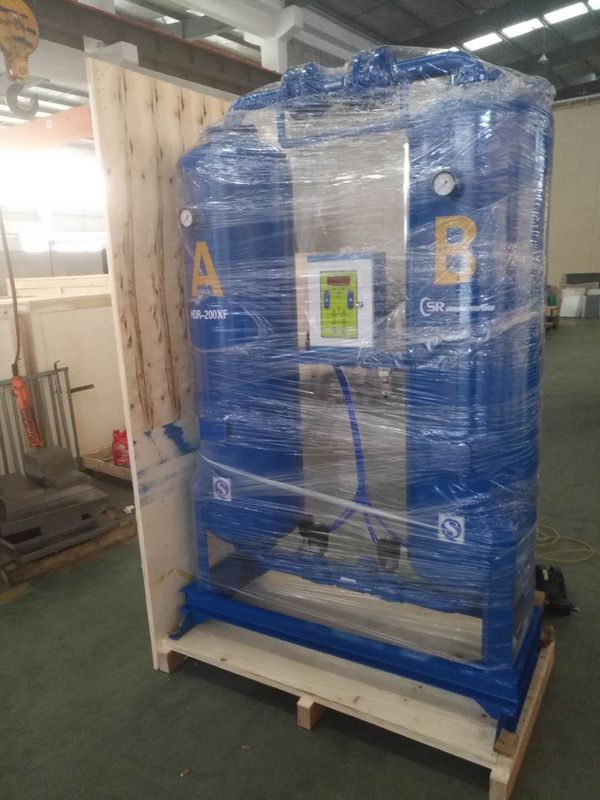

Externally heated Purge Desiccant Air Dryer is a new economic product developed by our company; This series product integrating advantages of heat-exists purge and heatless purge, externally heating the purge air, reduce it's consumption.
Adsorption Element
Externally Heated Desiccant Air Dryer is integrated the advantages of PSA(Pressure Swing Adsorption) & TSA(Temperature Swing Adsorption).Absorbing during normal temperature and dense water vapour; purging during relatively high temperature and less density of water vapour. That’s to say, absorb water of sorbet, purify during the purging period by superior purge air of thermal diffusion and high pressure difference.
The Flow Chart of Externally Heated Purge Desiccant
Heatless Purge Desiccant Air Dryer using micro holes in the desiccant itself, adsorbing the moisture in the air because of capillary, desorbing it by pressure drop and adsorbing extra-heat. Currently, the equipment is making up of two towers, controlled by the Program Controller, the two towers working alternately, one is for adsorbing, the other is for desorbing, in this way continually circulating the work.
Working Condition Technical Data
As the name implies, air dryers are used to dry the compressed air: they remove moisture from the air, resulting in dryer air. This way, your valuable tools and machinery are protected from water and rust. But also your piping used to transport the compressed air is protected.
Water? Where is it coming from?
Compressors suck in lots of air and compress it to about 7 times the volume (that is, 7 bar pressure). The air that is sucked in always contains a little (or a lot!) water.
While the air can be compressed, the water cannot!
| Model | Cpacity m3/min |
Power Kw | Voltage V/50Hz |
connection | Dimension L×W×H |
Weight Kg |
| HDR-150XF | 13.5 | 3.0 | 380 | G2 | 1400×600×2140 | 740 |
| 1. The above parameters and color are designed according to customer needs, the parameters are for reference only, the final parameters of the drawings shall prevail; |
| 2. According to user requirements and needs, to join way: air/water cooling, oil content, weight, appearance size according to the need to design, to the final order and the technical agreement shall prevail; |
| 3. 1 year warranty |
