Product Details
Type Screw Configuration Mobile
Power 325HP/1700rpm Engine CUMMINS
Cooling Method Air Cooled Capacity 22m3/min(790cfm)
Working Pressure 20bar/290psi Dimension 4600×1950×2850mm
Weight 2400Kg Ambient Temp. 50°C
Lubricated Oil Mineral Oil Noise 82dB
High Light

diesel rotary screw air compressor

,

diesel engine driven air compressor

Leave a Message
Product Description

Double Stage Pressure 790Cfm 290Psi Diesel Driven Portable Air Screw compressor

Shanghai Rotorcomp's fully implemented Quality Management and Environmental Management systems in the design and manufacturing of these units fulfill the requirements of ISO 9001 and ISO 14001.

The range has also been tested / given the certificate tested according to ISO 1217.



The most efficient wheeled Diesel compressor, Deutz, Ctapillar, Cummins diesel engine, less10-15% diesel consumption than the traditional model. More flexible in various working conditions for mining, road construction. Sand blasting.



Advantages of Diesel Portable Screw Compressor:

1. Two-stage screw block is patented;
2. Designed for a maximum pressure of 40 bar;
3. Two-stage compression; Deutz, Cummins, and Yuchai World well-known engines
4. SKF bearings, direct drive, no noise gears;


Application of Diesel Portable Screw Compressor:

Shanghai rotorcomp diesel Portable/Mobile screw air compressor is widely used in mines, water conservancy, transportation, shipbuilding, urban construction, energy, industry and other industries.


Diesel Portable Compressor Features:

Diesel portable screw air compressor is widely applied in the industries, such as, road, railway, mine, water conservancy, shipbuilding, urban construction, energy and war industry, etc.

Shanghai Rotorcomp diesel portable screw air compressor is efficient and reliable, with complete varieties. Discharge quantity covers 33m3/min and the discharge pressure is up to 3.5MPa at maximum.



LY19.5/19 is a newly designed compact tandem axle platform that is built tough with heavy gauge, powder coated galvanealed steel.

CUMMINS Portable Compressor Features:

1) HardHat (Optional)

2) Full compliance with 2000/14/EC, the latest European Outdoor Noise Directive

3) Years of experience and ongoing investment

4) Guaranteed free air delivery in accordance with ISO 1217 ed. 3 1996 annex D

5) A combination of a Polyethylene upper body and a chassis with a KTL epoxy layer coating with powder coat paint finish

6) Wide-opening canopy and removable side panels

7) High capacity transparent fuel tank

8) Few moving parts

9) Controls grouped on one panel

10) Engine speed adapts to air demand

11) Compliant with exhaust emission standards 97/68/EC Com III (Europe) & EPA Tier II (U.S.)

12) Long service intervals

13) Complete option list

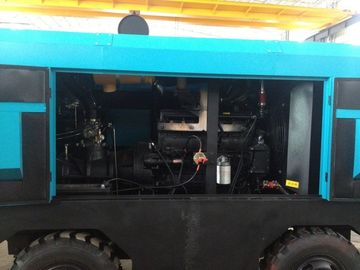

petrol air compressor 0



Model Capacity
(m3/min)
Working Pressure
(Mpa)
Diesel Engine
(kw)
Dimension
(mm)
LY19.5/19 19.5 1.9  CUMMINS      6CTA8.3-C260

3980×1800×2650


Screw air compressor main spare parts configuration:


Item Parts Brand
1 Air end rotorcomp
2 Intake Valve rotorcomp
3 Solenoid Valve DANFOSS
4

Temperature

sensor

rotorcomp
5 Pressure sensor

Huba original (from

Switzerland)

6 Engine Yuchai
7 Coupling Germany KTR
8

Thermostat

Valve

Hongxing
9 PLC PLOT
10

Minimal

Pressure Valve

rotorcomp
11 Air filter element rotorcomp
12 Oil filter element rotorcomp
13

Oil and gas

separator

element

rotorcomp
14 Bearing

Sweden SKF (Life 60000

hours)
