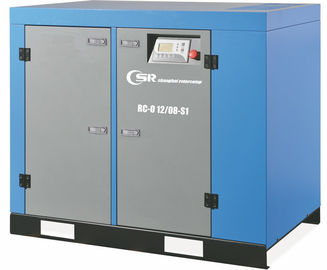

Clean Small Oil Free Compressor With Digital Program Display Panel 11KW/15HP

Place of Origin China
Brand Name Shanghai Rotorcomp
Certification ISO.TUV,CE,GS
Model Number Silent Oil Free Scroll Compressor
Minimum Order Quantity Min.:1set
Price Negotiable
Packaging Details Exported Wooden Package
Delivery Time 15-20 working days
Payment Terms Western Union, T/T, L/C, D/P, D/A
Supply Ability 3,000 sets/per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Warranty 2Years Type Oil Free Scroll
Model RC-D12/08-S1 Power 11KW/15HP
Working Pressure 8-9.9Bar Cooling System More Than 30% Air Cooling Performance
Controller Intelligent Colorful Touchable Controller Design Design In Germany
Air End Design In Germany Dimension 1250*760*1090
Weight 440Kg Certificates Class-0,ISO,CE,TUV
High Light

oil free scroll compressor

,

silent oilless air compressor

Leave a Message
Product Description

Clean Small Oil Free Compressor With Digital Program Display Panel 11KW/15HP



Why to choose oil free scroll compressor for your project?



Oil free scroll compressor

Scroll unique mute, micro vibration provides comfortable working space, even at night without fear of environmental impact.



The oilfree scroll air compressor needn't oli or water.Not only environmentally friendly but also low cost.



Oil free scroll compressor advantages:



1,ISO 8573-1 Class 0 100% oil free compressor

 Ultra quiet operation (51-67 dB)
• Energy saving control unit for multiple air-ends
• Clean, 100% oil free air; No oil maintenance required
• Built-in intercooling & runtime monitor sensory
• Digital program display panel
• Very few maintenance intervals
• Small, sleek & compact



Advanced design for air cooling system better performance than other compressor 15-20%





Model

Capacity(m3/min)

Power(kw)

In/outlet

Noise

Dimension

Weight

8bar

Motor

dB(A)

L×W×H in mm

kg

RC-D12/08-S1

1.2

11

1/2

65

1250×760×1090

440















Note:

1. The above parameters and color are designed according to customer needs, the parameters are for reference only, the final parameters of the drawings shall prevail;

2. According to user requirements and needs, to join way: air/water cooling, oil content, weight, appearance size according to the need to design, to the final order and the technical agreement shall prevail;

3. Frequency converters (optional).

4. 1 year warranty, 2 years warranty for air end







Unique design of SCROLL Super Silent compressor



1. Easy to adjust the belt tension

2. Scientific ventilation design

3. Clear assembly

4. Independent cooling fan

5. Heat exchanger with enlarged heat exchange area

6. Optional integrated air tank

7. Intelligent controller

8. IP55 high efficiency motor

9. Drawer type design is easy to do maintenance



Clean Small Oil Free Compressor With Digital Program Display Panel 11KW/15HP 0
