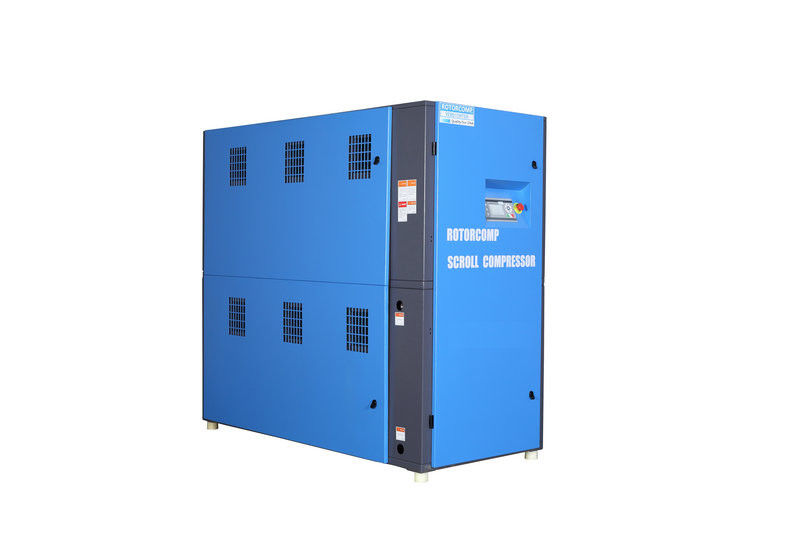

Ultra Quiet Operation Oil Free Compressor For Medical Gas Industry 440Kg
| Place of Origin | China |
|---|---|
| Brand Name | Shanghai Rotorcomp |
| Certification | ISO.TUV,CE,GS |
| Model Number | Silent Oil Free Scroll Compressor |
| Minimum Order Quantity | Min.:1set |
| Price | Negotiable |
| Packaging Details | Exported Wooden Package |
| Delivery Time | 15-20 working days |
| Payment Terms | Western Union, T/T, L/C, D/P, D/A |
| Supply Ability | 3,000 sets/per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 2Years | Type | Oil Free Scroll |
|---|---|---|---|
| Model | RC-D12/08-S1 | Power | 11KW/15HP |
| Working Pressure | 8-9.9Bar | Cooling System | More Than 30% Air Cooling Performance |
| Controller | Intelligent Colorful Touchable Controller | Design | Design In Germany |
| Air End | Design In Germany | Dimension | 1250*760*1090 |
| Weight | 440Kg | Certificates | Class-0,ISO,CE,TUV |
| High Light | oil free scroll compressor,silent oilless air compressor |
||
Product Description
Ultra Quiet Operation Oil Free Compressor For Medical Gas Industry Application
Unique design of SCROLL Super Silent compressor
1. Easy to adjust the belt tension
2. Scientific ventilation design
3. Clear assembly
4. Independent cooling fan
5. Heat exchanger with enlarged heat exchange area
6. Optional integrated air tank
7. Intelligent controller
8. IP55 high efficiency motor
9. Drawer type design is easy to do maintenance
Oil free scroll compressor advantages:
1,ISO 8573-1 Class 0 100% oil free compressor
Ultra quiet operation (51-67 dB)
• Energy saving control unit for multiple air-ends
• Clean, 100% oil free air; No oil maintenance required
• Built-in intercooling & runtime monitor sensory
• Digital program display panel
• Very few maintenance intervals
• Small, sleek & compact
Advanced design for air cooling system better performance than other compressor 15-20%
|
Model |
Capacity(m3/min) |
Power(kw) |
In/outlet |
Noise |
Dimension |
Weight |
|
8bar |
Motor |
dB(A) |
L×W×H in mm |
kg |
||
|
RC-D12/08-S1 |
1.2 |
11 |
1/2 |
65 |
1250×760×1090 |
440 |
|
|
|
|
|
|
|
|
|
Note: |
|
1. The above parameters and color are designed according to customer needs, the parameters are for reference only, the final parameters of the drawings shall prevail; |
|
2. According to user requirements and needs, to join way: air/water cooling, oil content, weight, appearance size according to the need to design, to the final order and the technical agreement shall prevail; |
|
3. Frequency converters (optional). 4. 1 year warranty, 2 years warranty for air end
|
Low noise and convenience
The low noise of 10~65dB operation can be used in hospitals and offices without additional placement. Using the chart LCD controller, you can view the multi-function icons such as working status, machine protection, maintenance information, and output status in any state for easy operation.
