Belt Driven Compressed Air Compressor / Small Industrial Air Compressor
  • Belt Driven Compressed Air Compressor / Small Industrial Air Compressor
Belt Driven Compressed Air Compressor / Small Industrial Air Compressor

Belt Driven Compressed Air Compressor / Small Industrial Air Compressor

Place of Origin China
Brand Name Shanghai Rotorcomp
Certification ISO.TUV,CE,GS
Model Number RC-D06/08-S1
Product Details
Type:
Compressed Air Compressor
Drive:
Belt Driven
Capacity(m3/min) 8bar:
0.6
In/outlet:
3/8
Noise:
60dB(A)
Dimension:
720×760×1150mm
Weight:
240Kg
High Light:

oil free scroll compressor

,

oil free rotary screw air compressor

Payment & Shipping Terms
Minimum Order Quantity
Negotiable
Price
Negotiable
Packaging Details
Exported Wooden Package
Delivery Time
15-20 working days
Payment Terms
Western Union, T/T, L/C, D/P, D/A
Supply Ability
3,000 sets/per month
Product Description

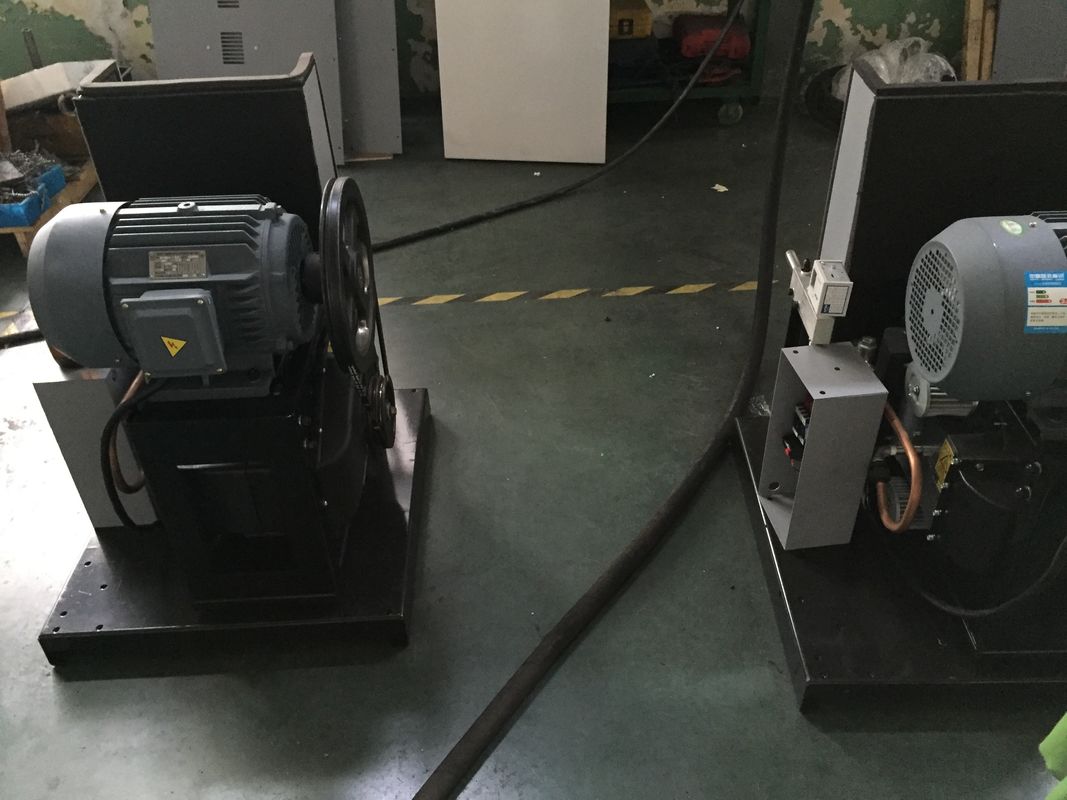

Belt Driven Compressed Air Compressor / Small Industrial Air Compressor



Compressed Air Compressor Features



  • High efficiency cooling
  • Longer usage life
  • Big volume air tank
  • Easy operation
  • High performance
  • Oil-free, belt driven, piston type


Compressed Air Compressor Advantage



  • Using the enclosed crankcase bearings to create a green environment
  • Using high strength and high temperature, wear -resistant bearings to make its long using life.
  • Using special wear-resistant, high temperature of piston rings to extend the replacement of ring more than 8000 hours.



Compressed Air Compressor Parameters



Model Capacity(m3/min) Power(kw) In/outlet Noise Dimension Weight
8bar Motor dB(A) L×W×H in mm kg
RC-D04/08-S1 0.4 3.7 3/8 55 720×760×1150 220
RC-D06/08-S1 0.6 5.5 3/8 60 720×760×1150 240
RC-D08/08-S1 0.8 7.5 1/2 62 780×790×1250 290
RC-D12/08-S1 1.2 11 1/2 65 1250×760×1090 440
RC-D36/08-S1 3.6 33 1-1/2 75 1300×1380×1660 1200
RC-D42/08-S1 4.2 38.5 2 78 1350×1460×1660 1280
RC-D48/08-S1 4.8 44 2 78 1350×1460×1660 1360
RC-D54/08-S1 5.4 49.5 2-1/2 81 1400×1520×1780 1480
RC-D60/08-S1 6.0 55 2-1/2 81 1400×1520×1780 1600



Note:
1. The above parameters and color are designed according to customer needs, the parameters are for reference only, the final parameters of the drawings shall prevail;
2. According to user requirements and needs, to join way: air/water cooling, oil content, weight, appearance size according to the need to design, to the final order and the technical agreement shall prevail;

3. Frequency converters (optional).

4. 1 year warranty, 2 years warranty for air end



Why to choose Oil Free Scroll Air Compressor ?



  1. More simple structure,less wearing part
  2. lower maintenance cost and cheaper price
  3. lower noise and less vibration
  4. Medical equipment(medical,dentists gas source as oxygen
  5. Gas separation system equipment(adsorption&membrance separation of oxygen and nitrogen)
