Waterproof Oil Free Compressor With Reasonable Structure TUV,CE,ISO Certificates
Oil Free Compressor Advantages
1. Easy to move out the elements
Good substitute of small oil free screw compressor with lower cost of maintenance, and more simple structure with energy-saving performance in food&beverage,pharmaceutical,automobile,medical&chemical,prescion and electronic industry.
Advanced design for air cooling system better performance than other compressor 15-20%
2. Space saving and environmental protection:
The products has compact structure, smaller size, with less occupation of the land, lower noise and vibration, it can be installed in any place where you need it, even in the production area can be used.
Oil Free Compressor Parameters
Model | Capacity(m3/min) | Power(kw) | In/outlet | Noise | Dimension | Weight |
8bar | Motor | dB(A) | L×W×H in mm | kg | ||
RC-D04/08-S1 | 0.4 | 3.7 | 3/8 | 55 | 720×760×1150 | 220 |
RC-D08/08-S1 | 0.8 | 7.5 | 1/2 | 62 | 780×790×1250 | 290 |
RC-D12/08-S1 | 1.2 | 11 | 1/2 | 65 | 1250×760×1090 | 440 |
RC-D18/08-S1 | 1.8 | 16.5 | 3/4 | 68 | 1250×760×1560 | 630 |
RC-D24/08-S1 | 2.4 | 22 | 1 | 70 | 1250×1360×1090 | 820 |
RC-D30/08-S1 | 3.0 | 27.5 | 1-1/2 | 72 | 1250×1360×1560 | 1010 |
RC-D36/08-S1 | 3.6 | 33 | 1-1/2 | 75 | 1300×1380×1660 | 1200 |
RC-D42/08-S1 | 4.2 | 38.5 | 2 | 78 | 1350×1460×1660 | 1280 |
RC-D48/08-S1 | 4.8 | 44 | 2 | 78 | 1350×1460×1660 | 1360 |
RC-D54/08-S1 | 5.4 | 49.5 | 2-1/2 | 81 | 1400×1520×1780 | 1480 |
RC-D60/08-S1 | 6.0 | 55 | 2-1/2 | 81 | 1400×1520×1780 | 1600 |
Note: |
1. The above parameters and color are designed according to customer needs, the parameters are for reference only, the final parameters of the drawings shall prevail; |
2. According to user requirements and needs, to join way: air/water cooling, oil content, weight, appearance size according to the need to design, to the final order and the technical agreement shall prevail; |
3. Frequency converters (optional). 4. 1 year warranty, 2 years warranty for air end |
Why to choose Oil Free Scroll Air Compressor ?

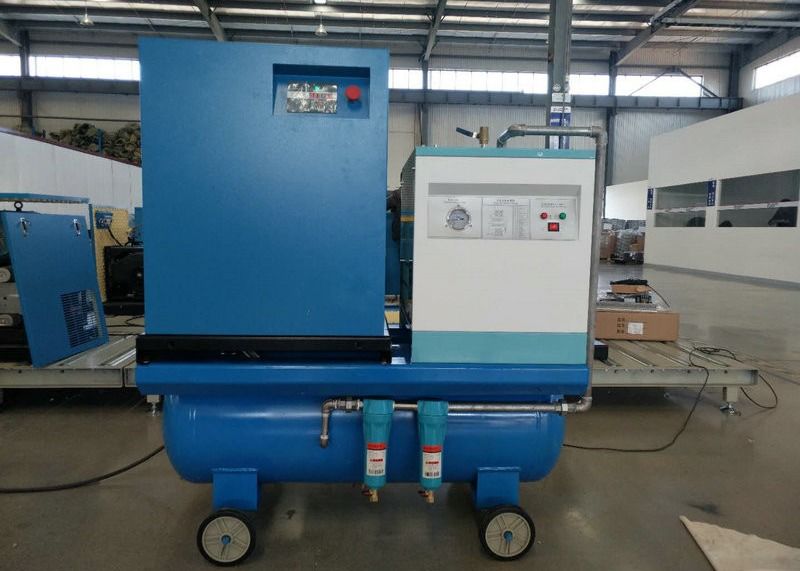

Oil Free Compressor Details
