| Place of Origin | GERMAN |
| Brand Name | Shanghai Rotorcomp |
| Certification | ISO.TUV,CE,GS |
| Model Number | LGFD-30 |

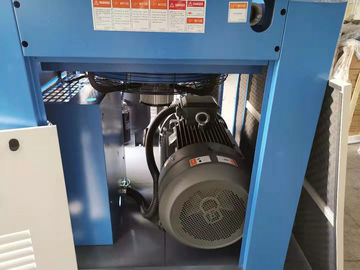

Air Cooling 4030rpm Screw Air Compressor
Applications
rotary-screw compressor is a type of gas compressor that uses a rotary-type positive-displacement mechanism. They are commonly used to replace piston compressors where large volumes of high-pressure air are needed. Such as:
30KW air cooling compressor parameters
| ITEM | UNIT | MODEL | ||||
| LGFD-30 | ||||||
| Free air delivery | m3/min | 5.00 | 4.50 | 3.70 | 3.25 | |
| Max. working pressure | MPa | 0.8 | 1.0 | 1.3 | 1.5 | |
| Compressor type | Oil inject screw compressor | |||||
| Cooling type | Air cooling | |||||
| Driven type | Belt driven | |||||
| Inlet status | Temperature | ℃ | ≤45 | |||
| Pressure | MPa | Atmospheric pressure | ||||
| Relative humidity | ≤90% | |||||
| Noise Level | dB(A) | ≤72 | ||||
| Residual oil content | ppm | ≤2 | ||||
| Drive rotor speed | rpm | 4030 | 3650 | 3100 | 2950 | |
| Compressed air outlet temperature | ℃ | Ambient temperature＋10 | ||||
| Cooling air flow | m3/hr | 9200 | ||||
| Control mode | Intelligent controller | |||||
| Safety valve set pressure | MPa | 0.88 | 1.10 | 1.43 | 1.60 | |
| Lubricating oil volume | L | 30 | ||||
| Lubricating oil brand | ROTORCOMP | |||||
| Compressed air outlet connection | G1-1/2 | |||||
| Dimension | L | mm | 1500 | |||
| W | mm | 1000 | ||||
| H | mm | 1320 | ||||
| Net Weight | kg | 780 | ||||
| Motor | Model | Y2200L1-2 | ||||
| Speed | rpm | 2950 | ||||
| Rated Power | KW | 30 | ||||
| Service factor | 1.2 | |||||
| Protection type | IP55 | |||||
| Insulation class | F | |||||
| Startup mode | ʏ-Δ starting | |||||
| Voltage | V | 380(Special on request) | ||||
| Frequency | Hz | 50(Special on request) | ||||
| Rated current | A | 56.9 | ||||
| Weight of motor | kg | 232 | ||||
30KW air compressor main spare parts
| No. | Item | Model | Brand | |||
| 30KWB | ||||||
| 0 | Max. working pressure | 0.8 | 1.0 | 1.3 | 1.5 | |
| 1 | Air end | 4030100091 | ROTORCOMP | |||
| 2 | Motor | 4020100052 | HEBEI/HUADA | |||
| 3 | Pulley | CPT | ||||
| 3.1 | Air end side | |||||
| 3.2 | Motor side | |||||
| 4 | Belt | OPT | ||||
| 5 | Intake Valve | 4070103001 | HONGXING | |||
| 6 | Minimum pressure valve | 4070202002 | HONGXING | |||
| 7 | Safety valve | 4070304002 | 4070304003 | 4070304004 | 4070304005 | YUANTIAN |
| 8 | Air filter | 4080102002 | ROTORCOMP | |||
| 9 | Air filter element | 4080102015 | ROTORCOMP | |||
| 10 | Oil filter | 4080204001 | ROTORCOMP | |||
| 11 | Oil separator element | 4080306015 | ROTORCOMP | |||
| 12 | Oil separator tank | 4041201001 | ROTORCOMP | |||
| 13 | Cooler | 4060500034 | ROTORCOMP | |||
| 14 | Cooling fan assembly | 4060100031 | ROTORCOMP | |||
| 15 | Oil level sight glass | 4120400031 | ROTORCOMP | |||
| 16 | Solenoid valve | 4072000031 | HONGXING | |||
| 17 | Controller | 4101300131 | PLOT | |||
| 18 | Contactor-1 | 4100900021 | SCHNEIDER | |||
| 19 | Contactor-2 | 4100900081 | SCHNEIDER | |||
| 20 | Contactor-3 | 4100900091 | SCHNEIDER | |||
| 21 | Pressure sensor | 4100100011 | ROTORCOMP | |||
| 22 | Temperature sensor | 4100300031 | ROTORCOMP | |||
| 23 | Pressure gauge | 4100200011 | ROTORCOMP | |||
| 24 | ||||||
| 25 | ||||||
| 26 | ||||||
| 27 | ||||||
| 28 | ||||||
| 29 | ||||||
| 30 | ||||||
Our anvantages
High quality
Reasonable price
Strict delivery time
Good after-sales service
Profession maker for manyyears
Strict quality control
Streamline production makes each node be well controlled thus to guarantee more reliable quality.
Re-create the industry revolution of the air compresssor ,
Low after-sales maintenance cost and excellent promptness in the industry,
We not only provide air systems, but also break the industry monopoly to provide the users with profits
About US
Shanghai Rotorcomp Screw Compressor Co., Ltd founded in 1999, our company was a manufacturer of piston air compressors from 1985-1999. After 2000 our company headquarters moved to the international metropolis Shanghai and focused on screw air compressors, pressure vessel, refrigeration dryer, adsorption dryer and air filters with the support of Rotorcomp Verdichter Gmbh in German.
Shanghai Rotorcomp Screw Compressor Co. Ltd., Shanghai Ziqi Container Co.Ltd. have been cooperated with 2010 Beijing Nankou Railway Transit Machinery Co. Ltd., which belongs to China CNR Corporation Limited, as the strategic cooperation partner.
The Beijing Nankou company has processing equipment more than 100 sets, including large-scale precision equipment 90 sets and imported equipment 70 sets. Such as Hardinge double-ended grinder, Toshiba horizontal machining center, BW CNC vertical and horizontal machining center, Holroyd rotor profile grinder and Zeiss 3D measuring machine.
