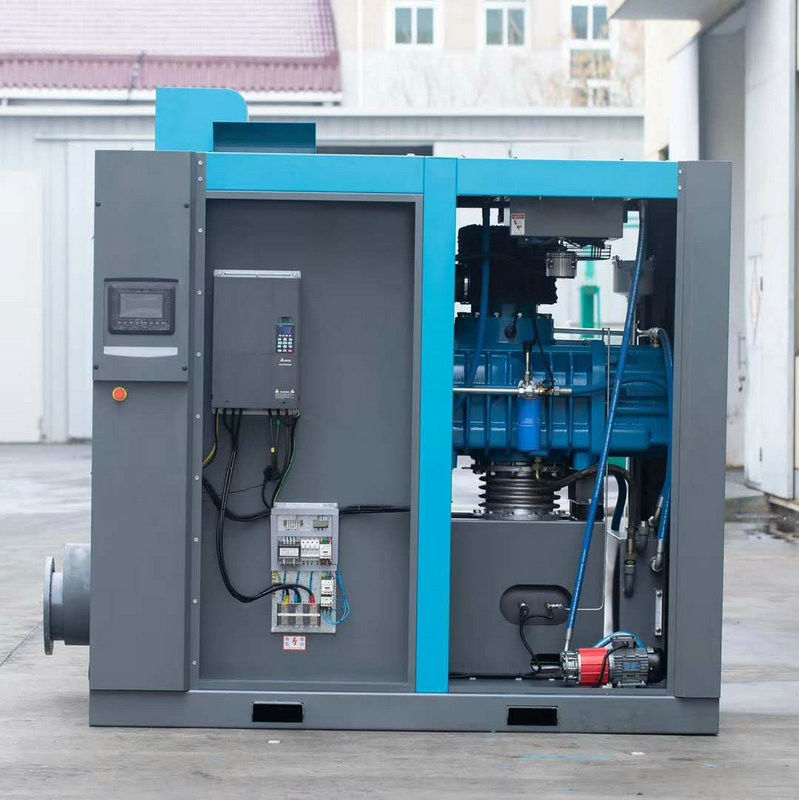

Air Cooling 37KW Screw Air Compressor
  • Air Cooling 37KW Screw Air Compressor
  • Air Cooling 37KW Screw Air Compressor

Air Cooling 37KW Screw Air Compressor

Place of Origin GERMAN
Brand Name Shanghai Rotorcomp
Certification ISO.TUV,CE,GS
Model Number LGFD-37
Product Details
Product Name:
Electric Air Compressor
Free Air Delivery:
6.40 5.80 4.80 4.30 M3/min
Max. Working Pressure:
0.8 1.0 1.3 1.5 MPa
Compressor Type:
Oil Inject Screw Compressor
Cooling Type:
Air Cooling
Driven Type:
Belt Driven
Noise Level:
≤72 DB(A)
Cooling Air Flow:
9200 M3/hr
High Light:

37KW rotary screw air compressor


Air Cooling portable screw air compressor

Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Plywood case for export package
Delivery Time
5-15 Working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
Product Description

Air Cooling 37KW Screw Air Compressor


Advantages of our new EVO® technology


New ROLLING PROFILE® – ultimate efficiency with reduced noise

Long life cycle due to increased bearing dimensions and wear-free ROLLING PROFILE®

Wide operating pressure range from 5 to 15 barg

High quality manufacturing and assembling – “Made in Germany”

Quality assurance – bench test of every air end before leaving Germany factory

Highest flexibility for your package design

• Suitable for all types of drive driving motors

• Drive options: Belt drive, direct drive, internal gear drive

• Base and face-flange mounting

High volumetric output due to

• Reduced internal leakage

• Thermally optimized oil injection system

• Improved suction port efficiency giving reduced internal losses

Low power consumption due to

• Optimized torque characteristics and reduced internal friction

• Improved outlet port with lower pressure losses

Reduced noise and low vibration due to

• Smooth rolling of the rotors with new ROLLING PROFILE®

• Optimized outlet port


37KW air cooling compressor parameters


Free air delivery m3/min 6.40 5.80 4.80 4.30
Max. working pressure MPa 0.8 1.0 1.3 1.5
Compressor type   Oil inject screw compressor
Cooling type   Air cooling
Driven type   Belt driven
Inlet status Temperature ≤45
Pressure MPa Atmospheric pressure
Relative humidity   ≤90%
Noise Level dB(A) ≤72
Residual oil content ppm ≤2
Drive rotor speed rpm 4550 4050 3550 3250
Compressed air outlet temperature Ambient temperature+10
Cooling air flow m3/hr 9200
Control mode   Intelligent controller
Safety valve set pressure MPa 0.88 1.10 1.43 1.60
Lubricating oil volume L 30
Lubricating oil brand   ROTORCOMP
Compressed air outlet connection   G1-1/2
Dimension L mm 1500
W mm 1000
H mm 1320
Net Weight kg 780
Motor Model   Y2200L1-2
Speed rpm 2950
Rated Power KW 37
Service factor   1.2
Protection type   IP55
Insulation class   F
Startup mode   ʏ-Δ starting
Voltage V 380(Special on request)
Frequency Hz 50(Special on request)
Rated current A 69.8
Weight of motor kg 250


37KW air compressor main spare parts


No. Item Model Brand
0 Max. working pressure 0.8 1.0 1.3 1.5
1 Air end 4030100091 ROTORCOMP
2 Motor 4020100062 HEBEI/HUADA
3 Pulley   CPT
3.1 Air end side
3.2 Motor side
4 Belt         OPT
5 Intake Valve 4070103001 HONGXING
6 Minimum pressure valve 4070202002 HONGXING
7 Safety valve 4070304002 4070304003 4070304004 4070304005 YUANTIAN
8 Air filter 4080102002 ROTORCOMP
9 Air filter element 4080102015 ROTORCOMP
10 Oil filter 4080204001 ROTORCOMP
11 Oil separator element 4080306015 ROTORCOMP
12 Oil separator tank 4041201001 ROTORCOMP
13 Cooler 4060500034 ROTORCOMP
14 Cooling fan assembly 4060100031 ROTORCOMP
15 Oil level sight glass 4120400031 ROTORCOMP
16 Solenoid valve 4072000031 HONGXING
17 Controller 4101300131 PLOT
18 Contactor-1 4100900021 SCHNEIDER
19 Contactor-2 4100900081 SCHNEIDER
20 Contactor-3 4100900091 SCHNEIDER
21 Pressure sensor 4100100011 ROTORCOMP
22 Temperature sensor 4100300031 ROTORCOMP
23 Pressure gauge 4100200011 ROTORCOMP

Scroll Rotary Compressor Applications

  • Metallurgy and Mining
  • Papermaking and Printing
  • Medicine and Health
  • Household Appliance
  • Electronic and Electrical
  • Transportation
  • Light Industry and Food
  • Textile and Clothing
  • Electric Power
  • Construction and Building Material
  • Mechanical and Electrical Machinery
  • Petrochemical Engineering
