Product Description:

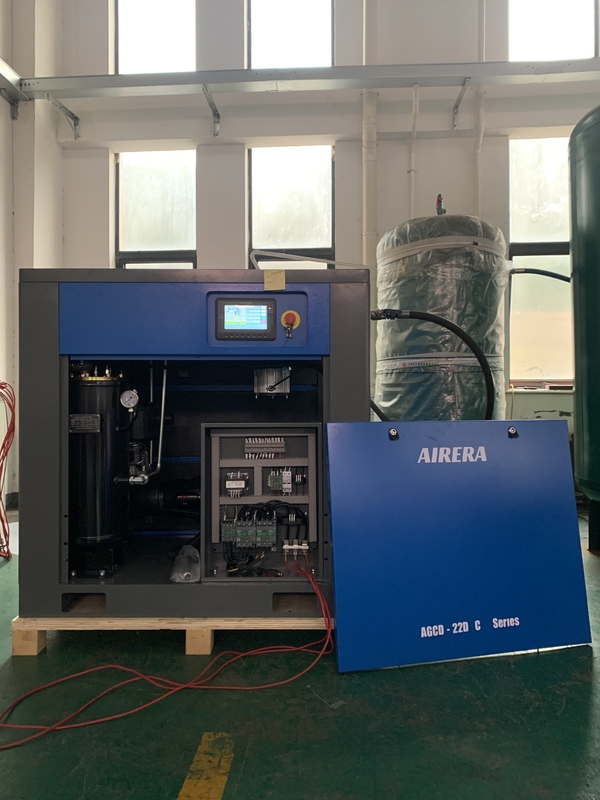

The AGCD-22D C Series Screw Air Compressor is an innovative and efficient air compression solution designed for a wide range of industrial applications. Built with precision engineering and advanced technology, it ensures reliable performance, energy efficiency, and ease of use, making it the perfect choice for businesses seeking robust and sustainable compressed air solutions.One of the main advantages of using a lubricated screw compressor is that it helps to reduce wear and tear on the components. This is because the oil that is injected into the compressor helps to lubricate the moving parts, which in turn, helps to reduce friction. As a result, the compressor runs smoother and quieter, and the components last longer.
The Oil Injected Screw Compressor is ideal for a variety of industrial applications, including automotive, woodworking, pharmaceuticals, food and beverage, and more. It is designed to deliver consistent performance, even in the most demanding environments.
The compressor is equipped with a powerful motor that provides the necessary power to run the compressor. The electric power source is reliable and efficient, making it a popular choice in industrial settings. Additionally, the compressor is designed with safety features that help to protect the operator and the equipment.
In summary, the Oil Injected Screw Compressor is a lubricated screw compressor that is designed for industrial use. It delivers efficient and reliable performance, thanks to its cooling air flow of 7800 M3/hr and its maximum working pressure of 0.7/0.8/1.0/1.3 MPA. The electric power source provides reliable and efficient power, while the safety features help to protect the operator and the equipment. This compressor is ideal for a variety of industrial applications and is designed to deliver consistent performance, even in the most demanding environments.
Key Features:
- Advanced Screw Airend: Designed for maximum efficiency and durability, ensuring consistent performance.
- High-Efficiency Motor: Reduces energy consumption while maintaining superior output.
- Intelligent Control System: User-friendly interface for real-time monitoring and precise control.
- Compact and Durable Design: Small footprint and rugged construction to withstand harsh conditions.
- Low Noise Operation: Operates quietly, creating a more comfortable work environment.
- Eco-Friendly Design: Built with energy-saving technology to reduce environmental impact.
Technical Parameters:
|
22KW air cooling compressor parameters
| ITEM |
UNIT |
MODEL |
| AGCD-22 |
| Free air delivery |
m3/min |
3.60 |
3.50 |
3.20 |
2.40 |
| Max. working pressure |
MPa |
0.7 |
0.8 |
1.0 |
1.3 |
| Compressor type |
|
Oil inject screw compressor |
| Cooling type |
|
Air cooling |
| Driven type |
|
Direct driven |
| Inlet status |
Temperature |
℃ |
≤45 |
| Pressure |
MPa |
Atmospheric pressure |
| Relative humidity |
|
≤90% |
| Noise Level |
dB(A) |
≤72 |
| Residual oil content |
ppm |
≤2 |
| Drive rotor speed |
rpm |
2940 |
| Compressed air outlet temperature |
℃ |
Ambient temperature＋10 |
| Cooling air flow |
m3/hr |
7800 |
| Fan motor power |
kW |
0.55 |
| Control mode |
|
Intelligent controller |
| Safety valve set pressure |
MPa |
0.77 |
0.88 |
1.10 |
1.43 |
| Lubricating oil volume |
L |
15 |
| Lubricating oil brand |
|
ROTORCOMP |
| Compressed air outlet connection |
|
G1 |
| Dimension |
L |
mm |
1300 |
| W |
mm |
850 |
| H |
mm |
1260 |
| Net Weight |
kg |
470 |
| Motor |
Model |
|
Y2180M2-2 |
| Speed |
rpm |
2940 |
| Rated Power |
KW |
22 |
| Service factor |
|
1.2 |
| Protection type |
|
IP55 |
| Efficiency |
|
IE3 |
| Startup mode |
|
ʏ-Δ starting |
| Voltage |
V |
380(Special on request) |
| Frequency |
Hz |
50(Special on request) |
| Rated current |
A |
42.2 |
| Weight of motor |
kg |
173 |
|
Applications:
Whether you're running a small workshop or a large industrial facility, the AGCD-22D C Series can help you get the job done. With a free air delivery of up to 3.60/3.50/3.20/2.40 M³/ Min and a maximum working pressure of up to 0.7/0.8/1.0/1.3 MPA, this rotary-screw air compressor is capable of handling even the toughest jobs with ease.
And with its direct on line/star delta starting method, the AGCD-22D C Series is incredibly easy to operate. Simply turn it on and let it do its job – no complicated setup or maintenance required.
But that's not all – the AGCD-22D C Series is also incredibly versatile. Whether you need a compressor for a manufacturing facility, a construction site, or any other industrial application, this screw air compressor can deliver the performance you need.
So why wait? Contact us today to learn more about the AGCD-22D C Series from Shanghai Rotorcomp. With ISO, CE, and TUV certification, a minimum order quantity of 1, negotiable pricing, and a supply ability of up to 1,000 units per month, this lubricated screw compressor is the perfect choice for any industrial setting. And with its sturdy wooden case packaging and delivery time of just 5-15 working days, you can rest assured that you'll receive your compressor quickly and safely.
Don't settle for anything less than the best – choose the AGCD-22D C Series from Shanghai Rotorcomp for all your rotary-screw air compressor needs.
Support and Services:
The Screw Air Compressor product comes with a comprehensive technical support and services package to ensure optimal performance and minimal downtime. Our team of experienced technicians are available to provide installation, maintenance, and repair services to keep your compressor running smoothly. We also offer training programs to help operators and maintenance personnel understand the operation and maintenance of the compressor. In addition, we provide genuine replacement parts and accessories to ensure the highest level of performance and reliability. Contact us to learn more about our technical support and services for the Screw Air Compressor product.
