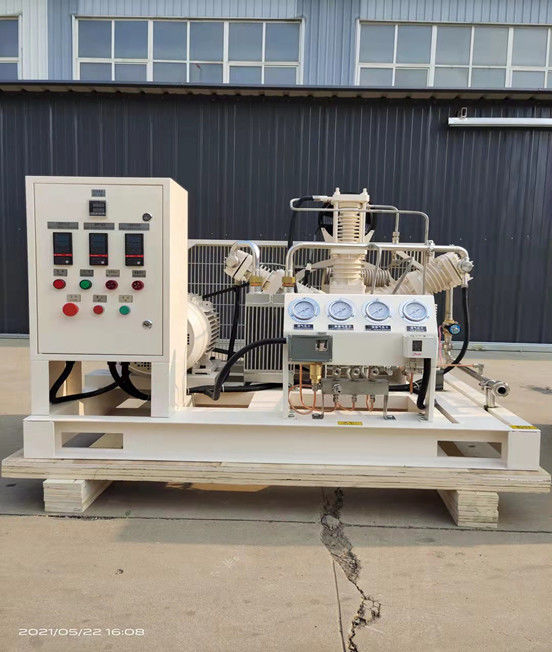

7.5KW Oil Free Oxygen Booster Compressor 150bar Air Cooled

Place of Origin china
Brand Name rotorcomp
Model Number WWZ
Minimum Order Quantity 1UNIT
Packaging Details standard package
Delivery Time 10-30 days
Payment Terms L/C, T/T, Western Union
Supply Ability 1,000 per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Certification ISO,ISO9001,ISO9001 CE Weight 420kgs
Type Piston Voltage 220V/380V/415V(customizable)
Lubrication Style Oil-free Warranty 15 Months After Delivery
After-sales Service Provided Engineers Available To Service Machinery Overseas Mute Yes
Condition New Configuration Stationary,Portable,Portable/Stationary
Power Source AC Power Color Customized Color
Product Name Oxygen Cylinder Filling Compressor,oil Free Air Compressor Pressure 4 Stage
Cooling Method Air Cooling,Water Cooling Application Medical,Cylinder Filling
Noise Level 52 DB Motor Power 7.5-200KW
Working Pressure 150bar
High Light

7.5KW Oxygen Booster Compressor


Oxygen Booster Compressor 150bar


220V Air Cooled Oxygen Booster Compressor

Leave a Message
Product Description

Shanghai Rotorcomp supplying oxygen compressor is completely oil-free and does not use any lubricating oil.
The cylinder uses stainless steel and the piston ring is self-lubricating. All these ensure the cleanliness and pollution-free of oxygen.
The working speed of the compressor is very slow, usually 200-400 rpm, suitable for continuous working conditions for 24 hours.
Generally, according to the customer’s oxygen usage, our oxygen compressors have one-stage compression, two-stage compression, three-stage compression, four-stage compression, and five-stage compression in the form of cylinders, which are single-cylinder,

Thanks to their oil-free, dry-running and gas-tight design, Shanghai rotorcomp compressors are ideally suited for use in the compression of oxygen.

  • no gas contamination due to oil-free and dry-running compression
  • Safe operation through the use of special, oxygen-compatible materials
  • technically tight gas compressors during operation and at standstill


  • Completely oil-free and dry-running piston compressor
  • Gas-tight design with integrated motor
  • Environmentally friendly because it is oil-free, gas-tight and efficient
  • Compressor leak rate < 0.0001 mbar l/s
  • Air-cooled
  • Motor powers from 3 to 44 kW
  • Rotary speed range 200 to 1700 1/min
  • Suction pressure max. 40 bar(abs)
  • Final discharge pressure max. 200 bar(abs)
  • Modular cylinder configuration with cylinder diameter up to 75 mm
  • Version with 1 cylinder for 1-stage compression
  • Maximum flow rate at atmospheric suction pressure approx. 150 Nm3/h
  • Booster-version flow rate max. approx. 50 Nm3/h
  • OEM block version available without pipework and instrumentation for integration in an OEM system
  • Very robust and long-lasting construction
  • Compact and foundation-free installation
  • Very quiet and hence suitable for installation directly at the workplace

7.5KW Oil Free Oxygen Booster Compressor 150bar Air Cooled 0

High Pressure oxygen compressor 150bar
ModelCapacityinletoutletRatedDimensionWeightin/outlet dia
Air flowpressurePressurePower(L×W×H)(Kg)
Nm3/hMPaMPaKWmm mm
VWZ-3/4-150 (air-cooled)1~30.41531080×820×85024020,10
VWZ-5/4-150 (air-cooled)3~50.41541080×820×85027020,10
WWZ-8/4-150 (air-cooled)6~80.4155.51080×820×85031525,10
WWZ-10/4-150 (air-cooled)9~120.4157.51080×870×85031525,10
WWZ-15/4-150 (air-cooled)13~150.415111250×990×85040325,10
WWZ-20/4-150 (air-cooled)16~200.415151250×990×85041525,10
WWZ-25/4-150 (air-cooled)21~250.415151250×990×85041532,12
WWZ-30/4-150 (water-cooled)26~300.415111600×1100×110051032,16
WWZ-40/4-150 (water-cooled)31~400.415151600×1100×110054032,16
WWZ-50/4-150 (water-cooled)41~500.41518.51600×1100×110056032,16
SWZ-60/4-150 (water-cooled)51~600.415221800×1100×1200705DN32,DN15
SWZ-70/4-150 (water-cooled)61~700.415221800×1100×1200725DN32,DN15
WWZ-80/4-150-II (water-cooled)71~800.41515×22500×1800×1100750DN32,DN15
WWZ-90/4-150-II (water-cooled)81~900.41515×22500×1800×1100780DN32,DN15
