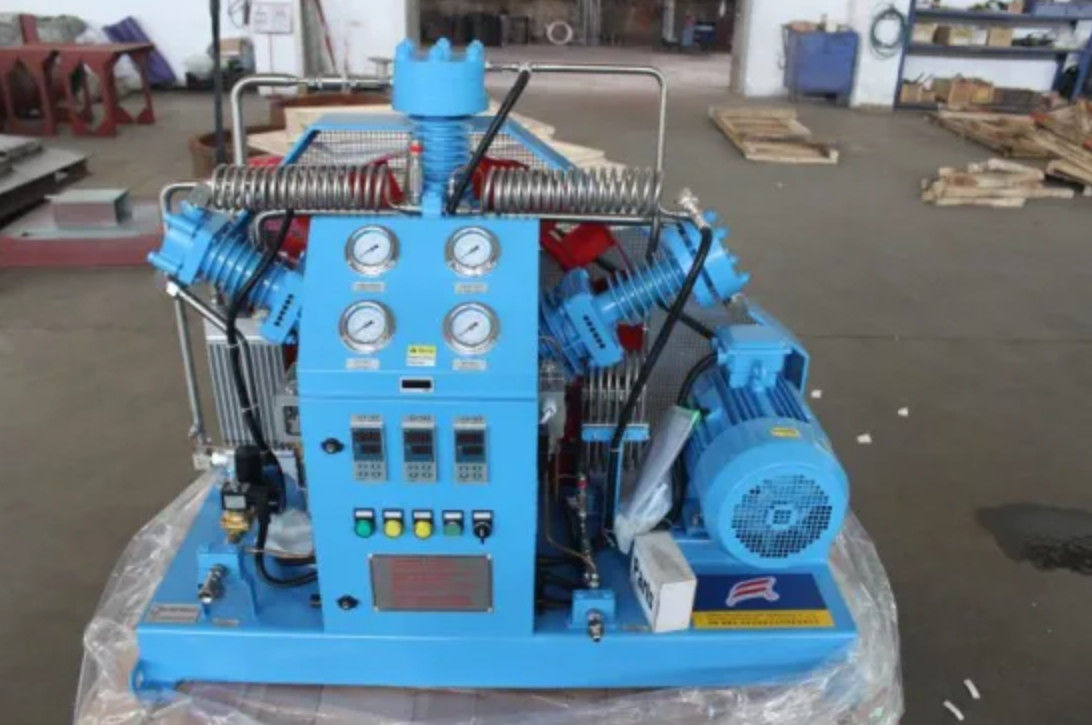

Medical 150bar Oil Free Oxygen Compressor 200rpm Water Cooling
  • Medical 150bar Oil Free Oxygen Compressor 200rpm Water Cooling

Medical 150bar Oil Free Oxygen Compressor 200rpm Water Cooling

Place of Origin china
Brand Name rotorcomp
Certification ISO,CE,GB
Model Number WWZ
Product Details
Weight:
420kgs
Type:
Piston
Voltage:
220V/380V/415V(customizable)
Lubrication Style:
Oil-free
Warranty:
15 Months After Delivery
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Mute:
Yes
Condition:
New
Configuration:
Stationary,Portable,Portable/Stationary
Power Source:
AC Power
Certification:
ISO,ISO9001,ISO9001 CE
Color:
Customized Color
Product Name:
Oxygen Cylinder Filling Compressor,oil Free Air Compressor
Pressure:
4 Stage
Cooling Method:
Air Cooling,Water Cooling
Application:
Medical,Cylinder Filling
Noise Level:
52 DB
Motor Power:
7.5-200KW
Working Pressure:
150bar
High Light:

150bar Oil Free Oxygen Compressor

,

200KW AC Oil Free Oxygen Compressor

,

Oil Free Oxygen Compressor 200rpm

Payment & Shipping Terms
Minimum Order Quantity
1UNIT
Packaging Details
standard package
Delivery Time
10-30 days
Payment Terms
L/C, T/T, Western Union
Supply Ability
1,000 per month
Product Description

Shanghai Rotorcomp supplying oxygen compressor is completely oil-free and does not use any lubricating oil.


The cylinder uses stainless steel and the piston ring is self-lubricating. All these ensure the cleanliness and pollution-free of oxygen.
The working speed of the compressor is very slow, usually 200-400 rpm, suitable for continuous working conditions for 24 hours.

Generally, according to the customer’s oxygen usage, our oxygen compressors have one-stage compression, two-stage compression, three-stage compression, four-stage compression, and five-stage compression in the form of cylinders, which are single-cylinder,



Thanks to their oil-free, dry-running and gas-tight design, Shanghai rotorcomp compressors are ideally suited for use in the compression of oxygen.

  • no gas contamination due to oil-free and dry-running compression
  • Safe operation through the use of special, oxygen-compatible materials
  • technically tight gas compressors during operation and at standstill

Features

  • Completely oil-free and dry-running piston compressor
  • Gas-tight design with integrated motor
  • Environmentally friendly because it is oil-free, gas-tight and efficient
  • Compressor leak rate < 0.0001 mbar l/s
  • Air-cooled
  • Motor powers from 3 to 44 kW
  • Rotary speed range 200 to 1700 1/min
  • Suction pressure max. 40 bar(abs)
  • Final discharge pressure max. 200 bar(abs)
  • Modular cylinder configuration with cylinder diameter up to 75 mm
  • Version with 1 cylinder for 1-stage compression
  • Maximum flow rate at atmospheric suction pressure approx. 150 Nm3/h
  • Booster-version flow rate max. approx. 50 Nm3/h
  • OEM block version available without pipework and instrumentation for integration in an OEM system
  • Very robust and long-lasting construction
  • Compact and foundation-free installation
  • Very quiet and hence suitable for installation directly at the workplace

Medical 150bar Oil Free Oxygen Compressor 200rpm Water Cooling 0

High Pressure oxygen compressor 150bar
Model Capacity inlet outlet Rated Dimension Weight in/outlet dia
Air flow pressure Pressure Power (L×W×H) (Kg)
Nm3/h MPa MPa KW mm   mm
VWZ-3/4-150 (air-cooled) 1~3 0.4 15 3 1080×820×850 240 20,10
VWZ-5/4-150 (air-cooled) 3~5 0.4 15 4 1080×820×850 270 20,10
WWZ-8/4-150 (air-cooled) 6~8 0.4 15 5.5 1080×820×850 315 25,10
WWZ-10/4-150 (air-cooled) 9~12 0.4 15 7.5 1080×870×850 315 25,10
WWZ-15/4-150 (air-cooled) 13~15 0.4 15 11 1250×990×850 403 25,10
WWZ-20/4-150 (air-cooled) 16~20 0.4 15 15 1250×990×850 415 25,10
WWZ-25/4-150 (air-cooled) 21~25 0.4 15 15 1250×990×850 415 32,12
WWZ-30/4-150 (water-cooled) 26~30 0.4 15 11 1600×1100×1100 510 32,16
WWZ-40/4-150 (water-cooled) 31~40 0.4 15 15 1600×1100×1100 540 32,16
WWZ-50/4-150 (water-cooled) 41~50 0.4 15 18.5 1600×1100×1100 560 32,16
SWZ-60/4-150 (water-cooled) 51~60 0.4 15 22 1800×1100×1200 705 DN32,DN15
SWZ-70/4-150 (water-cooled) 61~70 0.4 15 22 1800×1100×1200 725 DN32,DN15
WWZ-80/4-150-II (water-cooled) 71~80 0.4 15 15×2 2500×1800×1100 750 DN32,DN15
WWZ-90/4-150-II (water-cooled) 81~90 0.4 15 15×2 2500×1800×1100 780 DN32,DN15
SWZ-110/4-150-II(water-cooled) 101~110 0.4 15 22×2 2500×1800×1200 810 DN40,DN20
SWZ-130/4-150-II(water-cooled) 111~130 0.4 15 22×2 2500×1800×1200 850 DN40,DN20
SWZ-150/4-150-II(water-cooled) 131~150 0.4 15 22×2 2500×1800×1200 880 DN40,DN20
