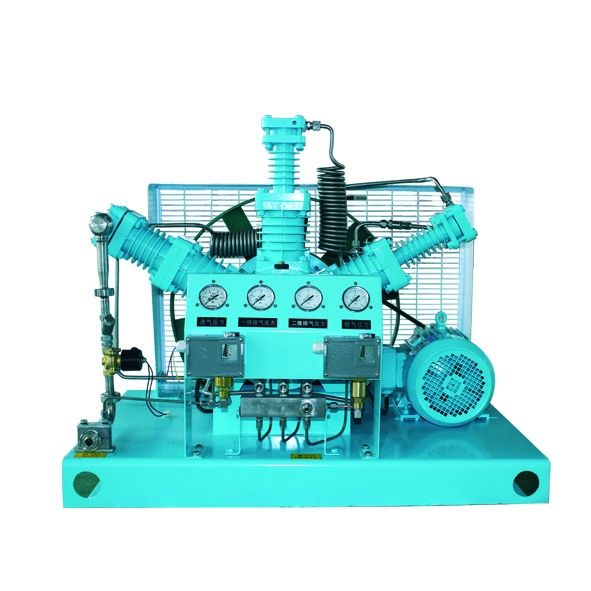

200bar Oil Free Industrial Oxygen Compressor Piston Type
| Place of Origin | china |
|---|---|
| Brand Name | rotorcomp |
| Certification | ISO,CE,GB |
| Model Number | WWZ |
| Minimum Order Quantity | 1UNIT |
| Price | 500-50,000 |
| Packaging Details | standard package |
| Delivery Time | 10-30 days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 1,000 per month |
Product Details
| Weight | 420kgs | Type | Piston |
|---|---|---|---|
| Voltage | 220V/380V/415V(customizable) | Lubrication Style | Oil-free |
| Warranty | 15 Months After Delivery | After-sales Service Provided | Engineers Available To Service Machinery Overseas |
| Mute | Yes | Condition | New |
| Configuration | Stationary,Portable,Portable/Stationary | Power Source | AC Power |
| Certification | ISO,ISO9001,ISO9001 CE | Color | Customized Color |
| Product Name | Oxygen Cylinder Filling Compressor,oil Free Air Compressor | Pressure | 4 Stage |
| Cooling Method | Air Cooling,Water Cooling | Application | Medical,Cylinder Filling |
| Noise Level | 52 DB | Motor Power | 7.5-200KW |
| Working Pressure | 150bar | ||
| High Light | 200bar Industrial Oxygen Compressor,20MPa Piston Industrial Oxygen Compressor,380V Industrial Oxygen Compressor |
||
Product Description
200bar Oil Free Industrial Oxygen Compressor Piston Type
Shanghai Rotorcomp supplying oxygen compressor is completely oil-free and does not use any lubricating oil.
The cylinder uses stainless steel and the piston ring is self-lubricating. All these ensure the cleanliness and pollution-free of oxygen.
The working speed of the compressor is very slow, usually 200-400 rpm, suitable for continuous working conditions for 24 hours.
Generally, according to the customer’s oxygen usage, our oxygen compressors have one-stage compression, two-stage compression, three-stage compression, four-stage compression, and five-stage compression in the form of cylinders, which are single-cylinder,
Thanks to their oil-free, dry-running and gas-tight design, Shanghai rotorcomp compressors are ideally suited for use in the compression of oxygen.
- no gas contamination due to oil-free and dry-running compression
- Safe operation through the use of special, oxygen-compatible materials
- technically tight gas compressors during operation and at standstill
Features
- Completely oil-free and dry-running piston compressor
- Gas-tight design with integrated motor
- Environmentally friendly because it is oil-free, gas-tight and efficient
- Compressor leak rate < 0.0001 mbar l/s
- Air-cooled
- Motor powers from 3 to 44 kW
- Rotary speed range 200 to 1700 1/min
- Suction pressure max. 40 bar(abs)
- Final discharge pressure max. 200 bar(abs)
- Modular cylinder configuration with cylinder diameter up to 75 mm
- Version with 1 cylinder for 1-stage compression
- Maximum flow rate at atmospheric suction pressure approx. 150 Nm3/h
- Booster-version flow rate max. approx. 50 Nm3/h
- OEM block version available without pipework and instrumentation for integration in an OEM system
- Very robust and long-lasting construction
- Compact and foundation-free installation
- Very quiet and hence suitable for installation directly at the workplace
| High Pressure oxygen compressor-200bar | |||||||
| Model | Capacity | inlet | outlet | Rated | Dimension | Weight | in/outlet dia |
| Air flow | pressure | Pressure | Power | (L×W×H) | (Kg) | ||
| Nm3/h | MPa | MPa | KW | mm | mm | ||
| WWZ-(3~5)/4-200 (air-cooled) | 3~5 | 0.4 | 20 | 4 | 1080×820×850 | 275 | 20,10 |
| WWZ-(6~8)/4-200 (air-cooled) | 6~8 | 0.4 | 20 | 5.5 | 1080×870×850 | 300 | 25,10 |
| WWZ-(9~12)/4-200 (air-cooled) | 9~12 | 0.4 | 20 | 7.5 | 1080×900×850 | 315 | 25,10 |
| WWZ-(13~15)/4-200 (air-cooled) | 13~15 | 0.4 | 20 | 11 | 1250×1020×850 | 400 | 25,10 |
| WWZ-(16~20)/4-200 (water-cooled) | 16~20 | 0.4 | 20 | 11 | 1300×1020×900 | 400 | 32,12 |
| WWZ-(21~25)/4-200 (water-cooled) | 21~25 | 0.4 | 20 | 15 | 1350×1020×900 | 420 | 32,12 |
| WWZ-30/4-200 (water-cooled) | 26~30 | 0.4 | 20 | 18.5 | 1600×1100×1100 | 560 | 32,16 |
| WWZ-40/4-200 (water-cooled) | 31~40 | 0.4 | 20 | 18.5 | 1600×1100×1100 | 560 | 32,16 |
| WWZ-50/4-200 (water-cooled) | 41~50 | 0.4 | 20 | 18.5 | 1600×1100×1100 | 560 | 32,16 |
| WWZ-60/4-200-II (water-cooled) | 51~60 | 0.4 | 20 | 18.5×2 | 2100×1650×1200 | 1100 | DN40,DN15 |
| WWZ-70/4-200-II (water-cooled) | 61~70 | 0.4 | 20 | 18.5×2 | 2100×1650×1200 | 1100 | DN40,DN15 |
| WWZ-80/4-200-II (water-cooled) | 71~80 | 0.4 | 20 | 18.5×2 | 2100×1650×1200 | 1100 | DN40,DN15 |
| WWZ-90/4-200-II (water-cooled) | 81~90 | 0.4 | 20 | 18.5×2 | 2100×1650×1200 | 1100 | DN40,DN15 |
